LT-P08 Digital Multi-Beam Radar + LT-UJ830Q Omni-Directional UAV Jammer (Optional)

Product Introduction:

The LT-P08 two-dimensional three-coordinate phased array radar is a low-altitudesurveillance and reconnaissance device operating in the X-band and capable of detectinglow, small and slow targets within a range of 25 kilometers. This radar uses the ActivePhased Array (AESA)system. Digital multi-beam scanning is used in the elevationdimension, while mechanical scanning is used in the azimuth dimension to achieve 360azimuth coverage.The entire machine is of modular and solidstate design to ensureequipment reliability.

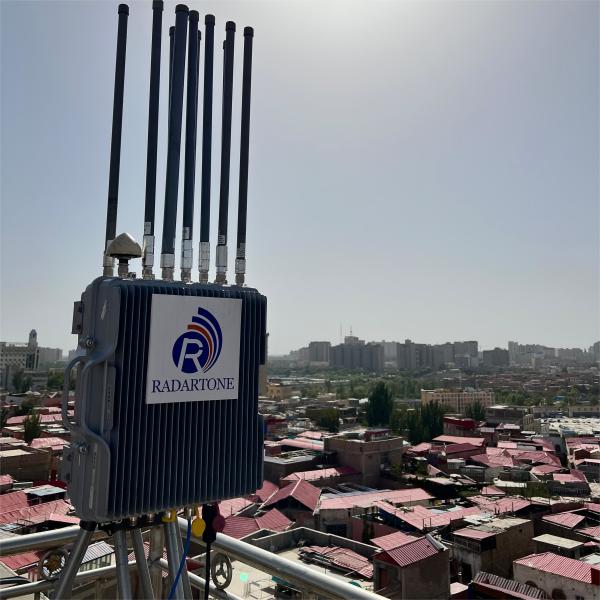

The omnidirectional multi-band jamming antenna system adopts multiple cylindrical spiral antennas, and its transmission frequency band can almost cover the communication frequency band of UAVs in the market, including 3 flat panel antennas and 1 PCB antenna. It can effectively jam targets within the operating range of the antenna, and the jamming range is determined by the anti-jamming capability of the UAVs. This jammer adopts an omnidirectional jamming system, which can effectively maintain the airspace security of key areas.

Product Features:

1, Strong anti-environment clutter resistance.
2, With pitch adjustment device, it can adjust the angle of the antenna, which is applicable to a variety of different geographical conditions.
3, Solves the technical problem of selecting multiple targets for tracking and target recognition in the background noise environment.

4, The jammer adopts omnidirectional jamming system.
5, The pitch transmission section uses a worm gear transmission which is self-locking in the event of a power failure.
6, The internal industrial grade (military grade optional) embedded intelligent control system can realize the stable control of the turntable.
