LT-P08 Digital Multi-Beam Radar + LT-A2 TARGET INTELLIGENT LINKAGE TRACKING MULTI SPECTRAL OPTOELECTRONICS (Optional)

Product Introduction:

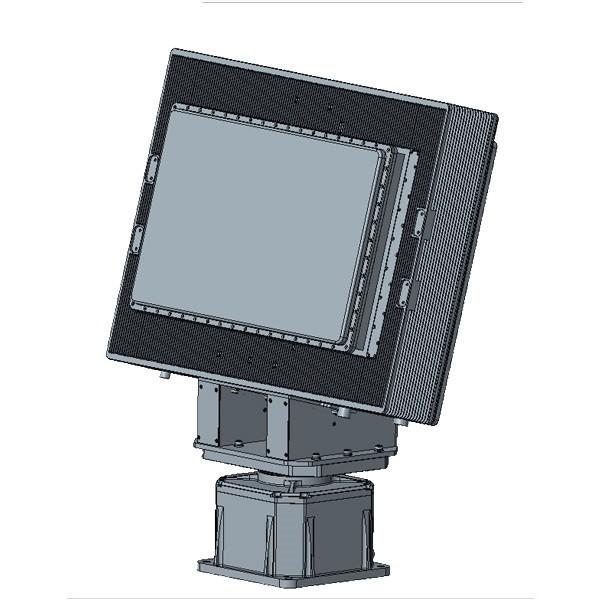

The LT-P08 two-dimensional three-coordinate phased array radar is a low-altitude surveillance and reconnaissance device operating in the X-band and capable of detecting low, small and slow targets within a range of 25 kilometers. This radar uses the Active Phased Array (AESA) system. Digital multi-beam scanning is used in the elevation dimension, while mechanical scanning is used in the azimuth dimension to achieve 360° azimuth coverage. The entire machine is of modular and solid-state design to ensure equipment reliability.

The LT-A2 has the flexibility and maneuverability to target low-altitude flying targets (UAVs, chemical balloons, bionic birds) in unlimited positions. 360° full-field real-time scanning, lock tracking, detection and warning. Integrated with uncooled infrared thermal imager, visible light camera, laser range finder and intelligent algorithm module, it can achieve unmanned continuous monitoring work day and night. At the same time, it adopts infrared thermal imaging night vision technology, which has good concealment, strong ability to penetrate haze, and is not limited by light sources. It can seamlessly adapt to on-board terminal equipment such as linked radar systems, radio detection systems and full frequency jamming systems.

Product Features:

1, Strong anti-environment clutter resistance.

2, With pitch adjustment device, it can adjust the angle of the antenna, which is applicable to a variety of different geographical conditions.

3, Solves the technical problem of selecting multiple targets for tracking and target recognition in the background noise environment.

4, The front-end device control software can be upgraded online via the network, making future maintenance much easier.

5, 3D positioning function, capable of zooming in and click to centering when selecting boxes, facilitating device operation.

6, Turntable re-power the PTZ self-test can be returned to the user-set zero position or the position of power failure, support for remote restart function.

7, The universal variable speed turntable achieves all-round blind angle monitoring and high-precision positioning.

8, Professional design of the shell, beautiful, lightweight, sturdy, high temperature resistant, corrosion-resistant, waterproof, and acid rain resistant.

9, Equipped with marching lock, the vehicle can be locked during rapid movement; At the same time, it can be equipped with a stable and shock-absorbing flange mounting base, which efficiently reduces vibration and protects the stability of the equipment.

10, Equipped with intelligent auto-linking module, auto-tracking module, auto-detection module , and capable of providing feedback on airborne target information.
