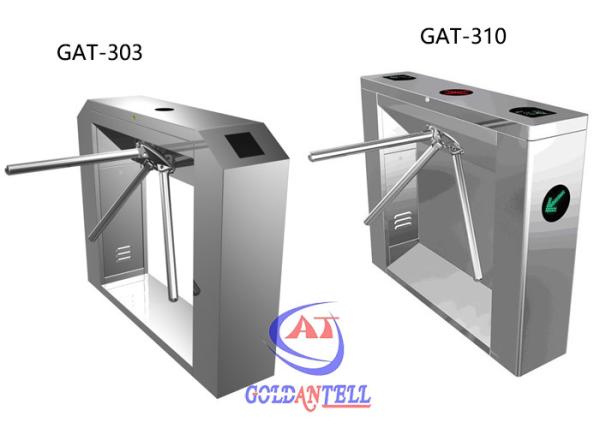

Security Semi automatic Tripod Barrier Gate for building , Three Metal Rods

Technical parameters

1 . Housing material: domestic standard 304# stainless steel

2 . Working voltage:AC220±10%V 50±10%HZ

3 . Working movement :DC24V solenoid valve

4 . Size:1200mm (L) * 280mm (W) * 980mm (H)

5 . Arm width:510mm Passage width:≤600 mm

6 . Direction: single or bi-directional (optional)

7 . Pass speed: 30 persons/min

8 . Thick of steel :1.5mm or custom desgin

9 . Emergence:When power off, arm open automatically

10 . Transmission:All-electric mechanical

11 . Communication interface: standard RS485 interface, distance ≤1200m

Brief introduction

Made of 304 stainless steel,Goldantell tripod turnstile with nice and elegant shape,antirust,durable, Resistant to external damage.Rectangular box and brake lever to be a passage,provide orderly passage to people. Prevent illegal in and out.Arms off in emergency case.

This item is widely used in station,pier,subway,factory,office building,intelligent community,hotel,clubs,enterprise,etc.

Package

crate package and closed wooden package

Features

5 . The electrical interface connected with various kinds of reader and writer equipment
6 . Direction-guide lights in the turnstile to tell you whether the direction to go or not
7 . All the functions realized in one integration machine and controlled and managed by the computer in the far distance
8 . Bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board
9 . The number of the persons passed by can be counted automatically which can also be displayed in LED
