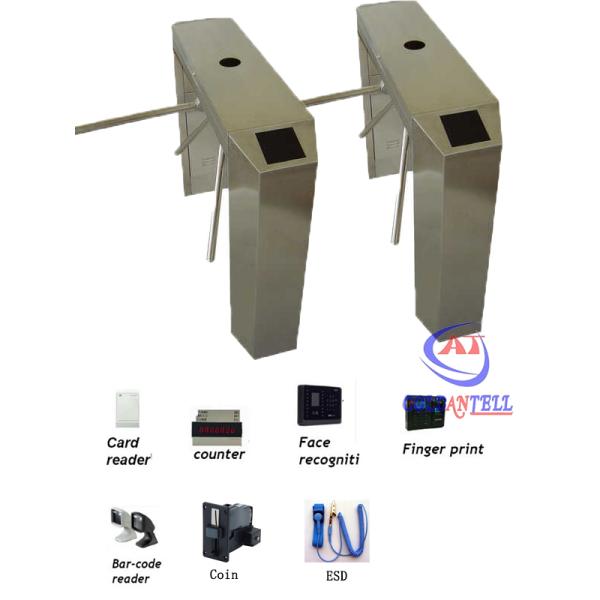

RFID passage entrance Tripod Turnstile With Counter for Factory / tourism / building lobby
RFID passage entrance Tripod Turnstile With Counter for Factory / tourism / building lobby
Specifications
Brand Name :
Goldantell
Model Number :
GAT-313
Certification :
CE/ROHS/FCC/IS9001
Place of Origin :
Guangdong,China
MOQ :
1pc
Price :
negotiation
Payment Terms :
T/T ,western Union,LC,Paypal, L/C
Supply Ability :
2,000pcs per month
Delivery Time :
7 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with export wooden case for outer packing
material :
domestic standard 304# stainless steel
Compatible :
RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,Bar code System,ESD Tester Access Control, remote button
Time of opening/closing :
0.2 second
Passage width :
600mm
Communication port :
RS485 ,TCP/IP
Application :
Indoor&outdoor
Size :
1200mm (L) * 280mm (W) * 980mm (H)
Input interface :
+12V level signal or pulse width>100ms 12V pulscurrent>10m
Support force of arm :
60kg
Description

RFID passage entrance Tripod Turnstile With Counter for Factory / tourism / building lobby


Specifications:

Item

GAT-313

Type

Half height tripod turnstile

Working voltage:

AC220±10%V 50±10%HZ(110V)

Time of opening

0.2second

Passage width

600mm

Emergence:

When power off, arm open automatically

Transit speed

30-40 people/minute

Input interface:

RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,
Bar code System,ESD Tester Access Control, remote button

Communication interface

RS485/232

Direction:

single or bi-directional (optional)

Normal running life:

Normal running life: 3 million

Warranty

1 years

  • stainless steel thickness of the cabinet: customized within 1.2~2.0mm.
  • Material of the cabinet: 304 / 316 grade stainless steel.
  • Surface finish of the cabinet: satin finish / polishing / anti-fingerprint/frosted finish / electroplating / baking finish.


Function:

1. The gate is Bidirectional, according the infrared sensing to enter and exit the passageways.
2. Turnstile can setting the working condition by press the button of main control board.
3. Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed)
4. The turnstile will lock when somebody enter the gate illegal, Tailgating or break into negative direction gate.
5. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles)
6. Can manager and long-range control the turnstile directly by managing the computer5. Before received the open signal, the turnstile will lock automatically
7. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.
8.The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on
9. Automatic Reset Functions: after you swap the card, during the specific time (the system is
Extended function:

1.LED counting function

2.Box house can lengthen, swing arm lengthen

3.Infrared logical judgment function (you can choose 8 pairs or 10 pairs Infrared)
4.Voice Prompt Function

5. Normally open or closed can be adjust to meet the requirements of the different place.
6.Sound and light alarm prompt functions

7.Stroboscopic lamp prompt function: site administrator can find the turnstile problem quickly and accurately


Application:

  • Supermarket
  • Subway Station, Bus Station
  • Tourism
  • Bank
  • Theater
  • Swimming Hall
  • Fitness Gym
  • Residence Area
  • supermarket

Control System:

RFID passage entrance Tripod Turnstile With Counter for Factory / tourism / building lobby
