Fast pass Tripod Turnstile Gate , bidirectional Turnstile Security Products long range control
Fast pass Tripod Turnstile Gate , bidirectional Turnstile Security Products long range control
Specifications
Brand Name :
Goldantell
Model Number :
GAT-321
Certification :
CE/ROHS/FCC/IS9001
Place of Origin :
Guangdong,China
MOQ :
1pc
Price :
negotiation
Payment Terms :
T/T ,western Union,LC,Paypal, L/C
Supply Ability :
2,000pcs per month
Delivery Time :
7 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with export wooden case for outer packing
Motor :
DC24V solenoid valve
Housing material :
domestic standard 304# stainless steel
Compatible :
RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,Bar code System,ESD Tester Access Control, remote button
Time of opening/closing :
0.2 second
Passage width :
Passage width: ≤600 mm
Type :
Half height tripod turnstile
Communication port :
RS485 ,TCP/IP
Working voltage: :
AC220±10%V 50±10%HZ
Pass speed :
30 persons/min
Emergence :
When power off, arm open automatically
Description


Fast pass Tripod Turnstile Gate , bidirectional Turnstile Security Products long range control

Specifications:

Item

GAT-321

Working voltage:

AC220±10%V 50±10%HZ

Time of opening

0.2second

Passage width

550mm

Reset time after break down:

10 seconds

Transit speed

30-40 people/minute

Input interface:

RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,
Bar code System,ESD Tester Access Control, remote button

Packaging Details

Packed in carton firstly,and then reinforced with export wooden case for outer packing

Communication interface

RS485/232

Direction:

single or bi-directional (optional)

Communication interface

standard RS485 interface, distance ≤1200m

Trade terms

EX-W,FOB,CIF,DDU(select area)


Function:

1. The gate is Bidirectional, according the infrared sensing to enter and exit the passageways.

2. Turnstile can setting the working condition by press the button of main control board.

3. Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed)

4. The turnstile will lock when somebody enter the gate illegal, Tailgating or break into negative direction gate.

5. Before received the open signal, the turnstile will lock automatically

6. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.

7. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs

8.The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on

Extended function:


1

LED counting function


2

Box house can lengthen, swing arm lengthen
3


Infrared logical judgment function (you can choose 8 pairs or 10 pairs Infrared)

4


Normally open or closed can be adjust to meet the requirements of the different place.
Sound and light alarm prompt functions

5


Stroboscopic lamp prompt function: site administrator can find the turnstile problem quickly and accurately


6

Voice Prompt Function



Appearance, Dimension, Material & Surface Finish:

Appearance: customized according to customer’s requirement
stainless steel thickness of the cabinet: customized within 1.2~2.0mm.
Material of the cabinet: 304 / 316 grade stainless steel.
Surface finish of the cabinet: satin finish / polishing / anti-fingerprint/frosted finish / electroplating / baking finish.

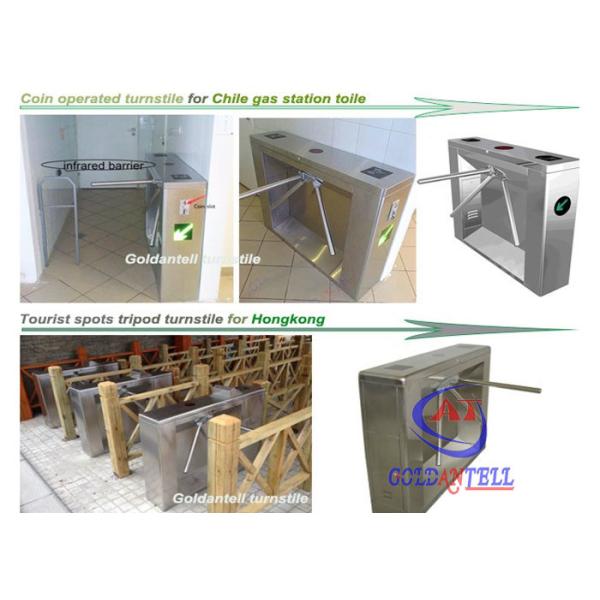

Items Show:
Fast pass Tripod Turnstile Gate , bidirectional Turnstile Security Products long range control


Contact Way:

For convenient talk ,you can reach me by below :

Contact person:Cherry Mao
Skype:goldantell03
Whatsapp:86+15815817112
E-mail: sales03@cctvgat.com
