Specifications
Brand Name :
Goldantell
Model Number :
GAT-ESD305
Certification :
CE certificated
Place of Origin :
Guangdong,China
MOQ :
Negotiable
Price :
negotiation
Payment Terms :
T/T ,western Union,LC,Paypal
Supply Ability :
2,000pcs per month
Delivery Time :
3-6 working days after received your payment
Packaging Details :
wooden case+carton box
Product name :
ESD Turnstile System
Monitor :
8 inches
Material :
304 stainless steel
Accessories :
Wrist-strap, right and left shoe
Control software :
yes
Sample :
available
Working environment :
Indoor / Outdoor ( Shelter),-10-50℃
Application :
Factory / Lab
Type :
With built in computer and software
Customized :
OEM / ODM
Description

ESD Turnstile System With Builit in 8 Inch Computer Source Human Body Statics Human Boday ESD Turnstile

Turnstile Gate Parameter

1 Power AC220C±10V,50HZ
2 Operating temperature -15°C--75°C
3 Relative Humidity ≤95%, No Condensation
4 Arm length 51cm
5 Passing Speed 30~40 persons/min(IC Card)
6 Motor 0.5NM/24V(Fully Automatic)
7 Input Connection +12V Level Signal or Pulse Wide>100ms DC12V
8 Communication Connection RS485 Communication Module Standard.
9 Material SUS304,thickness is no less than 1.3mm
10 Protection Grade IP54
11 Colour SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional)
12 Operation Place Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control

GAT-ESD305 ESD Tester Parameter

1 Instrument Dimensions 8 inch LCD monitor:
2 pedal size (W) 400mmx (L) 420mmx (H) 20mm
3 Operating voltage input AC220V output DC12V
4 Working hours unlimited
5 Environmental conditions Humidity: 0%~90%, Temperature: 5C°~ 40°C
5 Software

Built in computer installed with time attendance software

ESD detection Descriptions
1. Item model: GAT-ESD305
2. It can stand and work alone, or be built into different styles of Channel turnstile gates like a Swing barrier, Flap barrier or tripod door.
3. A 8 inch LCD monitor, display all info of users, like photo, name, card ID,depart, entry time,etc.

4. Software: available.

5. Test Range and Accuracy (The upper and lower limit values of the test range can be adjusted according to customer requirements)

Left shoe setting 0.01-1000MΩ,Accuracy ±5%

Right shoe setting 0.01-1000MΩ,Accuracy ±5%

Wrist-strap setting 0.1-35MΩ,Accuracy ±5%

6. Application: This product can work with electric door or intelligent turnstile gates in the air shower. It meets the standards of other countries.
7. Automatically store records and ESD test data (except client mode), recording information up to 100,000 or more.

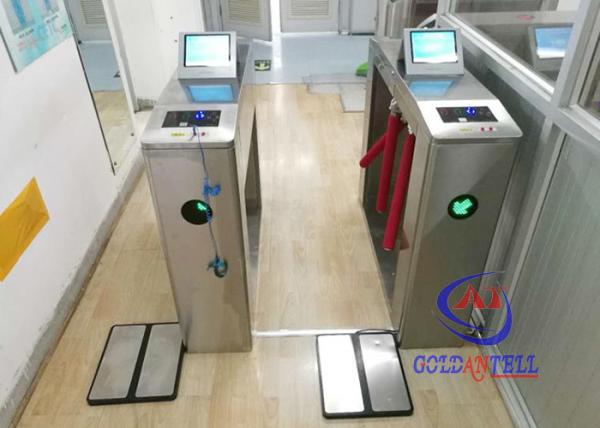

ESD Turnstile Product Photos

ESD Turnstile System With Builit in 8 Inch Computer Source Human Body Statics Human Boday ESD Turnstile

ESD Turnstile System With Builit in 8 Inch Computer Source Human Body Statics Human Boday ESD Turnstile

ESD Turnstile System With Builit in 8 Inch Computer Source Human Body Statics Human Boday ESD Turnstile

ESD Turnstile System With Builit in 8 Inch Computer Source Human Body Statics Human Boday ESD Turnstile

Working mode Instruction

① Simultaneously detect hands and feet. This mode is suitable for line operators;
② Only detect the feet, this mode is suitable for those who need to enter the workshop, but do not directly contact the product such as QC, warehouse manager, etc.;
③ Only detect the hand, this mode is suitable for assembly line or logistics;
④ Free test card, applicable to the boss/customer inspection workshop, passing directly via swiping card.

ESD Turnstile System With Builit in 8 Inch Computer Source Human Body Statics Human Boday ESD Turnstile

FAQ:

1- Are you factory or trading company?

Goldantell:We are a source factory with 14 years experiences in this line.

2- Can you do OEM service?

Goldantell:Sure,OEM and ODM are our strengths.

3- Can I purchase the ESD system without gate?

Goldantell:Sure,you can purchase ESD system only,there are 2 kinds options:

01-to mounted on wall type

02-the ESD system built in a 1 meter height vertical box type.

4- What is the leading time?

Goldantell:Our leading time for samples 3-5 working days,for bulk order like 100-500 sets,

about 20-35 working days.

5- What is the delivery way?

Goldantell:By express,by air or by sea.
