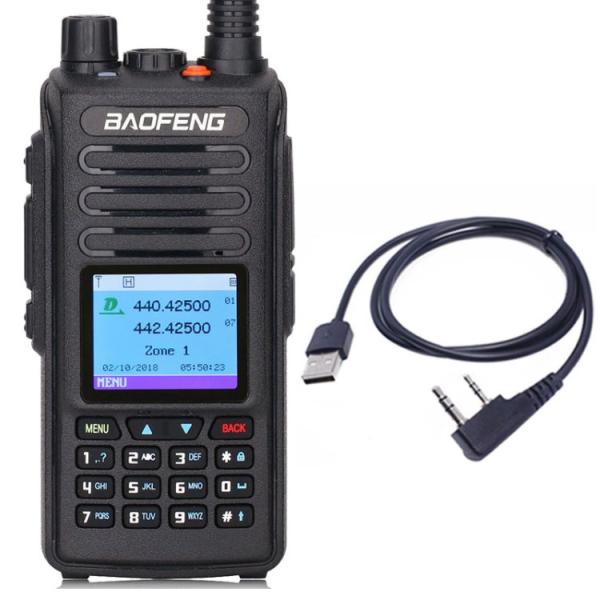

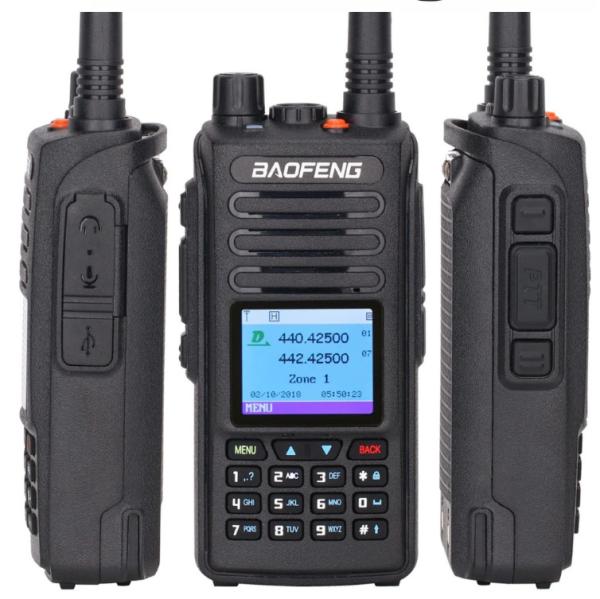

Baofeng DM-1702 5W Dual Band DMR Walkie Talkie With GPS Function
Baofeng DM-1702 5W Dual Band DMR Walkie Talkie With GPS Function
Baofeng DM-1702 5W Dual Band DMR Walkie Talkie With GPS Function
Baofeng DM-1702 5W Dual Band DMR Walkie Talkie With GPS Function
Specifications
Brand Name :
baofeng
Model Number :
DM-1702
Certification :
CE FCC Rohs Certificate
Place of Origin :
China
MOQ :
10pcs
Price :
USD58.00 /piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs / year
Delivery Time :
3-5 days
Packaging Details :
carton box
Type :
Handheld
Dimensions :
133x62x36mm
Storage channel :
1024
Talk range :
5-10km
Frequency range :
136-174MHz 400-470MHz
Output power :
5W
Color :
Black
Battery capacity :
1800mAh
Warranty :
12 Months
Operating voltage :
DC7.4V
Product name :
long range walkie talkie A8
Channel spacing :
12.5/25kHz
Function :
Walkie Talkie Intercom Interphone
Applications :
Security,Logistics,Training,business,Christmas gift
Name :
DMR Radio
Antenna impedance :
50 Ω
Battery life :
About 12 Hours
Description

BaoFeng handheld long range two-way radios dual band dmr walkie talkie DM-1702 with GPS function

Main Features


1. Compatible with MOTOTRBO Hytera Tier II Radio and its repeater perfectly
2. Dual Band VHF 137-174MHz & UHF 400-470MHz
3. GPS Function:Support longitude & latitude position
4. Analogue & Digital Mode
5. 1024 Storage Channel
6. Dual Time Slot, Tier I &II
7. Group Call/Private call
8. Dual Display
9. VOX Function
10. Frequency Step:2.5/5/6.25/10/12.5/20/25/k
11. Scan
12. 16 groups color code seletable
13. 2200mAh 7.4V 16.28Wh High Capacity Li-ion battery Pack
14. SMS message
15. Support manually programming and PC programming
16. High/Medium/Low Power seletable
17. Frequency/Channel Mode Selectable


General
Output power Max 5watts
Operating Voltage DC 7.4V
Frequency Stability ±1.0ppm
Operating Temperature -30°c ~ 60°c
Battery Capacity 2200mAh/16.28wh
Weight about 274g(with battery & antenna)
Warranty 12 Months
Antenna Impedance 50Ω
Frequency Range VHF 136-174MHz/UHF 400-470MHzDescription

Transmitting
Output Power 1W/5W
Digital Tier i&ii
Adjacent channel ≤-65dB/≤-60dB
Modulation Distortion ≤5%
Digital Protocol etsi-ts102 361-1,-2,-3
Vocoder type AMBE+2TM

Receiving
Analog sensitivity -122dBm (12dB SINAD)
Digital sensitivity -120dBm (BER ≤5%)
Audio Power 1W
Audio Distortion <10%
Inter-mediation ≥62dB / ≥ 58dB
Adjacent channel selectivity ≥65dB /≥60dB
Receiving current ≤380mA
PM Noise ≥ 45dB*25KHz; ≥ 40dB*12.5KHz

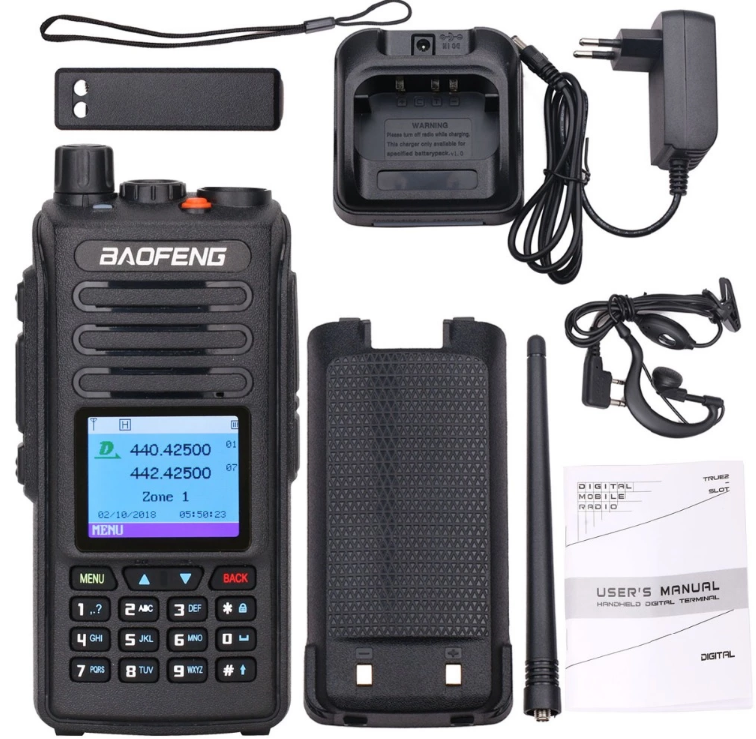

Standard Package Content


Baofeng DM-1702A DMR Digital Radio
7.4V 2200mAh Li-ion Battery
Antenna
Desktop Charger
Plug Adapter
Belt Clip
Hand Strap
User Manual

Baofeng DM-1702 5W Dual Band DMR Walkie Talkie With GPS Function

Baofeng DM-1702 5W Dual Band DMR Walkie Talkie With GPS Function
