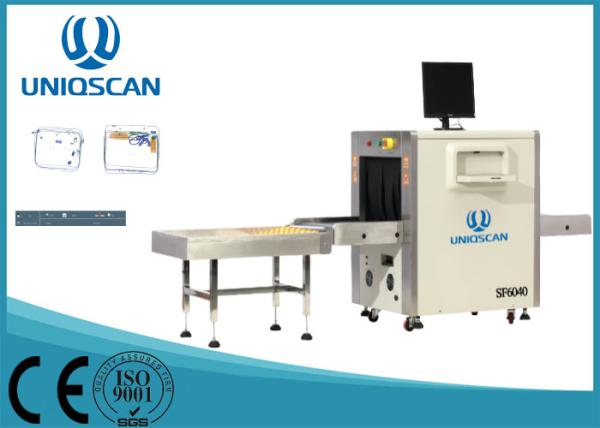

40mm Steel Plate Penetration Safety X Ray Luggage Scanner For Security Checking
40mm Steel Plate Penetration Safety X Ray Luggage Scanner For Security Checking
Specifications
Brand Name :
Uniqscan
Model Number :
SF6040
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 UNIT
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
in one week
Packaging Details :
Wooden box
Product Name: :
baggage scanner machine
Tunnel Size : :
600 (W) ×400 (H) mm
Conveyor Max Load: :
150kg
Anode Voltage: :
140~160KV
Image Max Resolution: :
1024 * 1280 pixel
Image Grey Level: :
4096
Beam Angle: :
80°
Power consumption: :
1.0KW (Max)
Description

40mm steel plate penetration X Ray Luggage Scanner for security checking

General Specifications:

Tunnel Size: 600(W)*400H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 150kgs
Wire Resolution: 40AWG
Spatial resolution: horizontal: 1.0mm, vertical:1.0mm
Penetration: 40mm Steel
Film Safety: Guarantee ISO1600 Film
X-ray Leakage: <1μGy/h (at a distance of 5cm From external housing)
Pass rate: 720 bags per hour
Beam direction: Upward
Generate angle: 80 degree
Anode Voltage: 140-160Kv
Anode power: 0.7 to 1.2mA
Cooling / Duty Cycle: Oil Cooling /100%
X-ray Sensor: L-Shaped Photodiode Array (mono-energetic), 12bit Deep
Monitor: High Resolution Color, LCD Accord, 19 inch
Image Processing:

Edge enhancement, image strengthening, image lightening,

reducing darkening, image returning, image retrieval.
Image Grey Level: 4096
Image Max Resolution: 1024 * 1280 pixel
Image Processing: 24bit for processing real time
Image storage: Storage 60000 pictures in real time
Zoom: max 16 Times Enlarge, Whole screen continuous observation
Operation temperature/Humidity: 0℃-45℃/20%-95%(non-condensing)
Storage Temperature/Humidity: -20℃-60℃/20%-95%(non-condensing)
Operation Power: 220VAC(±10%)50±3Hz
Power Consumption: 1.8 KW (max), 0.3KW(working)
Noise: <60db

Image Display:

  • 19’’ High Resolution LCD Monitor
  • Display Resolution: 1280*1024;24 bit/pixel Color
  • Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level
  • Image storage: 100,000 pictures in real time (can be customized)
  • Zoom: 64 Times Enlarge, Whole screen continuous observation
  • Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color
  • Edge enhancement: Object contour edge is more distinct
  • Super image enhancement: Image detail is more distinct
  • High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
  • Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
  • Brightening/dimming: Increase/Decrease brightness of image
  • Image recurrence: Display the previous twenty images and process any one of them
  • Image restoration: Restore image to initial status
  • Assist to detect drug and explosive powder

Special features:

  • Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
  • Safety ray: Ray is transmitted under automatic control, avoiding the error
  • One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
  • Eagle eye: Capable of expediently observing the magnifying area
  • Self-diagnosis function: Give message automatically if malfunction for prompt maintenanceTIP and training software

Environment Specifications:

  • Operating temperature/humidity: 0℃ ~ 45℃/20% ~ 95% (Non-condensing)
  • Storage temperature/humidity: -20℃ ~ 60℃/20% ~ 95% (Non-condensing)

40mm Steel Plate Penetration Safety X Ray Luggage Scanner For Security Checking
