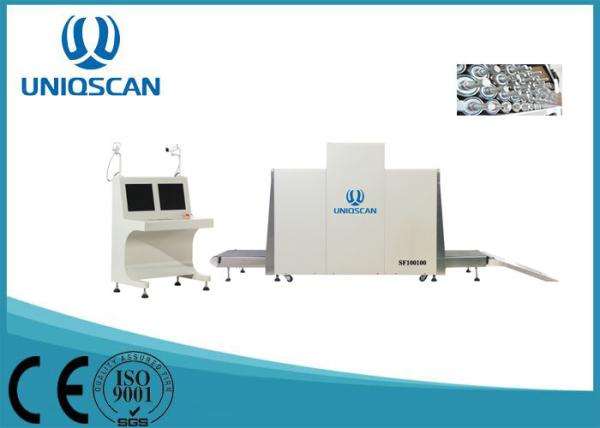

Luggage Airport Security Baggage Scanners , 24 Bit Color X Ray Baggage Inspection System
Luggage Airport Security Baggage Scanners , 24 Bit Color X Ray Baggage Inspection System
Luggage Airport Security Baggage Scanners , 24 Bit Color X Ray Baggage Inspection System
Luggage Airport Security Baggage Scanners , 24 Bit Color X Ray Baggage Inspection System
Luggage Airport Security Baggage Scanners , 24 Bit Color X Ray Baggage Inspection System
Luggage Airport Security Baggage Scanners , 24 Bit Color X Ray Baggage Inspection System
Specifications
Brand Name :
Uniqscan
Model Number :
SF100100
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 UNIT
Price :
EXW 1800 USD/UNIT
Payment Terms :
T/T
Supply Ability :
50000 pcs per month
Delivery Time :
in one week
Packaging Details :
Wooden box
Product Name :
security luggage scanner
Wire Resolution :
38AWG
Conveyor Max Load :
1000 kg
Film Safety :
Guarantee ISO1600 Film
Conveyor Speed :
0.22m/s
Spatial Resolution :
1.0mm Horizontal and Vertical
Color :
24 bit
Noise Level :
less than 58
Description

Luggage Airport Security Baggage Scanners , 24 Bit Color X Ray Baggage Inspection System

Technical Specifications

Tunnel Size : 1000(W)×1000(H)mm

Power Requirement: 220V AC (±10%) 50±3Hz

Power consumption: 1.0KW (Max)

Noise level: <58dB

Conveyor Speed: 0.22m/s

X-Ray Generator Specifications

Dual view: two X-ray generators

Voltage: 150-200KV (Adjustable)

Tube Current: 1.0 ~1.5mA (Adjustable)

Cooling: Sealed oil bath with forced air

Image Display

2* 19’’ High Resolution LCD Monitor

Display Resolution: 1280*1024;24 bit/pixel Color, dual view image

Contrast Sensitivity: 24 Visible Levels,4096 Gray Level

Image storage: 100,000 pictures in real time (can be customized)

Zoom: 64 Times Enlarge, Whole screen continuous observation

Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color

Threat image projection (TIP), assist to detect drug and explosive powder

Edge enhancement: Object contour edge is more distinct

Special features:

Japan HAMMATSU detecting sensor, INTERRoll electronic Roller

Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time

Safety ray: Ray is transmitted under automatic control, avoiding the error

One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient

Eagle eye: Capable of expediently observing the magnifying area

Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
