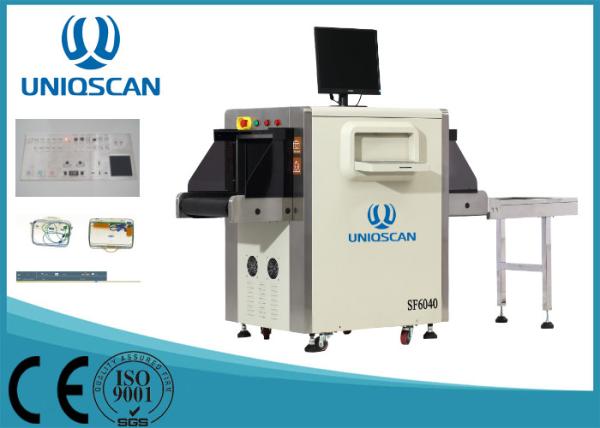

15kgs Conveyor Load X-Ray Inspection Machine For Hotel Handbag Scanning

Advantages:

• With equipment to save electricity
• Famous brand spare parts:Perelman brand generator from the USA;
• Amaterasu brand detector from Japan;Inter roll brand Roller from German;
• Protective cover on lead curtain to avoid lead pollution;
• Sound and light alarm
• Local network supported

General Specifications:

• Tunnel Size : 600 (W) ×400 (H) mm
• Power Requirement: 220V AC (±10%) 50±3Hz
• Power consumption: 1.0KW (Max)
• Noise level: <60dB
• Conveyor Speed: 0.22m/s
• Conveyor Max Load: 150 kg
• Wire Resolution: 40AWG
• Spatial Resolution: 1.0mm Horizontal and Vertical
• Steel Penetration: 40mm
• Single inspection dosage: < 1.0μGy
• Leakage radiation: <0.1µGy/h
• Film Safety: Guarantee ISO1600 Film

X-Ray Generator Specifications:

• Tube Current:0.7~1.2mA
• Anode Voltage:140~160KV
• Cooling: Sealed oil bath with forced air
• Duty Cycle: Rated for 100％Duty Cycle
• Beam Direction: Upward
• Beam Angle: 80°
• Detector: L-shaped Array

Image Display:

• 19’’ High Resolution LCD Monitor
• Display Resolution: 1280*1024;24 bit/pixel Color
• Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level
• Image storage: 100,000 pictures in real time (can be customized)
• Zoom: 64 Times Enlarge, Whole screen continuous observation
• Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color
• Edge enhancement: Object contour edge is more distinct
• Super image enhancement: Image detail is more distinct
• High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
• Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
• Brightening/dimming: Increase/Decrease brightness of image
• Image recurrence: Display the previous twenty images and process any one of them
• Image restoration: Restore image to initial status
• Assist to detect drug and explosive powder

Special features:

• Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
• Safety ray: Ray is transmitted under automatic control, avoiding the error
• One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
• Eagle eye: Capable of expediently observing the magnifying area
• Self-diagnosis function: Give message automatically if malfunction for prompt maintenanceTIP and training software

Environment Specifications:

• Operating temperature/humidity: 0℃ ~ 45℃/20% ~ 95% (Non-condensing)
• Storage temperature/humidity: -20℃ ~ 60℃/20% ~ 95% (Non-condensing)

Application:

luggage screening scannner Excellent system for airport, train station, bus station as well as security-sensitive corporate environments

• Commercial buildings;
• Factories(to find needle in clothing, shoes, bags)
• Courthouses;
• Embassies;
• Government buildings
• Military installations
• Prisons
• Mail Rooms
• Hotels
• Schools
• Convention centers
• Security checkpoints
