High Sensitivity 24 Zones Door Frame Metal Detector With 7 Inch LCD Screen
High Sensitivity 24 Zones Door Frame Metal Detector With 7 Inch LCD Screen
High Sensitivity 24 Zones Door Frame Metal Detector With 7 Inch LCD Screen
High Sensitivity 24 Zones Door Frame Metal Detector With 7 Inch LCD Screen
High Sensitivity 24 Zones Door Frame Metal Detector With 7 Inch LCD Screen
High Sensitivity 24 Zones Door Frame Metal Detector With 7 Inch LCD Screen
High Sensitivity 24 Zones Door Frame Metal Detector With 7 Inch LCD Screen
High Sensitivity 24 Zones Door Frame Metal Detector With 7 Inch LCD Screen
High Sensitivity 24 Zones Door Frame Metal Detector With 7 Inch LCD Screen
High Sensitivity 24 Zones Door Frame Metal Detector With 7 Inch LCD Screen
Specifications
Brand Name :
uniqscan
Model Number :
UB700
Certification :
CE , ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
3-7days after payment
Delivery Time :
1500 pcs/month
Packaging Details :
packing : door panels: 2290*560*190mm *1ctn , control unit: 760*380*260m*1ctn
Product Name: :
walk through gate
Sensitivity : :
0 to 300 sensitivity
Display way: :
7 inch LCD screen
Sound & LED alarm: :
Both Side LED indicator
Power supply: :
AC100V-240V
Detector zone : :
24 zones
Operation Temperature: :
-20℃--+50℃
Warranty: :
2 years
Description

24 zones high sensitivity Door Frame Metal Detector with 7 inch LCD screen

Parameters:

  • Power Supply:AC100V-240V
  • Working temperature:-20℃--+50℃
  • Working Frequency :4KHZ—8KHZ
  • Standard External size: 2200mm(H)X800mm(W)X580mm(D)
  • Standard Internal size: 2010mm(H)X700mm(W)X500mm(D)
  • Package size for door panels: 2260*650*260mm *1ctn
  • Package size for control unit: 780*390*250 mm*1ctn
  • Gross weight: 65KG

Characteristic & Function:

  • 24 over-lapping detecting zones, Simultaneous alarm from multi- zones;
  • Sensitivity adjustable: Each zone has 300 sensitivity level, 0-299 adjustable
  • 7 inch LCD screen
  • Infrared remote control
  • Sound & LED alarm: Both Side LED indicator ,easily show where the metal is.
  • Automatically count passengers and alarm times
  • Alarm strength indicator on control panel
  • Password protection, only the authorized person can operate.
  • Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction.
  • Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
  • Using high density fireproof material
  • Program Self-diagnostic when power on, no need initial or periodic calibration
  • Modularization design, easy for maintenance and replacement.
  • Sensitivity Test piece: One yuan Coin, omnidirectional detection
  • 4-8 hours backup battery (Option)

Application:

  • Exhibition center,
  • Electronic Factory,
  • Bank,
  • Prison,
  • Government office,
  • Hotel etc

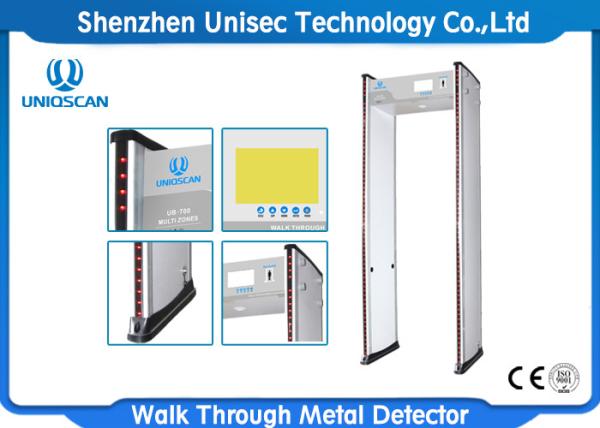

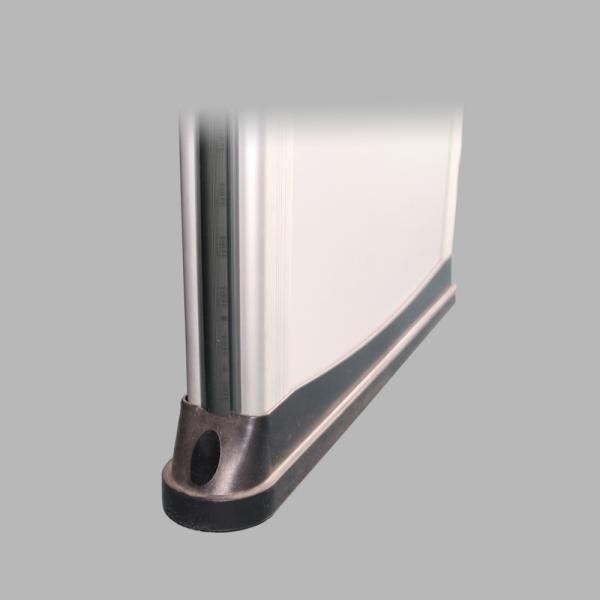

Detail Photo :

High Sensitivity 24 Zones Door Frame Metal Detector With 7 Inch LCD Screen
