18 zones Walk through Metal Detectors with RS232 Serial port communication
18 zones Walk through Metal Detectors with RS232 Serial port communication
18 zones Walk through Metal Detectors with RS232 Serial port communication
18 zones Walk through Metal Detectors with RS232 Serial port communication
18 zones Walk through Metal Detectors with RS232 Serial port communication
18 zones Walk through Metal Detectors with RS232 Serial port communication
18 zones Walk through Metal Detectors with RS232 Serial port communication
18 zones Walk through Metal Detectors with RS232 Serial port communication
18 zones Walk through Metal Detectors with RS232 Serial port communication
18 zones Walk through Metal Detectors with RS232 Serial port communication
18 zones Walk through Metal Detectors with RS232 Serial port communication
18 zones Walk through Metal Detectors with RS232 Serial port communication
Specifications
Brand Name :
Uniqscan
Model Number :
UB600
Certification :
CE,ISO
Place of Origin :
Guangdong(China mainland)
MOQ :
1 set
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
1000 sets per month
Delivery Time :
7 days after the payment
Packaging Details :
Carton Box
Name :
metal detectors walk through
Alarm :
sound alarm
Function :
public security
Warranty :
2 years
Sensitivity :
0-255 adjustable
Gross weight :
65 KG
Application :
airport,factory,school
Environment :
indoor or outdoor
Description

18 zones Walk through Metal Detectors with RS232 Serial port communication connect to computer

Brief:
1.........................6/12/18 zones Option
2.........................Small LCD screen display
3.........................Each zone has 255 sensitivity level
4.........................Easy assembly&Password protection
5.........................2 years warranty

Parameters :

Detecting zone: 6/12/18 zones
Display way: Small LCD screen
Sensitivity: 0-255 adjustable
Power Supply: AC100V-240V
Working temperature: -20ºC--+50ºC
Working Frequency: 4KHZ-8KHZ
Gross weight: 65KG
Warranty: 2 years
Standard External size: 2200mm(H)X800mm(W)X580mm(D)
Standard Internal size: 2010mm(H)X700mm(W)X500mm(D)
Package size for door panels: 2260*650*260mm *1ctn
Package size for control unit: 780*390*250 mm*1ctn

Characteristic & Function:

  1. 18 mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
  2. Small LCD screen, English operating software, easy to operate.
  3. Sensitivity adjustable: Each zone has 255 sensitivity level

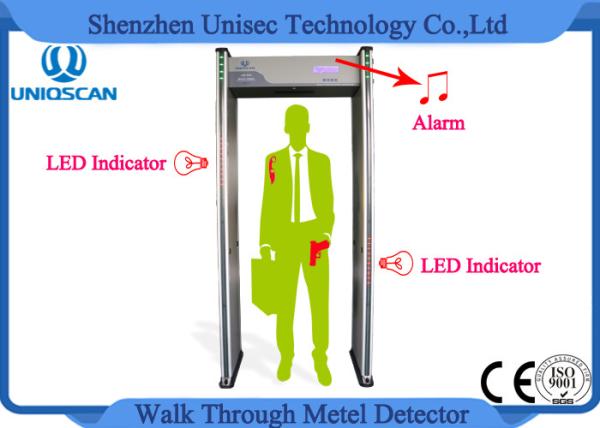

  4. Sound & LED alarm: Both Side LED indicator ,easily show where the metal is.
  5. Automatically count passengers and alarm times
  6. Alarm strength indicator on control panel
  7. Password protection, only the authorized person can operate.
  8. Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction.
  9. Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
  10. Using high density fireproof material
  11. Program Self-diagnostic when power on,no need initial or periodic calibration
  12. Modularization design, easy for maintenance and replacement.
  13. Sensitivity Test piece: One yuan Coin, omnidirectional detection
  14. 4-8 hours backup battery (Option)

Applications:

  1. Airports
  2. Correctional Facilities
  3. Public Buildings
  4. Private Buildings
  5. Schools
  6. Special Events
  7. Loss Prevention
  8. Nuclear Facilities
  9. Transportation Terminals
  10. Courthouses
  11. Corporate Security
  12. Historical Landmarks

Detail Photo:

18 zones Walk through Metal Detectors with RS232 Serial port communication

If there is anything in need,please contact us for detail:

Contact Person : Mr.Nick Chen
Job Title : Sales manager
Business Phone : +86 15118149162
WHATSAPP : +86 15118149162
Skype : sea.wave57
Email : Nick@uniqscan.com
