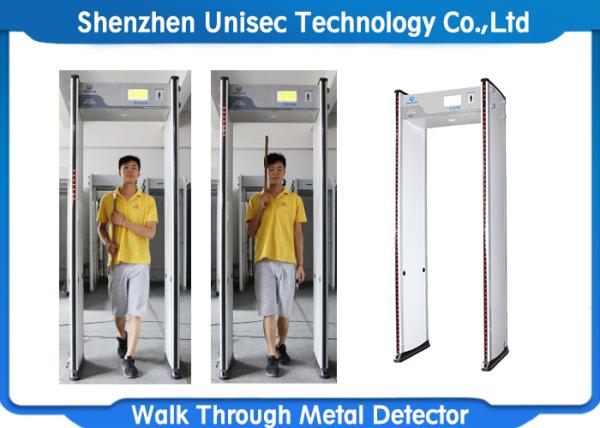

6/12/18/24 Zones Arch Door Metal Detector Security Check In Railway Station

Door frame walk through metal detector used for security check in railway station with 6/12/18/24 zones are available

1,Company introduction

Shenzhen Unisec Technology Co., Ltd is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine tehnology, metal detection technology, explosive detection, liquid detection and relative security services.

OUR BRIEF

We always adhere to customer-centric, the principles of honesty and trustworthiness, is committed to efforts to improve and continuous innovate its own responsibility .

OUR TECHNOLOGY
We owns all of the intellectual property rights (IPR) to its core technologies ,and have a experience engineer team with senior x-ray detection exports, signal and imagine processing specialist , excellent technical support and maintance engineers.

OUR SERVICES
We strictly in accordance with the ISO9001 quality standard requirements from production research , manufacture, marketing to after services, established a complete quality management and assurance system . Also we take effective marketing management protection measures to control the products qulity ,working efficiency and service attitudes ,to ensure all our clients have our best quality products and best services.

2,Specifications

24 zones

Parameters

Power Supply:AC85V-264V

Working temperature:-20℃--+50℃

Working Frequency :4KHZ—8KHZ

Standard External size: 2200mm(H)X800mm(W)X580mm(D)

Standard Internal size: 2010mm(H)X700mm(W)X500mm(D)

Package size for door Panel Size:2290X560X190 mm*1ctn

Package size for control unit: 760X380X260 mm*1ctn

Gross weight: 70KG

Characteristic & Function

Ø Eight mutual over-lapping detecting zones,

Ø Simultaneous alarm from multi- zones;

Ø Sensitivity adjustable: Each zone has 256 sensitivity level,

Ø 7 inch LCD screen

Ø Infrared remote control

Ø Sound & LED alarm: Both Side LED indicator ,

Easily show where the metal is.

Ø Automatically count passengers and alarm times

Ø Alarm strength indicator on control panel

Ø Password protection, only the authorized person can operate.

Ø Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction.

Ø Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.

Ø Using high density fireproof material

Ø Program Self-diagnostic when power on, no need initial or periodic calibration

Ø Modularization design, easy for maintenance and replacement.

Ø Sensitivity Test piece: One yuan Coin, omnidirectional detection

Ø 4-8 hours backup battery (Option)

Ø Network support

Ø Can be customized 6 and 33 zones

3,Application

Exhibition center, Electronic Factory, Bank, Prison, Government office, Hotel etc
