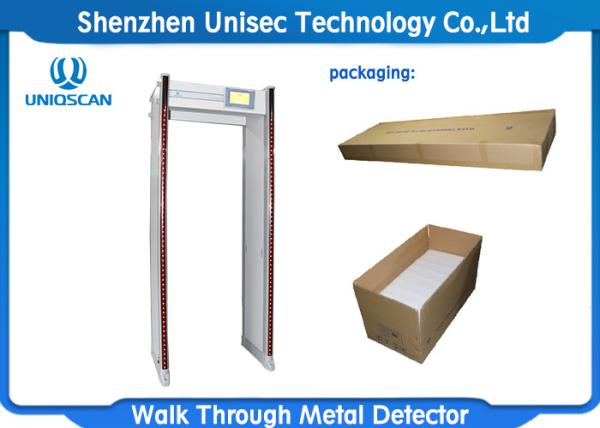

High Sensitivity Walk Through X Ray Machine , Outdoor Use Archway Metal Detector Gate

UNIQSCAN UZ800 7inch color LCD screen with high sensitivity, waterproof walk through metal detector suit for outdoor use

1,Specification

Parameters

Power Supply: AC85V-264V / 47.5-60Hz

Power: <15W

Working temperature:-20℃--+50℃

Waterproof can be used outside

Package size for door panels: 2280*730*210mm *1ctn

Package size for control unit: 8000*290*250m*1ctn

Gross weight: 75KG

Characteristic & Function

Ø 33 detecting zones, Simultaneous alarm from multi- zones;

Ø Sensitivity adjustable: Each zone has 300 sensitivity level

Ø 7 inch color LCD screen

Ø Infrared remote control

Ø Using high density fireproof material

Ø 8 hours backup battery

Ø Automatically count passengers and alarm times

Ø IN / OUT counter: bi-directional counter

Ø High sensitivity: Ferrous/ non-ferrous /Alloy can be detected

Ø 30 preset programs for security applications

Ø Anti-interference function, using advanced interactive transmitting and receiving to avoid interference.

Ø 100 frequencies for option. To work with neighbouring gates at 40cm

Ø Sound & LED alarm: Two Sides LED indicator easily show where the metal is.

Ø Detecting speed: up to 100 passenger/ min.

Ø Power save: Automatically power OFF if no passengers in 5 mins. Once pass through the gate, it will automatic working.

Ø Password protection, only the authorized person can operate.

Ø Easy assembly: designed with only 2 pieces cables and 8 screws, Simply-to-follow instruction. Modularization design,easy for maintenance and replacement.

Ø Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.

Ø Sensitivity Test piece: One yuan Coin, omnidirectional detection

Ø Network support

Ø Can be customized 45 zones

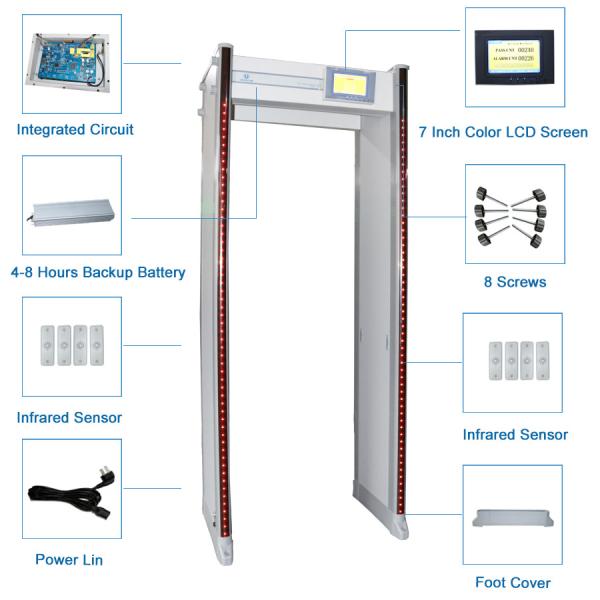

2,Detailed parts
