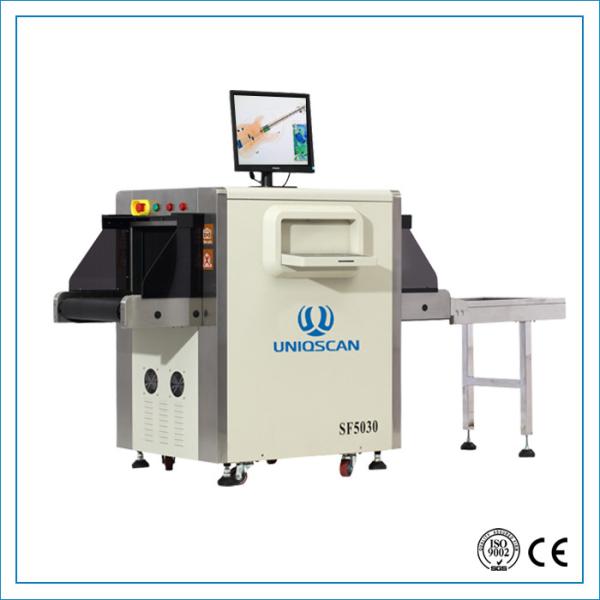

High Resolution L-Shape X Ray Luggage Scanner For Cargo Inspection

Model: SF5030

General Specifications

Tunnel Size : 500 (W) ×300 (H) mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 100 kg

Single inspection dosage: <1.32μGy

Leakage radiation: <0.06µGy/h

Wire Resolution: 40AWG

Steel Penetration: 10mm

Film Safety: For ISO 1600

X-RAY GENERATOR

Orientation: Upward

Tube Current: 0.4-1.25mA(adjustable)

Anode Voltage: 80KV(adjustable)

Angle: 60°

Generator cooling/working periods:

Sealed oil bath with forced air/100％

OPERATING ENVIRONMENT

Storage Temperature: -20oC to 60oC

Operating Temperature: 0°C to 45°C

Relative Humidity:

20 to 95% non-condensing

System Power: 220 VAC (±10%) 50±3HZ

Power wastage: 1.0 KW (Max)

Noise<55DB

X-RAY Sensor: L-shaped array detector, 24bit

Image Performance System:

Display: High-resolution 19 inch color LCD display

Color quality: 24-Bit real colors based on materials

Edge enhancement: Object contour edge is more distinct

Super image enhancement: Image detail is more distinct

High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly

Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.

Magnifier: Partial magnifying function

Brightening/dimming: Increase/Decrease brightness of image

Image recurrence: Display the previous twenty images and process any one of them

Image restoration: Restore image to initial status

Image storage: Real-time store any image and process it in operation status

Multi-energy: High/low energy: Switch from high energy to low energy

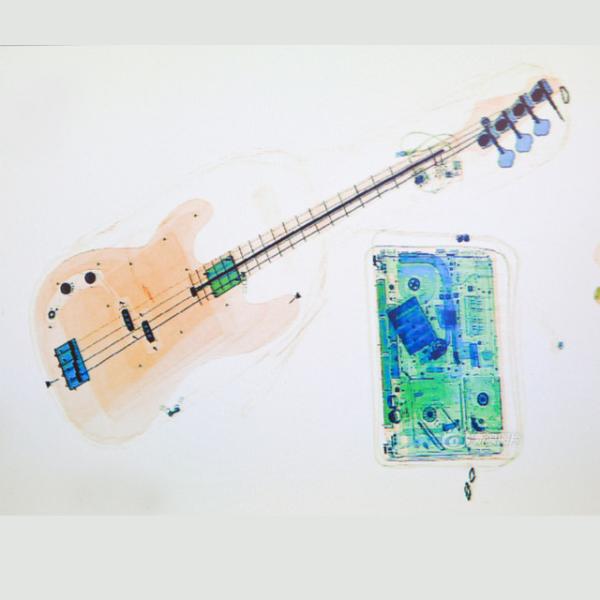

Color material identification: Organic objects in orange, inorganic objects in blue, mixture in green

Assist to detect drug and explosive powder

Special features:

Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time

Safety ray: Ray is transmitted under automatic control, avoiding the error

One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient

Eagle eye: Capable of expediently observing the magnifying area

Self-diagnosis function: Give message automatically if malfunction for prompt maintenance

Packaging & Shipping

Neutral Packing:
Q'TY: 1 PCS/Wooden Case
N.W.: 310 KGS
G.W.: 390 KGS
MEAS.: 1666(L)*823(W)*1196(H)
Wood Case Size:1880(L) X 900(W) X 1420(H) mm=2.265CBM

Our Services

Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to instal the machine, training how to use the machine.
* Sample testing support . * Engineers available to service machinery overseas.
* View our Factory.

Company profile

Shenzhen Unisec Technology Co., Ltd is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine tehnology, metal detection technology, explosive detection, liquid detection and relative security services.

We owns all of the intellectual property rights(IPR) to its core technologies,and have a experience engineer,sales and service team. Products widely used in airport, railway station, bus station, electronic factory, exhibition, government office, jail, court house...etc. Wins a good reputation from end users from China and overseas.

We strictly in accordance with the ISO9001 quality standard requirements from production research, manufacture, marketing to after services, established a complete quality management and assurance system, to ensure all our clients have our best quality products and best services.
