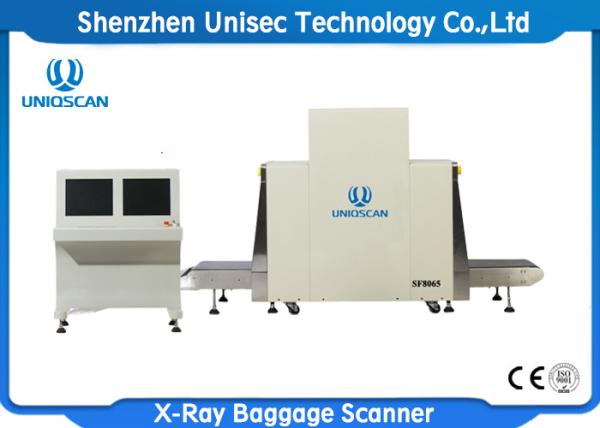

High Resolution X Ray Baggage Scanner / X Ray Security Inspection Dual Energy
High Resolution X Ray Baggage Scanner / X Ray Security Inspection Dual Energy
Specifications
Brand Name :
Uniqscan
Model Number :
SF100100
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 UNIT
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
in one week
Packaging Details :
Wooden box,standard export packing
Product Name: :
x ray cargo scanner
Conveyor Speed: :
0.22m/s
Power wastage: :
1.0 KW (Max)
Tunnel Size : :
800 (W) ×650(H) mm
Conveyor Max Load: :
200kg
Wire Resolution: :
40AWG
Steel Penetration: :
38mm
Single inspection dosage: :
<1.15μGy
Description

High resolution x-ray security inspection,dual energy x-ray luggage scanner 8065 with CE ISO certificate

High Resolution X Ray Baggage Scanner / X Ray Security Inspection Dual EnergyHigh Resolution X Ray Baggage Scanner / X Ray Security Inspection Dual Energy

General specification:

High resolution x-ray security inspection,dual energy x-ray luggage scanner 8065 with CE ISO certificated

General Specifications
Tunnel Size :800 (W) ×650 (H) mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 100 kg
Single inspection dosage: < 1.32μGy
Wire Resolution: 40AWG
Steel Penetration: 10mm
Film Safety: For ISO 1600
Conveyor rolls in both two directions
X-RAY GENERATOR
Orientation: Upward
Tube Current: 0.4~0.7mA(adjustable)
Anode Voltage: 80KV(adjustable)
Angle: 60°
Generator cooling/working periods:
Sealed oil bath with forced air/100%
Conveyor rolls in both two directions
OPERATING ENVIRONMENT
Storage Temperature: -20oC to 60oC
Operating Temperature: 0oC to 45oC
Relative Humidity:
20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.0 KW (Max)
Noise<65DB
X-RAY Sensor:
L-shaped array detector
24bit
Single energy
Image Performance System:
Display: High-resolution 19 inch color LCD display
