UNIQSCAN L - Shaped Array Airport Security X Ray Baggage Scanner System Dual Energy X Ray Inspection Machine
UNIQSCAN L - Shaped Array Airport Security X Ray Baggage Scanner System Dual Energy X Ray Inspection Machine
UNIQSCAN L - Shaped Array Airport Security X Ray Baggage Scanner System Dual Energy X Ray Inspection Machine
UNIQSCAN L - Shaped Array Airport Security X Ray Baggage Scanner System Dual Energy X Ray Inspection Machine
UNIQSCAN L - Shaped Array Airport Security X Ray Baggage Scanner System Dual Energy X Ray Inspection Machine
UNIQSCAN L - Shaped Array Airport Security X Ray Baggage Scanner System Dual Energy X Ray Inspection Machine
UNIQSCAN L - Shaped Array Airport Security X Ray Baggage Scanner System Dual Energy X Ray Inspection Machine
UNIQSCAN L - Shaped Array Airport Security X Ray Baggage Scanner System Dual Energy X Ray Inspection Machine
UNIQSCAN L - Shaped Array Airport Security X Ray Baggage Scanner System Dual Energy X Ray Inspection Machine
UNIQSCAN L - Shaped Array Airport Security X Ray Baggage Scanner System Dual Energy X Ray Inspection Machine
Specifications
Brand Name :
Uniqscan
Model Number :
SF8065
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 UNIT
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
200 sets per month
Delivery Time :
in one week
Packaging Details :
Wooden box
Name :
X ray scanner
Tube Current :
0.4~0.7MA（adjustable）
Anode voltage :
100~160KV（adjustable）
X-ray divergence angle :
80 °
Generator cooling/working periods :
sealed oil bath with forced air/100%
X-RAY Sensor :
L-shaped array detector, 24bit
Steel Penetration :
38mm steel plate
Film safety :
for ISO1600
Description

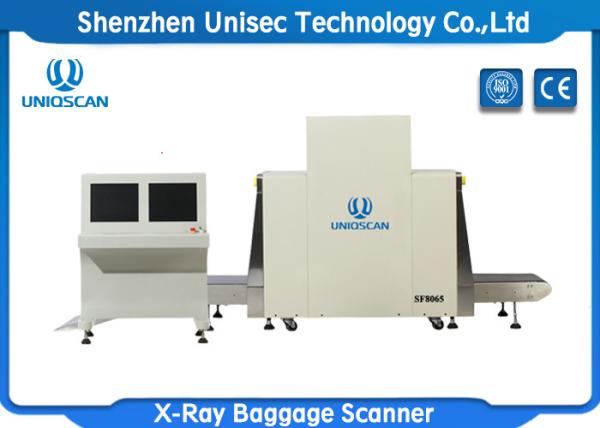

Uniqscan Security Scanning Machine X Ray Scanner for Baggage Checking SF8065


Product Pic:


General specification


Orientation:From the top down;
Tube Current:0.4~0.7MA(adjustable)
Anode voltage:100~160KV(adjustable)
X-ray divergence angle:80 °
Generator cooling/working periods:sealed oil bath with forced air/100%
X-RAY Sensor:L-shaped array detector, 24bit
Steel Penetration:38mm steel plate
Film safety:for ISO1600


Packaging & Delivery

P Packaging Detail:strong cartoon box or ploywooden case

D elivery Detail:working day after confirm the order



FFeature

Dual Energy ,L-shaped array detector
apan HAMMATSU detector crystal , Detecting board from Deetee Finland.
IPC from Taiwan , Interroll Roller from German
High-resolution PHILIP 19 inch color LCD display
Four colors to distinguish organic , inorganic and dangerous material
Multiple functions: High/Low penetration display, Magnifier, Brightening/dimming,
Image enlarge, recurrence, restoration, storage, network



Parameter
General specification X-ray Generator
Tunnel Size : 800(W)×650(H)mm Orientation: From the top down;
Conveyor Speed: 0.22m/s Tube Current: 0.4~0.7MA(adjustable)
Conveyor Max Load: 200 kg Anode voltage: 100~160KV(adjustable)
Single inspection dosage:< 1.15μGy X-ray divergence angle: 80 °
Leakage radiation dosage:≤ 0.14µGy/h Generator cooling/working periods:
Wire resolution: 40AWG sealed oil bath with forced air/100%
Spatial resolution :1.0mm Horizontal ；1.0mm Vertical X-RAY Sensor:
Steel Penetration: 38mm steel plate L-shaped array detector, 24bit
Film safety: for ISO1600



Image Performance System
X-ray sensor---L type photodiode array detector (energy), 24 bi depth；
Display---High-resolution liquid crystal display, 24-bit color；
Color management architectures---Different color, different matter；
Inverse,white/black/colorized---For compare these images to find the suspected dangerous goods
To eliminate organic,Inorganic out---In view of the most important image;
Edge enhancement---The edge of image is more clear；
High penetration---Make the image more through, for look every goods in one image ；
Zoom in/zoom out---Make the image bigger ,make the image smaller；
1 times size of image---Make image back to 1 times size of image;
Brighter/darker---Make image more bright /make image darker；
Replay---Playback all images on the screen at current,be able to do the next steps；
Application and Certifications
used for scenic spots, gymnasium, expo centre, left- baggage counter, supermarket, hotel ,court, prison..etc

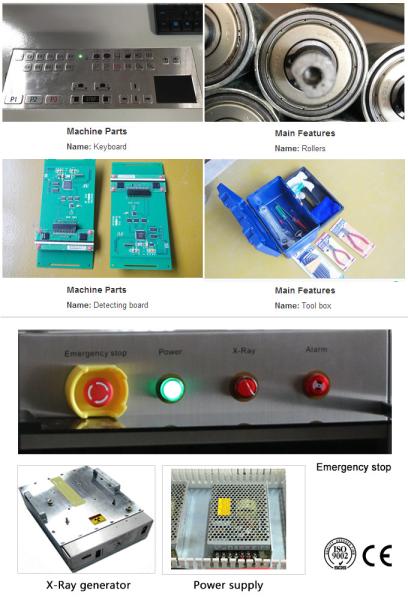

Machine parts safeguard measures
High performance network function
Chinese ministry of public security testing
EU CE Certification
ISO9001 Certification
ISO14001 Environmental Management
