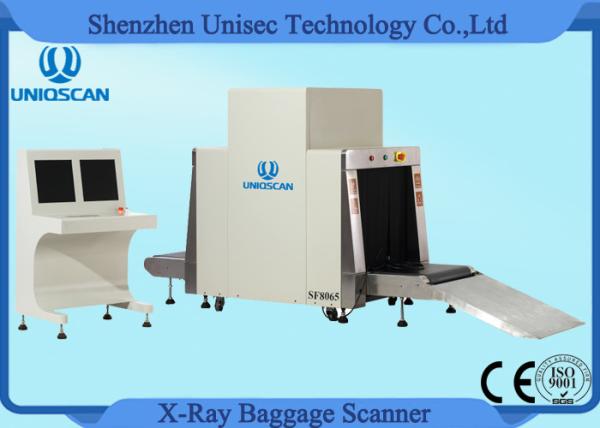

Conveyor X Ray Luggage Scanner With 40mm Steel Penetration , 800*650mm Tunnel Size

Product Point:
1................. Tunnel Size : 800 (W) ×650 (H) mm
2..................24 bit , Dual Energy
3..................38mm Steel Penetration
4..................Leakage radiation: <0.14µGy/h
5..................Single inspection dosage: < 1.15μGy

General Specifications:

X-Ray Generator Specifications:

Computer Specification:

Image Display:

• 19'' High Resolution LCD Monitor
• Display Resolution: 1280*1024;24 bit/pixel Color
• Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level
• Image storage: 100,000 pictures in real time (can be customized)
• Zoom: 64 Times Enlarge, Whole screen continuous observation
• Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color
• Edge enhancement: Object contour edge is more distinct
• Super image enhancement: Image detail is more distinct
• High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
• Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
• Brightening/dimming: Increase/Decrease brightness of image
• Image recurrence: Display the previous twenty images and process any one of them
• Image restoration: Restore image to initial status
• Assist to detect drug and explosive powder

Special features:

• Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
• Safety ray: Ray is transmitted under automatic control, avoiding the error
• One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
• Eagle eye: Capable of expediently observing the magnifying area
• Self-diagnosis function: Give message automatically if malfunction for prompt maintenanceTIP and training software
• TIP and training software , free programmable keys , real time diagnostic
• Display date/time , baggage counter , User ID number
• Review feature , recall previously image , zoom overview , step less zoom

Environment Specifications:

• Operating temperature/humidity: 0ºC ~ 45ºC/20% ~ 95% (Non-condensing)
• Storage temperature/humidity: -20ºC ~ 60ºC/20% ~ 95% (Non-condensing)
