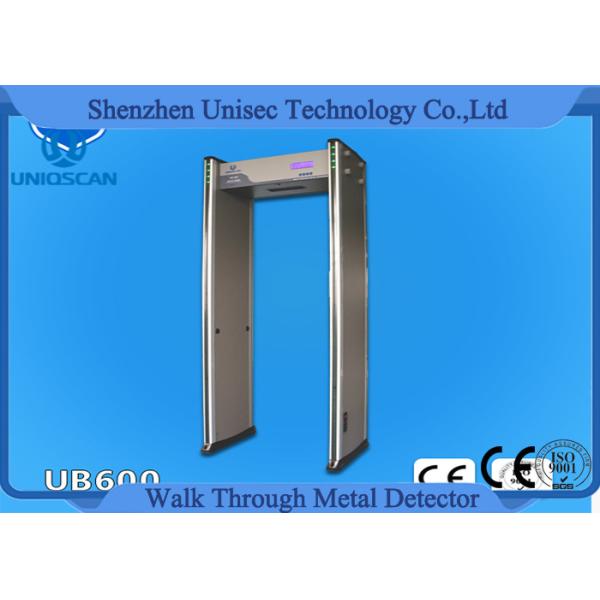

6/12/18 zones

Parameters

Power Supply: AC85V-264V

Working temperature: -20℃--+50℃

Working Frequency : 4KHZ—8KHZ

Standard External size: 2200mm(H)X800mm(W)X580mm(D)

Standard Internal size: 2010mm(H)X700mm(W)X500mm(D)

Package size for door panels: 2260*650*260mm *1ctn

Package size for control unit: 780*390*250 mm*1ctn

Gross weight: 70KG

Characteristic & Function

• 18 mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
• Small LCD screen, English operating software, easy to operate.
• Sensitivity adjustable: Each zone has 256 sensitivity level
• Sound & LED alarm: 4.3inch lcd indicator, easily show where the metal is.
• Automatically count passengers and alarm times
• Alarm strength indicator on control panel
• Password protection, only the authorized person can operate.
• Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction.
• Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
• Using high density fireproof material
• Program Self-diagnostic when power on,no need initial or periodic calibration
• Modularization design,easy for maintenance and replacement.
• Sensitivity Test piece: One yuan Coin, omnidirectional detection
• 4-8 hours backup battery (Option)

Application

Exhibition center, Electronic Factory, Bank, Prison, Government office,Hotel etc

FunctionAuthorized person (white list ): After face recognized, two turnstiles will open at the same time .

Authorized person (black list): After face recognized, the first turnstile opens, when he walks into the device, the first turnstile will be closed. The second turnstile keep close always.

Unauthorized person (common person): No record by face recognized and turnstile will not open.

For 2 and 3, they need waiting for the security guy to confirm safety and authorize by remote control. If he is a regular visitor, the security guy can keep his record and save as Authorized visitor.

• CCTV CAMERA on both sides (Entrance and Exit)

To monitoring all the visitors and recording by DVR

All visitors’ data can be output,including visit time and in/out times.

• Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
• Program Self-diagnostic when power on,no need initial or periodic calibration
• Modularization design,easy for maintenance and replacement.

Ø Locate metals hidden on the body

Ø Head-to-toe uniform detection field

Ø Sensitivity level, three patterns such as high, middle and low for various requirements

Ø visible alarm simultaneously to ascertain layout of metal articles

Ø Count passengers and alarm times automatically

Ø Password protection and only authorized person can operate
