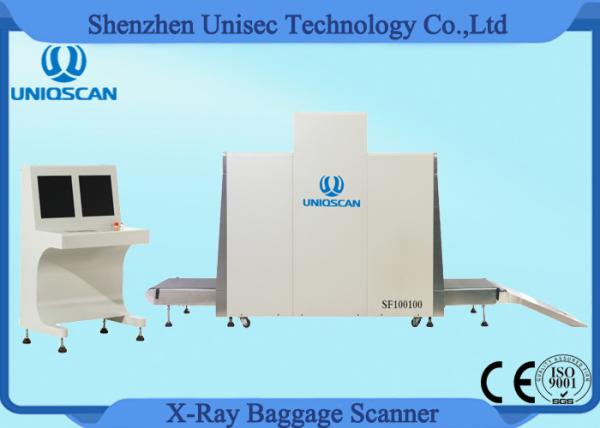

Recommend X Ray Baggage Scanner with 4096 Image Grey Level 250kg Conveyor Load
Recommend X Ray Baggage Scanner with 4096 Image Grey Level 250kg Conveyor Load
Specifications
Brand Name :
Uniqscan
Model Number :
SF100100
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 UNIT
Price :
Negotiation
Payment Terms :
T/T, , L/C, Western Union
Supply Ability :
50sets/week
Delivery Time :
in one week
Packaging Details :
Wooden box
Product Name :
Baggage scanner
Tunnel Size :
1000 (W) ×1000 (H) mm
Conveyor Max Load :
250 kg
Conveyor Speed :
0.22m/s
Wire Resolution :
38AWG
Noise level :
<58dB
Power Consumption :
1.0KW (Max)
Anode Voltage :
140~160KV
Description

1000*1000mm X Ray Baggage Scanner with 4096 Image Grey Level 250kg Conveyor Load

Application:

End user Recommend X Ray Baggage Scanner model NO.
Airports, Transport terminals SF6040; SF6550; SF10080; SF100100
Factories (shoes, bags), SF5030; SF5636; SF6040; SF6550
Courthouses, Embassies, SF5030; SF5636; SF6040; SF6550
Military installations SF5030; SF6040; SF6550; SF8065; SF100100
Prisons, Hotels, Schools, SF5030; SF5636; SF6040; SF6550; SF10080
Security checkpoints, SF5030; SF6040; SF6550; SF8065; SF10080

General Specification:

Tunnel Size : 1000 (W) ×1000 (H) mm
Power Requirement: 220V AC (±10%) 50±3Hz
Power Consumption: 1.0KW (Max)
Noise level: <58dB
Conveyor Speed: 0.22m/s
Conveyor Max Load: 250 kg
Wire Resolution: 38AWG
Spatial Resolution: 1.0mm Horizontal and Vertical
Steel Penetration: 38mm
Single inspection dosage: < 1.6μGy
Leakage radiation: <0.2µGy/h
Film Safety: Guarantee ISO1600 Film


X-Ray Generator Specifications:

Tube Current: 1.0~1.5mA
Anode Voltage: 150~200KV
Cooling: Sealed oil bath with forced air
Duty Cycle: Rated for 100%Duty Cycle
Beam Direction: Downward
Beam Angle: 80°
Detector: L-shaped Array


Environment Specifications:

Operating temperature/humidity: 0ºC ~ 45ºC/20% ~ 95% (Non-condensing)
Storage temperature/humidity: -20ºC ~ 60ºC/20% ~ 95% (Non-condensing)


Computer Specification:

Processor: I3-4340 (Dual core four thread) 3.6 GHZ 22nm 54W
Memory: 4GDDR3 Loptop Memory
Hard Disk : 1T

Parts Advantage:

1. x-ray generator is from Beijing KV tech

2. Interroll from Germany

3. Receiver from DEETEE Finaland

Image Display:
1.19'' High Resolution LCD Monitor *2
2. Display Resolution: 1280*1024;24 bit/pixel Color
3. Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level
4. Image storage: 100,000 pictures in real time (can be customized)
5. Zoom: 64 Times Enlarge, Whole screen continuous observation
6. Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color
7. Edge enhancement: Object contour edge is more distinct
8. Super image enhancement: Image detail is more distinct
9. High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
10. Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
11. Brightening/dimming: Increase/Decrease brightness of image
12. Image recurrence: Display the previous twenty images and process any one of them
13. Image restoration: Restore image to initial status
14.Assist to detect drug and explosive powder

Special features:
1. Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
2. Safety ray: Ray is transmitted under automatic control, avoiding the error
3. One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
4. Eagle eye: Capable of expediently observing the magnifying area
5. Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
6. TIP and training software , free programmable keys , real time diagnostic
7. Display date/time , baggage counter , User ID number
8. Review feature , recall previously image , zoom overview , step less zoom

Recommend X Ray Baggage Scanner with 4096 Image Grey Level 250kg Conveyor Load
