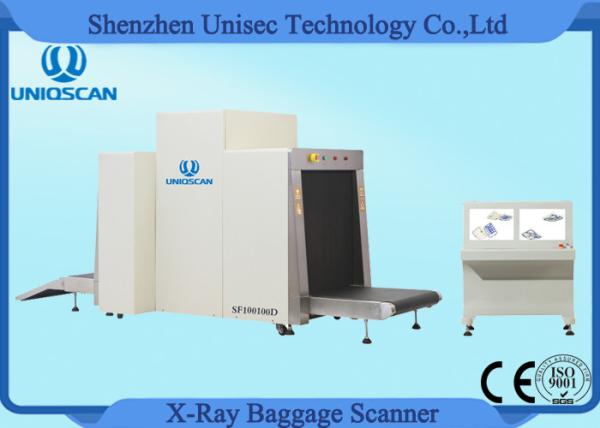

X Ray Airport Baggage Scanner Local Network Supported With 34mm Steel Penetration
X Ray Airport Baggage Scanner Local Network Supported With 34mm Steel Penetration
Specifications
Brand Name :
UNIQSCAN
Model Number :
SF100100D
Certification :
CE , ISO
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
USD
Payment Terms :
T/T, Western Union
Supply Ability :
500 UNITS FOR ONE MONTH
Delivery Time :
IN ONE WEEK
Packaging Details :
WOODEN BOX
Product Name :
Dual View X-Ray Baggage Scanners
Tunnel Size :
1000(W) X1000 (H) mm
Power consumption :
1.0KW (Max)
Conveyor Speed :
0.22m/s
Conveyor Max Load :
300kg
Single inspection dosage :
< 1.2μGy
Leakage radiation :
<0.1µGy/h
Steel Penetration :
34mm
Description

X-ray Scan Large X Ray Luggage Scanner Dual View Airport Baggage X ray Machines

Advantage :
1. With equipment to save electricity
2. X-ray generator is from Beijing KV tech
3. Interroll from Germany
4. Receiver from DEETEE Finaland
5. Protective cover on lead curtain to avoid lead pollution;
6. Local network supported
7. One-key shutdown control
8. Self-diagnosis function
9. TIP and training software , free programmable keys , real time diagnostic

General Specification:

Tunnel Size : 1000(W) ×1000 (H) mm
Power Requirement: 220V AC (±10%) 50±3Hz
Power consumption: 1.0KW (Max)
Noise level: <58dB
Conveyor Speed: 0.22m/s
Conveyor Max Load: 300 kg
Wire Resolution: 38AWG
Spatial Resolution: 1.0mm Horizontal and Vertical
Steel Penetration: 34mm
Single inspection dosage: < 1.2μGy
Leakage radiation: <0.1µGy/h
Film Safety: Guarantee ISO1600 Film


X-Ray Generator Specifications:

Tube Current: 0.7~1.2mA
Anode Voltage: 140~160KV
Cooling: Sealed oil bath with forced air
Duty Cycle: Rated for 100%Duty Cycle
Beam Direction: Downward and Sideward
Beam Angle: 80°
Detector: L-shaped Array * 2


Environment Specifications:

Operating temperature/humidity: 0ºC ~ 45ºC/20% ~ 95% (Non-condensing)
Storage temperature/humidity: -20ºC ~ 60ºC/20% ~ 95% (Non-condensing)


Computer Specification:

Processor: I3-4340 (Dual core four thread) 3.6 GHZ 22nm 54W
Memory: 4GDDR3 Loptop Memory
Hard Disk : 1T


Image Display:

Display: 19'' High Resolution LCD Monitor *2
Display Resolution: 1280*1024;24 bit/pixel Color
Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level
Image storage: 100,000 pictures in real time (can be customized)
Zoom: 64 Times Enlarge, Whole screen continuous observation

UNIQSCAN SF100100D:

X Ray Airport Baggage Scanner Local Network Supported With 34mm Steel Penetration

UNIQSCAN Project:

X Ray Airport Baggage Scanner Local Network Supported With 34mm Steel Penetration
