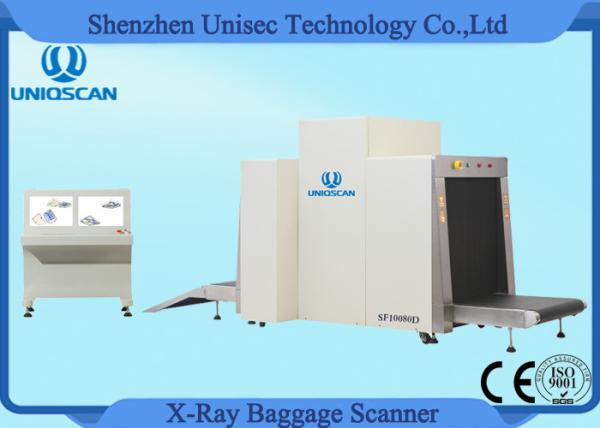

Dual View X-ray Security Machines Big Tunnel Size Airport Baggage X ray Machines
Dual View X-ray Security Machines Big Tunnel Size Airport Baggage X ray Machines
Specifications
Brand Name :
UNIQSCAN
Model Number :
SF10080D
Certification :
CE , ISO
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
USD
Payment Terms :
T/T, Western Union
Supply Ability :
500 UNITS FOR ONE MONTH
Delivery Time :
IN ONE WEEK
Packaging Details :
WOODEN BOX
Product Name :
Dual View X-ray baggage inspection system
Tunnel Size :
1000(W) X800 (H) mm
Power consumption :
1.0KW (Max)
Conveyor Speed :
0.22m/s
Wire Resolution :
38AWG
Anode Voltage :
140~160KV
Leakage radiation :
<0.1µGy/h
Steel Penetration :
40mm
Description

Dual View X-ray Security Machines Big Tunnel Size Airport Baggage X ray Machines

General Specification:

Tunnel Size : 1000 (W) ×800 (H) mm
Power Requirement: 220V AC (±10%) 50±3Hz
Power consumption: 1.0KW (Max)
Noise level: <55dB
Conveyor Speed: 0.22m/s
Conveyor Max Load: 250 kg
Wire Resolution: 38AWG
Spatial Resolution: 1.0mm Horizontal and Vertical
Steel Penetration: 40mm
Single inspection dosage: < 1.2μGy
Leakage radiation: <0.1µGy/h
Film Safety: Guarantee ISO1600 Film


X-Ray Generator Specifications:

Tube Current: 0.7~1.2mA
Anode Voltage: 140~160KV
Cooling: Sealed oil bath with forced air
Duty Cycle: Rated for 100%Duty Cycle
Beam Direction: Downward and Sideward
Beam Angle: 80°
Detector: L-shaped Array * 2


Environment Specifications:

Operating temperature/humidity: 0ºC ~ 45ºC/20% ~ 95% (Non-condensing)
Storage temperature/humidity: -20ºC ~ 60ºC/20% ~ 95% (Non-condensing)


Computer Specification:

Processor: I3-4340 (Dual core four thread) 3.6 GHZ 22nm 54W
Memory: 4GDDR3 Loptop Memory
Hard Disk : 1T


Image Display:

Display: 19'' High Resolution LCD Monitor *2
Display Resolution: 1280*1024;24 bit/pixel Color
Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level
Image storage: 200,000 pictures in real time (can be customized)
Zoom: 64 Times Enlarge, Whole screen continuous observation

Application:

End user Recommend X Ray Baggage Scanner model NO.
Airports, Transport terminals SF6040; SF6550; SF10080; SF100100
Factories SF5030; SF5636; SF6040; SF6550
Embassies, Buildings SF5030; SF5636; SF6040; SF6550
Military installations SF5030; SF6040; SF6550; SF8065; SF100100
Prisons, Hotels, Schools, SF5030; SF5636; SF6040; SF6550; SF10080
Security checkpoints, SF5030; SF6040; SF6550; SF8065; SF10080
Dual View: SF6040D;SF6550D;SF8065D;SF10080D;SF100100D

UNIQSCAN SF10080D

Dual View X-ray Security Machines Big Tunnel Size Airport Baggage X ray Machines
