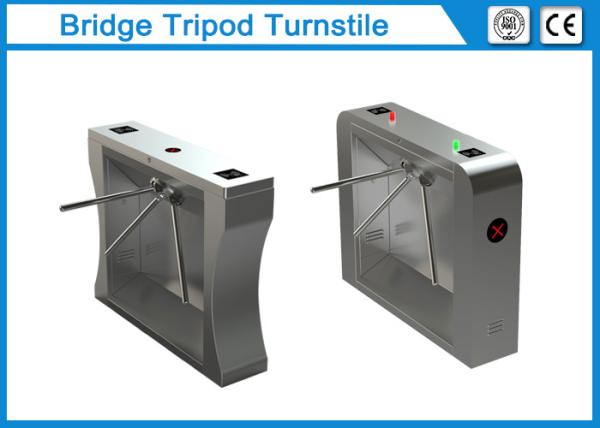

Automatic Waist Height Swing Tripod Turnstile Gate 304 Stainless Steel Bi Directional
Automatic Waist Height Swing Tripod Turnstile Gate 304 Stainless Steel Bi Directional
Specifications
Brand Name :
UNIQSCAN
Model Number :
UT550-D
Certification :
CE,ISO Certificate
Place of Origin :
Guangdong, China
MOQ :
1pc
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
5 working days after got the payment
Packaging Details :
Plywood Box with dimension 49*47*105cm
Dimension :
1200*280*980mm(can be customized)
Material :
304 # stainless steel
Head Thickness :
1.5mm
Cabinet Thickness :
1.2mm
Channel width :
≤550mm
Direction :
Bi-directional
speed :
35 person/min
Moter :
Single or double moter for your choice
Warrranty :
12 months
Description

Automatic waist height swing tripod turnstile gate with 304 stainless steel

Specifications:

Material
304 Stainless Steel
Normal Work Life
3,000,000 times
Diameter
1200 (L) *280 (W) *980 (H) MM
Access Direction
Single or bi directional
Arm Length
500 MM
Communication Interface
TCP / IP or RS 485
Channel Width
550 MM
Input Interface
relay switch signal, 12 V level signal or 12 V pulse signal
Mechanism Type
Semi automatic
Operating Temperature
-15°C--75°C
Driving Device
Solenoid
Warranty
1 year
Work Voltage
AC 220 (110 ) V±10% 50 HZ±10%
Fire Safty Emergency
Out of power , arm will automatically drop down
Transit Speed
35 people / minute
Work Environment
Indoor and outdoor

Features

1. Stainless steel housing, novel and beautiful design, durable and stable mechanism.


2. Waterproof, sunscreen, anti-temperature, anti-cold.Suitable to used outdoor.

3. Led Indicator Light : Red and green light prompt the passing information.

4. with a variety of operating modes you can choose, you can set a one-way or two-way control

5. Can integrated with RFID , magnetic card, bar code card, and other control equipment.

6. Fire safety function: When out of power , arm will automatically drop down , keep channel open

7. Scour protection function : The arm will be locked before received the open signal.

8. Can work with different systems , such as access control system , ticketing system , ESD system , consumption system , construction system , etc

9. Automatic reset function : Passenger did not pass within the stipulated time , the system will automatically cancel the access permissions of the user . (Default 5 seconds)

Optional Function:

1.Stainless steel Material :316 stainless
2.Stainless steel surface treatment : Satin treatment , brush / hairline finish , mirror finish

3. The turnstile controller with counting function, LED digital display function

4. Sound, light alarm function: with trespassing, trailing alarm

5.Operation Mechanism: Semi automatic Mechanism / fully automatic Mechanism / Manual Type

Automatic Waist Height Swing Tripod Turnstile Gate 304 Stainless Steel Bi Directional

Automatic Waist Height Swing Tripod Turnstile Gate 304 Stainless Steel Bi Directional
