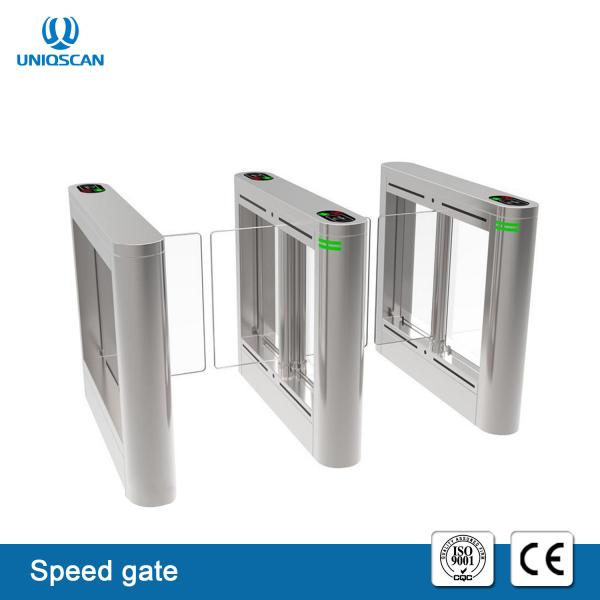

high speed pass turnstile glass turnstile retractable swing barrier good price swing turnstiles with rfid reader

Swing gate product description:

The box material is made of standard 304 stainless steel. The tank body is designed with professional water guide. It can be installed indoors or outdoors. It is suitable for places where people can pass the rate. It has functions such as counting, attendance and current limiting, and can cooperate with ticketing system and electronic tickets. System scenic spot ticket system, playground ticketing system, stadium ticketing system, theater ticketing system, realize the management functions of ticket sales, ticket inspection, ticket checking, and ticket collection; typical application: office space: business building, government agency, etc., science and education unit: college , research institutes, libraries, etc., commercial service places: supermarkets, shopping malls, hotels, clubs, banks, etc., leisure and entertainment places: parks, scenic spots, playgrounds, etc., transportation stations: bus stations, railway stations, subway stations, airports, etc.

Swing gate technical parameters:

1. Power supply voltage: AC220V ± 10%, 50Hz;

2. Drive motor: 24V;

3. Working environment temperature: -30 ° C ~ +70 ° C;

4. Relative humidity: relative humidity ≤ 95%, no condensation;

5. Input interface: 12V level signal or 12V pulse signal with pulse width >100ms;

6. Drive current: >200mA;

7. Communication interface: RS485 electrical standard;

8. Communication distance: ≤1200 meters;

9. Gate length: 300-800mm;

10. Channel width: 600-1600mm;

11. Passing speed: ≤ 30 people / minute;

13. Dimensions (can be customized):

1200* wide 280* high 980mm (bridge swing);

Length 420* width 330* height 980mm (vertical swing gate)

14. Structure: frame structure / standard stainless steel casing;

15. Swing arm steering: support one-way and two-way (optional);

16. Working environment: indoors and outdoors.

17. The swing gate main board is in visual operation mode (operating according to actual needs)

18. Swing gate motherboard provides Chinese/English menu operation

19. Swing gate motherboard comes with test function

20. Swing gate motherboard comes with high-definition fidelity audio decoding chip, can read, write, write and write software intelligent synthesized speech at any time.

21. Provide 485 communication protocol for swing gate board, remote open terminal program
