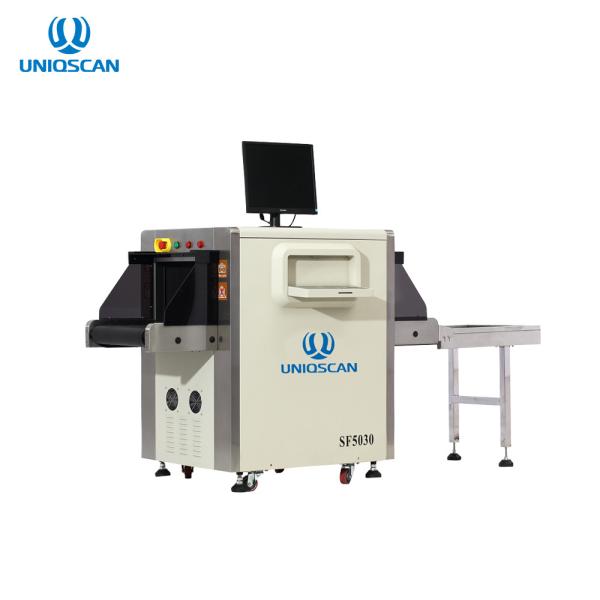

High Definition Handbag X Ray Baggage Scanner Singel Energy Check Point

X-RAY GENERATOR

Orientation: Upward

Tube Current:0.4~0.7mA(adjustable)

Anode Voltage:80KV(adjustable)

Angle: 60°

Generator cooling/working periods:

Sealed oil bath with forced air/100％

OPERATING ENVIRONMENT

Storage Temperature: -20oC to 60oC

Operating Temperature: 0oC to 45oC

Relative Humidity:

20 to 95% non-condensing

System Power: 220 VAC (±10%) 50±3HZ

Power wastage: 1.0 KW (Max)

Noise<65DB

X-RAY Sensor:

L-shaped array detector

24bit

Single energy

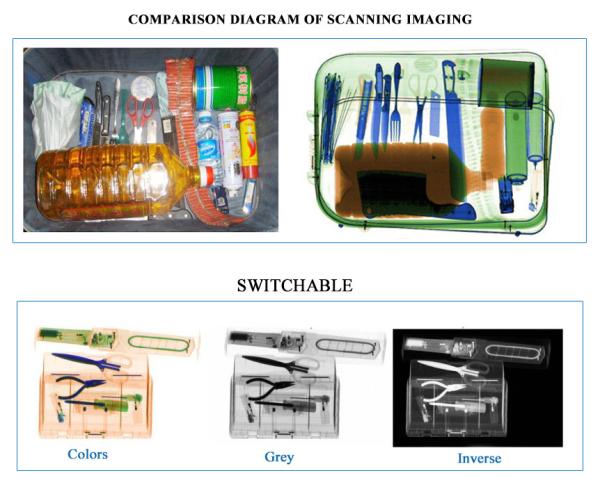

Image Performance System:

Display: High-resolution 19 inch color LCD display

Color quality: 24-Bit real colors based on materials

Edge enhancement: Object contour edge is more distinct

Super image enhancement: Image detail is more distinct

High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly

Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.

Magnifier: Partial magnifying function

Brightening/dimming: Increase/Decrease brightness of image

Image recurrence: Display the previous twenty images and process any one of them

Image restoration: Restore image to initial status

Image storage: Real-time store any image and process it in operation status

Applications:

Packing and Shipment:

Shenzhen Unisec Technology Co., Ltd is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine tehnology, metal detection technology, explosive detection, liquid detection and relative security services.

OUR BRIEF
We always adhere to customer-centric, the principles of honesty and trustworthiness, is committed to efforts to improve and continuous innovate its own responsibility .

OUR TECHNOLOGY
We owns all of the intellectual property rights (IPR) to its core technologies ,and have a experience engineer team with senior x-ray detection exports, signal and imagine processing specialist , excellent technical support and maintance engineers.

OUR SERVICES
We strictly in accordance with the ISO9001 quality standard requirements from production research , manufacture, marketing to after services, established a complete quality management and assurance system . Also we take effective marketing management protection measures to control the products qulity ,working efficiency and service attitudes ,to ensure all our clients have our best quality products and best services.
