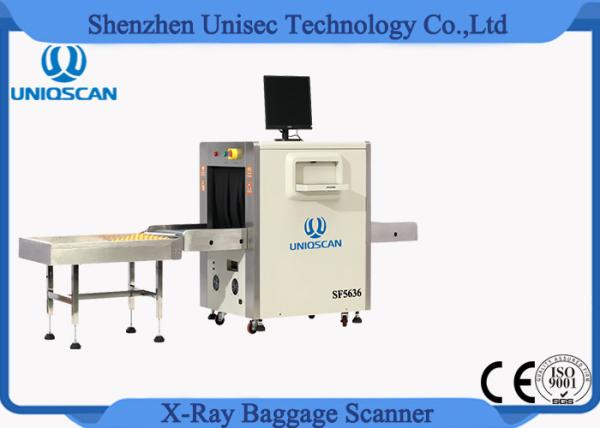

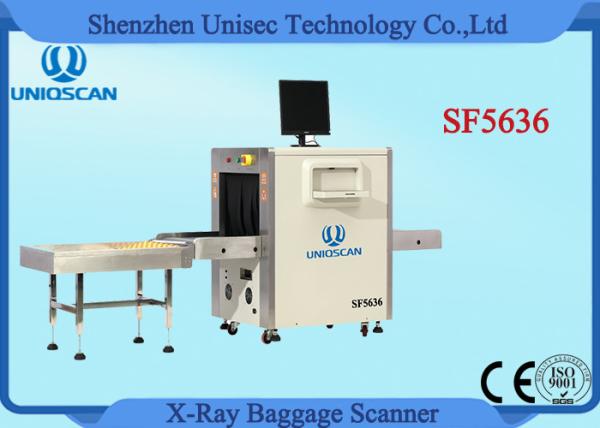

Airport Baggage X Ray Machine Sf5636 Dual Energy Scanner Ce / Iso Certificated
Airport Baggage X Ray Machine Sf5636 Dual Energy Scanner Ce / Iso Certificated
Airport Baggage X Ray Machine Sf5636 Dual Energy Scanner Ce / Iso Certificated
Airport Baggage X Ray Machine Sf5636 Dual Energy Scanner Ce / Iso Certificated
Specifications
Brand Name :
Uniqscan
Model Number :
SF5636
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 UNIT
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000 sets per month
Delivery Time :
in one week
Packaging Details :
Wooden box
Name :
Airport baggage scanner
Conveyor Max Load :
170 kg
Model :
SF5030A
Warranty :
2 years
Conveyor Speed :
0.22m/s
Tube Current :
0.4~0.7MA（adjustable）
Spatial resolution :
1.0mm Horizontal ；1.0mm Vertical
certification :
ISO
Description

Airport Baggage X Ray Machine Sf5636 Dual Energy Scanner Ce / Iso Certificated

X-RAY generator
Orientation: Upward
Tube Current:0.4~0.7mA(adjustable)
Anode Voltage:80KV(adjustable)
Angle: 60°
Generator cooling/working periods:
Sealed oil bath with forced air/100%

Film Safety: For ISO 1600

Application:
Exhibition center, Electronic Factory, Bank, Prison, Government office,Hotel etc

Parameter
General specification X-ray Generator
Tunnel Size : 500(W)×300(H)mm Orientation: Upward;
Conveyor Speed: 0.22m/s Tube Current: 0.4~0.7MA(adjustable)
Conveyor Max Load: 100 kg Anode voltage: 80KV(adjustable)
Single inspection dosage:< 1.32μGy X-ray divergence angle: 60 °
Leakage radiation dosage:≤ 0.14µGy/h Generator cooling/working periods:
Wire resolution: 40AWG sealed oil bath with forced air/100%
Spatial resolution :1.0mm Horizontal ;1.0mm Vertical X-RAY Sensor:
Steel Penetration: 10mm steel plate L-shaped array detector, 24bit
Film safety: for ISO1600



Our service
2 years warranty for free parts.
Free training in the factoty and on the video.
We have professional global team to solve your pronlem
We provide the HD images and video also can do in your brand(OEM)
We can fly to you local to help you finish installing and so on business.

Features
Single-Energy ,L-shaped array detector
apan HAMMATSU detector crystal , Detecting board from Deetee Finland.
IPC from Taiwan , Interroll Roller from German
High-resolution PHILIP 19 inch color LCD display
Four colors to distinguish organic , inorganic and dangerous material
Multiple functions: High/Low penetration display, Magnifier, Brightening/dimming,
Image enlarge, recurrence, restoration, storage, network
