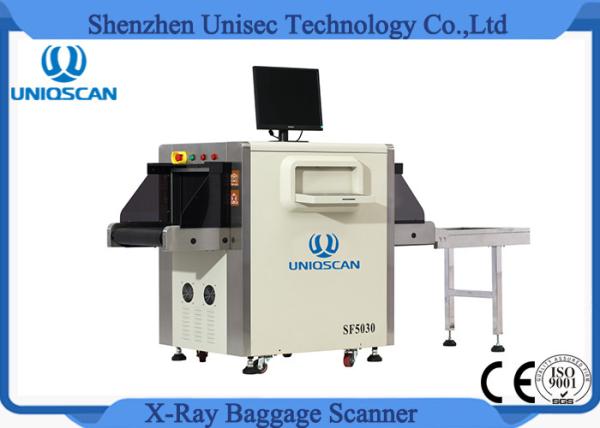

Dual Energy High Load Harbour X Ray Machine For Baggage At Airport Security

General Specifications

Leakage radiation: <0.06µGy/h

Wire Resolution: 40AWG

Steel Penetration: 40mm

Film Safety: For ISO 1600

Tunnel Size : 560 (W) ×360 (H) mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 165 kg

Single inspection dosage: <1.01μGy

X-RAY GENERATOR

Angle: 80°

Generator cooling/working periods:

Sealed oil bath with forced air/100％

Orientation: Upward

Tube Current: 0.4-1.25mA(adjustable)

Anode Voltage: 80-160KV(adjustable)

OPERATING ENVIRONMENT

20 to 95% non-condensing

System Power: 220 VAC (±10%) 50±3HZ

Power wastage: 1.0 KW (Max)

Noise<55DB

X-RAY Sensor: L-shaped array detector, 24bit

Storage Temperature: -20oC to 60oC

Operating Temperature: 0oC to 45oC

Relative Humidity:

Image Performance System:

Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.

Magnifier: Partial magnifying function

Brightening/dimming: Increase/Decrease brightness of image

Image recurrence: Display the previous twenty images and process any one of them

Image restoration: Restore image to initial status

Image storage: Real-time store any image and process it in operation status

Display: High-resolution 19 inch color LCD display

Color quality: 24-Bit real colors based on materials

Edge enhancement: Object contour edge is more distinct

Super image enhancement: Image detail is more distinct

High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly

Multi-energy: High/low energy: Switch from high energy to low energy

Color material identification: Organic objects in orange, inorganic objects in blue, mixture in green

Assist to detect drug and explosive powder
