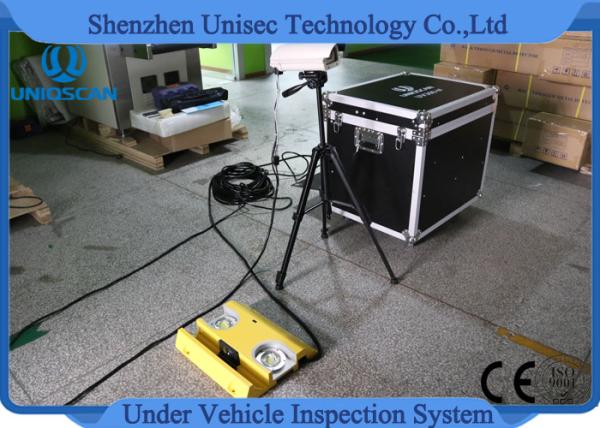

UVIS Moveable Under Vehicle Inspection System Capture Car Number / Drive Face
UVIS Moveable Under Vehicle Inspection System Capture Car Number / Drive Face
Specifications
Brand Name :
uniqscan
Model Number :
UV300M
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100sets per month
Delivery Time :
3-7 work days after payment
Packaging Details :
wooden case
product name :
UUVS/UVIS
Auxiliary light: :
100W
Weight capacity: :
<20T
Resolution: :
1920*1080
Operating Temperature: :
10℃ to +75℃
perature Range: :
-40 degree to +70 degree
Warranty: :
2 years
Description

UVIS Moveable Under Vehicle Inspection System Capture Car Number / Drive Face

Application:


1. Airport, prison, custom and other government department
2. Large public parking spot entrance and exit
3. Events, exhibition
4. Military, prison and other important checkpoints

Features
Features Automatic digital line scan camera, with high-resolution and clarity of the image.
The complete image of under vehicle scanning, without any omissions, and the image is clear, complete, no distortion, can be clearly observed that the object is not less than 2mm in diameter.
Preparation of inspection processes to meet a variety of on-site needs.
Multiple scene image monitoring, recording function.
Multi-language user interface design.
Strong scalability to easily achieve a variety of system linkage control.
ALPR(Automatic Licence Plate Recognition) (Optional)
Multiple devices networked control functions(Optional)
General Specifications
Technical parameters Vertical resolution of the image: 5000*2048 pixels
Check the width viewing angle: < 4 meters
Speed of vehicle:< 30km/h with ALPR(Automatic Licence Plate Recognition)
Speed of vehicle: <70km/h without ALPR(Automatic Licence Plate Recognition)
Effective Field of View(FOV):less than 170°
Auxiliary light: 100W
Weight capacity: <20T
Water-proof grade: IP66
Scanning device weight: 24KG
Scanning device volume: 450mm×400mm×88mm
Communication interface: RS232/RS422
Operating Temperature: -10ºC to 55ºC
Storage temperature: -40ºC to +75ºC
System host
System host

Brand: Grantech (UFO6377H-SP1-953)
CPU: Intel® Core(TM) 2 Duo CPU
P8600@2.4GHz or higher
Memory: 2G( optional 4G)
Graphics: Inter(R) Gen 5.0 Integrated Graphics Engine
Hard Disk: SATA2 Hard Disk 500G
Dual LAN (At least one Intel Gigabit)
USB2.0 (Up to 4 pieces)
Monitor: 22inch LCD,

Resolution up to 1920*1080
Operating voltage: 110-240V AC, 50-60HZ

Description Model No. Tunnel size (L*W mm)
X-ray screening equipment SF5030A 500mm*300mm
X-ray baggage scanner SF5030C 500mm*300mm
X-ray baggage detector SF6550 650mm*500mm
X-ray Hold baggage scanner SF8065 800mm*650mm
X-ray luggage inspection system SF10080 1000mm*800mm
X-ray Inspection security system SF100100 1000mm*1000mm

UVIS Moveable Under Vehicle Inspection System Capture Car Number / Drive Face
