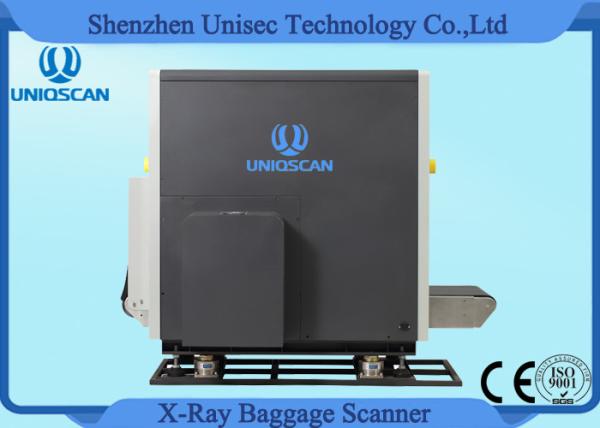

Duel View SF6550D X Ray Inspection Systems Upward and Sideward Beam Direction

General Specification:
1. Tunnel Size : 650 (W) ×500 (H) mm
2. Power Requirement: 220V AC (±10%) 50±3Hz
3. Power consumption: 1.0KW (Max)
4. Noise level: <58dB
5. Conveyor Speed: 0.22m/s
6. Conveyor Max Load: 200 kg
7. Wire Resolution: 40AWG
8. Spatial Resolution: 1.0mm Horizontal and Vertical
9. Steel Penetration: 38mm
10. Single inspection dosage: < 1.2μGy
11. Leakage radiation: <0.1µGy/h
12. Film Safety: Guarantee ISO1600 Film

X-Ray Generator Specifications:
1. Tube Current:0.7~1.2mA
2. Anode Voltage:140~160KV
3. Cooling: Sealed oil bath with forced air
4. Duty Cycle: Rated for 100%Duty Cycle
5. Beam Direction: Upward and Sideward
6. Beam Angle: 80°
7. Detector: L-shaped Array * 2

Environment Specifications:
1. Operating temperature/humidity: 0ºC ~ 45ºC/20% ~ 95% (Non-condensing)
2. Storage temperature/humidity: -20ºC ~ 60ºC/20% ~ 95% (Non-condensing)

Image Display:
1. 19'' High Resolution LCD Monitor *2
2. Display Resolution: 1280*1024;24 bit/pixel Color
3. Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level
4. Image storage: 100,000 pictures in real time (can be customized)
5. Zoom: 64 Times Enlarge, Whole screen continuous observation
6. Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color
7. Edge enhancement: Object contour edge is more distinct
8. Super image enhancement: Image detail is more distinct
9. High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
10. Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
11. Brightening/dimming: Increase/Decrease brightness of image
12. Image recurrence: Display the previous twenty images and process any one of them
13. Image restoration: Restore image to initial status
14.Assist to detect drug and explosive powder

Special features:
1. Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
2. Safety ray: Ray is transmitted under automatic control, avoiding the error
3. One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
4. Eagle eye: Capable of expediently observing the magnifying area
5. Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
6. TIP and training software , free programmable keys , real time diagnostic
7. Display date/time , baggage counter , User ID number
8. Review feature , recall previously image , zoom overview , step less zoom
