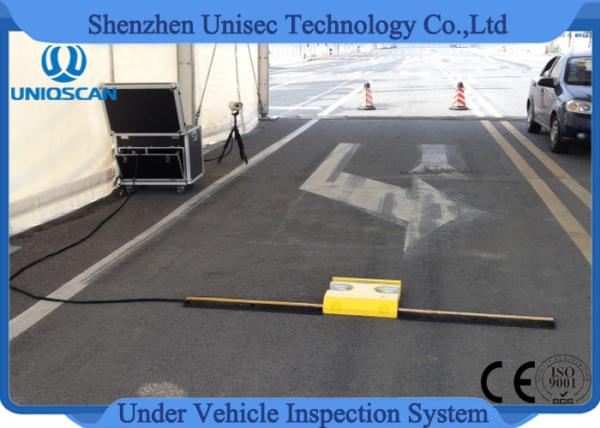

Mobile Airports Under Vehicle Inspection System 5000*2048 Pixels Vertical Resolution Of Image

Features:

1. Automatic digital line scan camera, with high-resolution and clarity of the image.
2. The complete image of under vehicle scanning, without any omissions,
3. and the image is clear, complete, no distortion, can be clearly observed that
4. the object is not less than 2mm in diameter.
5. Preparation of inspection processes to meet a variety of on-site needs.
6. Multiple scene image monitoring, recording function.
7. Multi-language user interface design.
8. Strong scalability to easily achieve a variety of system linkage control.
9. (Optional)ALPR(Automatic Licence Plate Recognition)
10. Optional Multiple devices networked control functions

System Host:

• Brand: Grantech (UFO6377H-SP1-953)
• CPU: Intel® Core(TM) 2 Duo CPU P8600@2.4GHz or higher
• Memory:2G( optional 4G)
• Graphics:Inter(R) Gen 5.0 Integrated Graphics Engine
• Hard Disk:SATA2 Hard Disk 500G
• Dual LAN (At least one Intel Gigabit)
• USB2.0 (Up to 4 pieces)
• Monitor: 22inch LCD,
• Resolution up to 1920*1080

Technical parameters:

1. Water-proof grade: IP68

2. Scanning device weight: 24KG

3. Scanning device volume: 450mm×400mm×88mm

4. Communication interface: RS232/RS422

5. Operating Temperature: -10℃ to 55℃

6. Storage temperature: -40℃ to +75℃

7. Operating voltage: 110-240V AC, 50-60Hz

Scan Image:
