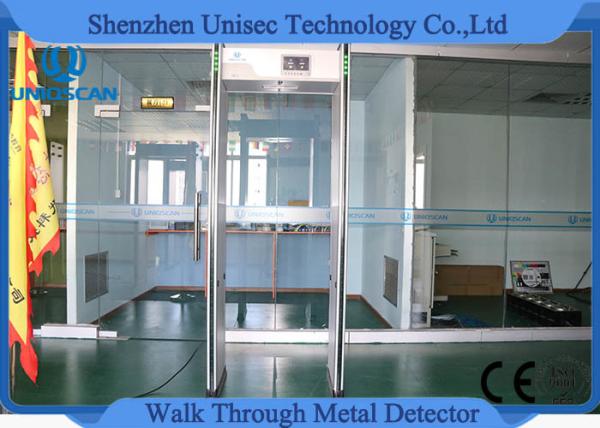

Battery Backup Arch Metal Detector Walk Through 45 Zones For Embassy Security Check
Battery Backup Arch Metal Detector Walk Through 45 Zones For Embassy Security Check
Specifications
Brand Name :
Uniqscan
Model Number :
UB800
Certification :
CE; ISO
Place of Origin :
Shenzhen
MOQ :
10pcs
Price :
150usd- 400usd/unit
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000pcs/month
Delivery Time :
5-7 work days
Packaging Details :
carton box
Optional :
Battery, Camera, Remote
Screen :
7inch Lcd display
Model :
UB800
Alarm :
Visual And Audible
containner :
90pcs a containner
Camera :
capture picture when alarm
Description

Battery Backup Arch Metal Detector Walk Through 45 Zones For Embassy Security Check

Metal Detector gate, Door Frame MealDetector , Metal Detector ,Security detector, walk through metal detector, Metal detector manufacturer, Manufacturer of Metal detector, Through type metal detector, Body scanner

Technical Parameters
Power Supply 220V/AC 110V/AC
Power <30V
External Dimension 2200mm(H)X800mm(W)X580mm(D)
Passageway Dimension 2010mm(H)X700mm(W)X500mm(D)
Work environment -20°C- +45°C
Standard GB15210-2003<WALK THROUGH METAL DETECTOR>

Specifications:

  • Interference Suppression
    Special Security King DSP built-in circuitry eliminates effects from x-ray monitors and other potential electrical interference sources.
  • Alarms: Audible tone and volume adjustable. Bright LED visual alarm.
  • Target Pinpointing Lights
    33 distinct zones are displayed with colorful LCD display located on exit side of UB800.
  • Pacing Lights, International symbols
  • Warranty
    Limited 24 months, parts and labor
  • Construction
    Attractive scratch and mar-resistant laminate. Detection Heads and Support: Heavy duty aluminum.
  • Control Outputs
    Solid state switches (low voltage AC or DC) for operating external alarms and control devices.
  • Traffic Counter: Counter tracks the number of patrons that have passed through the detector, the number of alarms and calculates alarm percentage.
  • Synchronization: Dual channels and DSP circuitry allow several UB800 to operate simultaneously in close proximity to one another.

Standard configuration
Main Case ONE
Left Probe ONE
Right Probe ONE
Power Line ONE
Screws Eight
Instruction ONE (Including one Certificate of Quality & Guarantee Repair List)
Packing
Main Case 2290*560*190mm
Probe 760*380*260mm(Carton)
Total Volume 0.32CBM
G.W. 67kg (Approx.)

Specification

  • Automatically count passengers and alarm times
  • Password protection,only the authorized person can operate.
  • Anti-interference function, using advanced interactive transmitting and receiving to avoid interference, frequency range from 4K-8K to avoid frequency interference
  • Easy assembly: designed with only 2 pieces cables and 8 screws, Simply-to-follow instruction.
  • Harmless to human body: is harmless with heart peacemaker, pregnant women, magnetic floppy, recording tapes, etc.
  • Program Self-diagnostic when power on,automatically checking left and right door panel, LED light and choose the best working frequency.
  • Adopt advanced digital signal processing control replaced traditional analog signal control, better stability.
  • Six mutual over-lapping detecting zones,Simultaneous alarm from multi- zones;
  • Sensitivity adjustable:Each zone has 255 degree sensitivity level, three patterns: High, middle, Low for different requirements. Preset the metal size, weight, volume, location to exclude the coin, key, belt.
  • Sound Alarm:1-25s alarm time, 255 different sound volume for choose
  • LED light alarm:LED bar graph on left and right door frame, visible alarm simultaneously to ascertain the layout of metal articles

Application:

Banks, Prison, Embassies, Entertainment environments, Gymnasiums, Exhibition Centers , police, border custom

Packaging:

Door panel Packing Size: 2290*560*190mm

Control Box Packing Size: 760*380*260mm

Our Quality and Services:

1. 100% QC test before delivery

2. 2 years warranty for the repair and replace parts,we supply service online all the time,also supply trainning free in our factory.

3. Our engineer can go to install and make maintenance if need

Payment details:

1. Payment terms:

1) Small value 100% in advance.

2) Big value, 30% deposit, 70% before delivery

2. We can accept T/T, Western union, Paypal, L/C etc.

Delivery details:

1. Production Time:
Item will be shipped within 4~12 working days (except weekends and holidays) as soon as your Payment arrived. We are always serious on the delivery time, all orders will be checked by us carefully to make sure there is no delay on the shipment, no problems on quality, no un-satisfaction on the packaging

2. Shipping Methods

1). If order is not very big, we will send you by UPS, DHL, FEDEX, or TNT. Tracking number will be advised after delivery, all of express lead time is about 3-5 working days.

2). If order is big, we will advise you use Air Freight or Sea freight.
