Uvss Under Vehicle Inspection Scanner Car Security Check IP68 Protection Level

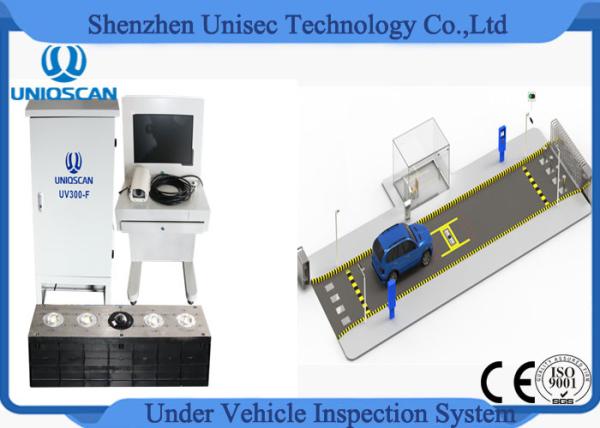

UV300F Under Vehicle Inspection System is the fixed solution for the fully automatic identification of threats

or modifications to a vehicle's undercarriage.

It can quickly and accurately identify threats, contraband objects and stowaway who are hidden at the Bottom.

UV300F adopts embedded installation way. UV300F Under Vehicle Inspection System is strictly designated on

the conception of maintenance free and application in all weather with IP68 Waterproof grade. These make sure the system can work steadily in any climate.

Parameters:
1. Store or load time: <1 second;
2. Vehicle Image local magnification: > 2 times;
3. Vehicle Image scaling: 16 times;
4. Vehicle image display mode: large format transverse;
5. Vehicle image storage format: BMP or JPEG;
6. System interface language: English (can be customized);
7. Display resolution: 1920 * 1080P
8. Communication interface: RS232/RS422;
9. Scene image display: ≥1 channel
10. Speed identification: when the vehicle pass the scanner and stops suddenly, then restart, the device can identify automatically, system will display the complete vehicle image
11. Scan mode: linear scanning, the ground sensor coil trigger;
12. Vehicle speed: 1-60km/h, suggest speed : less than 30km/h
13. View angle: 175 degrees
14. Image Longitudinal resolution: 2048 pixels CCD;
15. Scanner connecting cable: 100 meters (can be customized)
16. Lighting components : Four single sealed LED surface light source ;
Life : 100,000h
17. Under Vehicle image scanner with a unique open-wide field scan design;
18. Working voltage: DC24V
19. Power Supply:AC110V-240V/50-60Hz 20. Structure design:single sealed design；
20. Structure design:single sealed design；
21. Loading weight: 30 Tons
22. Scanner size: 1200*350*210mm
23. Weight: 180kg
24. Environment temperature: -40 degrees - +70 degrees
25. License plate recognition (need customer provide the SDK LPR software of the exported country, we can integrate it to the UVSS without extra cost )

Computer:
1. Display:22 inch color LCD Screen
2. CPU:INTEL core Quad-Core Processor
3. Motherboard : dedicated motherboard
4. Memory : DDR3 , more than 4GB
5. Hard disk : 500G high-speed hard disk
6. Graphics card : DDR3, 192BIT independent graphics
7. Appearance: stainless steel composite material
8. Working current: 3A
9. Working temperature : -20 ℃ ~ 55 ℃

More details , welcome to contact us.
