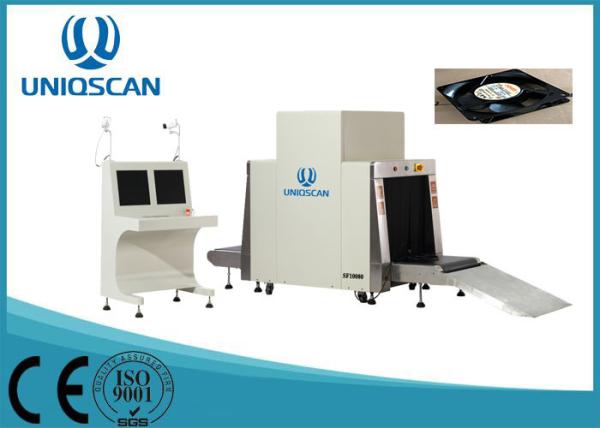

Screening Machine X Ray Luggage Scanner, Parcel Paggage Baggage inspection Checking system for Alarm System

Brief Introduction

The operation system is advanced technology which combined modern computer software technology, optical technology, electronic technology, vision technology, sensor technology

Japan HAMMATSU detecting sensor, Swiss INTERRoll electronic Roller

Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time

Function Description

1 X-ray sensor: l type photo-diode array detector, 12bit

2 Monitor: high resolution 19inch color lcd display

3 Color quality: 24 bit real colors

4 Edge enhancement: object contour edge is more distinct

5 Super image enhancement: image detail is more distinct

6 High penetrate strength display: increase brightness of dark area in image to display object which is behind high absorbility mass distinctly

7Low penetrate strength display: increase contrast of low absorbtivity mass (easy to penetrate) to display it distinctly

8 Virtuality 3D-imaging, live zoom, and zoom out.

9 Grey level optimization, live pseudo-color, humanization design

10 Ele-shooting, multiframe superposition, easy and fast.

11. Positive and negative image show with adjusted edge.

12. Dynamic memory, print, DVD reader etc output mode

13. soldered ball measuring technique

14. bubble area measuring, Bubble proportion calculation, can do coordinate setting and statistics for angle, radius, solder joint area, and welding point.

15. Control by mouse, soft keyboard. Very convenient.

16. Image storage: with timing calculation, can store 500,000pcs pictures.

X-ray Generator

Product advantage

1 Alarm by sounds & light::Alarm by sounds and light when conform to condition.

2 Network interface:Could be connect local area network and support multi-terminal check baggage at same times

3 Safety ray:Transmit ray under automatic control, avoids the miss

4 Image monitoring for user-friendly:The monitor use fold, rotary system, operators adjusts the monitor position willfully according to own need, reduces wearily.

5 Simple operation by mouse:Without keyboard and work table, control by mouse, save space.

6 Turn off by a key control:Turn off the machine only need one step:revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.

7 Big size image can be one-time forming.

8 based on medical CT scanning image technology; 1000M channel high speed data acquisition.

9 input automatically protection is safer.

10 big size screen display, 24 inch medical screen display, provides focus image, exact

11 bservation and easy to tell images, also can be full image.

12 keyboard and mouse control
