Specifications
Brand Name :
Uniqscan
Model Number :
SF8065
Certification :
CE. ISO,
Place of Origin :
Guangdong, China
MOQ :
1 SET
Price :
USD 15600-16000 SET
Payment Terms :
T/T, Western Union
Supply Ability :
500 set per month
Delivery Time :
5-7 working days
Packaging Details :
Package(mm):2000*1210*1690(machine) ;1440*1250*710(control)
Conveyor Speed :
0.22m/s
Type :
DUAL energy
Wire Resolution :
40AWG
Tunnel Size :
800(W)*650(H) mm
Conveyor :
200kg
Steel Penetration :
38mm
Film Safety :
For ISO 1600
Warranty :
1 years
Description

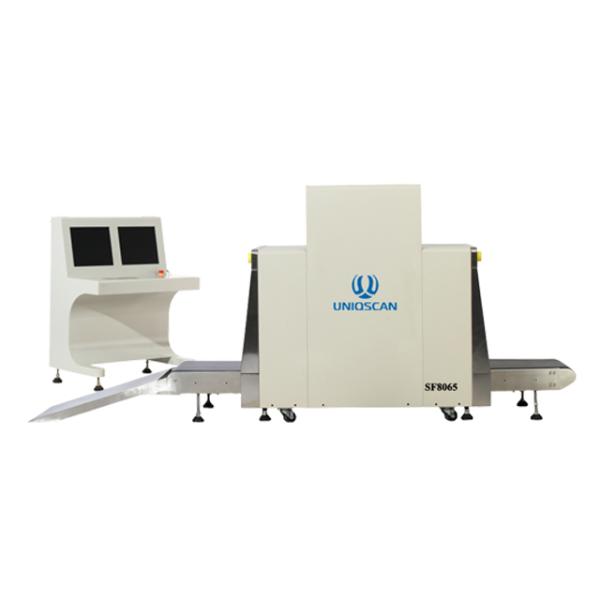

38MM Steel Penetration Metro Parcel Luggage Scanner Detector SF8065

General Specifications:

Tunnel Size : 800(W) ×650 (H) mm
Power Requirement: 220V AC (±10%) 50±3Hz
Power consumption: 1.0KW (Max)
Noise level: <60dB
Conveyor Speed: 0.22m/s
Conveyor Max Load: 200 kg
Wire Resolution: 40AWG
Spatial Resolution: 1.0mm Horizontal and Vertical
Steel Penetration: 38mm
Single inspection dosage: < 1.15μGy
Leakage radiation: <0.14µGy/h
Film Safety: Guarantee ISO1600 Film

X-Ray Generator Specifications:

Tube Current: 0.4~1.2mA
Anode Voltage: 100-160KV
Detector: L-shaped Array
Cooling: Sealed oil bath with forced air
Duty Cycle: Rated for 100%Duty Cycle
Beam Angle: 80°

Computer Specification:

Processor: E5800 Dual-core 3.2G 45nm.2M L2 CAHE,FSB 800MHZ
Memory: 2G DDR3 133MHZ 240PIN
Hard Disk : 500G

Special features:
Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
Safety ray: Ray is transmitted under automatic control, avoiding the error
One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
Eagle eye: Capable of expediently observing the magnifying area
Self-diagnosis function: Give message automatically if malfunction for prompt maintenance

Detailed Pictures:

SF8065 1.0KW 38MM Steel Metro Parcel Luggage Security Scanner

SF8065 1.0KW 38MM Steel Metro Parcel Luggage Security Scanner

Applications:

  • Airports, seaports and public transportation
  • Banks and financial institutions
  • Schools and sports stadiums
  • Churches and lecture halls
  • Hospital ER and MRI room
  • Hotels, conference centers and casinos
  • Courthouses, police facilities and government
  • Prisons and jails
  • Embassies and broadcast studios
  • Power plant and research center
  • Military bases

Our service

1. Provide free technical training, guidance and information of our products and accessories.
2. Our technical staff could instruct our customers on the installation of barrier gates, tripod turnstiles, flap barriers, swing barriers, full height turnstiles, parking barrier lock and etc, and deal with technical and quality issues.
3. We guarantee more than 10 years’ service life of our products with 1 years’ warranty and life maintenance.
4. Once receive the customer requirements and complaints, we will response within 24 hours.
5. Free maintenance and replacement will be provided if defects result from quality failure of our product.
6. Our company will provide technical services by phone, fax, e-mail, skype etc., please refer to the contact details.
7. Our company will implement the contract strictly; deliver the products to location specified by our customers for free in accordance with the mode of transportation.
8. Our company will provide perfect after-sale services and technical support.

Company Information:

Shenzhen Uniqscan Technology Co., Ltd is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine tehnology, metal detection technology, explosive detection, liquid detection and relative security services.
