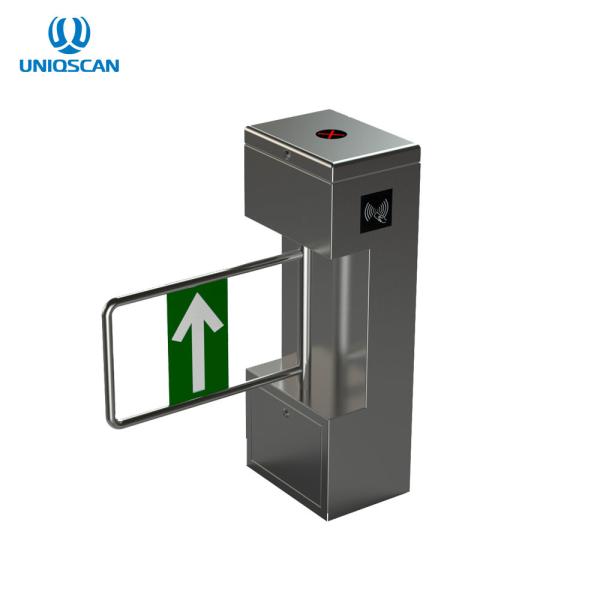

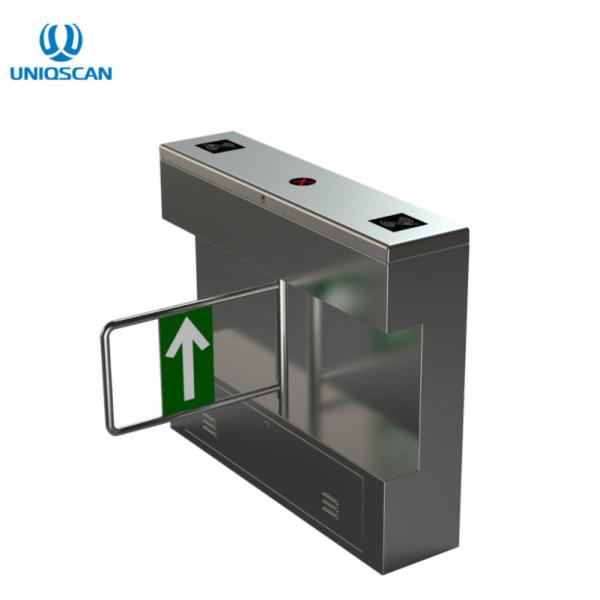

180 Degrees Flap Barrier Gate Stainless Steel Turnstile With Card Reader
180 Degrees Flap Barrier Gate Stainless Steel Turnstile With Card Reader
Specifications
Brand Name :
UNIQSCAN
Model Number :
UT570
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
T/T, Western Union
Delivery Time :
Shipment will take 15 days after receipt of full payment
Packaging Details :
carton package
Product name :
swing barrier gate
Material :
304# stainless steel
Lane width :
≤1200mm
Swing arm transmission angle :
180 degrees
type :
brushless moter
speed :
5-40 person/min
Thickness :
1.8mm
Dimension :
dia168*1050mm
Description

180 Degrees Flap Barrier Gate Stainless Steel Turnstile With Card Reader

Swing Turnstile Barrier Gate/Turnstile Gate With Card Reader/swing barrier gate
Product Description

1. This series of turnstile adopt the unique technology of our company---the precise photo electricity limit and gear to orient the closure. The turnstile be unlocked and reset because of the specific motor. The closure is very precise and stable. This series of turnstile adopt standard electricity socket. It can read boom code card, ID card, IC card and so on.
2. There is a series of turnstiles. You can choose the item and specificalion. They can be used in school, metro and chamber and soon. This series is of very high-tech. In order lo guarantee it can run safely, please carefully read this instruclion!

Feature of the product:

1. Stainless steel box, box-type bevel shape, novel and beautiful, durable.
2. Waterproof, sunscreen, anti-temperature, anti-cold.
3. Access Prompt function:Red and green light prompt the passing information.
4. The programmable gates control state, with a variety of operating modes you can choose, you can set aone-way or two-way control
5. Compatible IC, ID, magnetic card, bar code card, and other control equipment.
6. Power failure emergency function after power channel automatically open, closed automatically after power-on, to meet the
special needs of the user and the fire safety requirements
7. The control panel with counting function, LED digital display function (optional)
8. The standard input and output interface, is the best choice for system integrators
9. With automatic reset function, gate, not prevailing within the stipulated time, the system will automatically cancel the access
permissions of the user.(the standard is gate turns on 5 seconds will be automatically reset)
10. Pinch, anti bumps function, Blockage when in the process of the swing arm reset within a predetermined time, click stop
working automatically, the default reset again after a delay, and the intensity is very small(2kg)
11. Sound, light alarm function: with trespassing, trailing alarm
12. Scour protection function ,when the gate signal is not received, the stick is automatically locked
13. Fault detection and alarm function, user-friendly maintenance and use
Size Information
Product name
Swing Barrier Gate
Dimension
420*330*980 mm
Material
304 # stainless steel
Tickness
Head: 1.8mm
Input Voltage
AC220±10%,50HZ
Driving motor
24V
Traffic speed
35-40 persons/min
Flap Opening/Closing Time
0.2s
Channel width
≤1200mm
Swing arm transmission angle
180 degrees
Operating temperature
-30ºC-70ºC
Communication interface
RS485/TCP/IP
Working environment
indoor and outdoor
Manufacture Specification
Now UNIQSCAN products have CE, ROHS and FCC certifications. We strictly in accordance with the ISO9001 quality standard requirements, and in future, we will continue make efforts to high standard to satisfy our respected customers. Quality is the Life, we’ll always keep in mind.
Recommending Styles
$200 - $ 500 Pieces
1Pieces (MOQ)
180 Degrees Flap Barrier Gate Stainless Steel Turnstile With Card Reader
$ 200 - $500 Pieces
1 Pieces (MOQ)
Company Introduction
Shenzhen Unisec Technology Co., Ltd, is a professional security products manufacturer, brand ‘UNIQSCAN’. We have more than 2000 ㎡ metal detector & turnstile factory , and 5000㎡ x-ray baggage scanner cooperation factory in Shenzhen China. We have many years.export experiences and have professional sales team to service our respectable customers from the worldwide. UNIQSCAN owns the intellectual property rights (IPR) to our core technologies, specialized in the development and research in the x-ray image technology, High sensitivity and stability metal detection ,explosive detection ,liquid detection ,and relative integration security solutions .With this ,we are capable to offer OEM & ODM services to create more value for long term cooperation .
