19 Inch Color LCD IPC X Ray Baggage Machine 1.0mm Horizontal Vertical
19 Inch Color LCD IPC X Ray Baggage Machine 1.0mm Horizontal Vertical
19 Inch Color LCD IPC X Ray Baggage Machine 1.0mm Horizontal Vertical
19 Inch Color LCD IPC X Ray Baggage Machine 1.0mm Horizontal Vertical
19 Inch Color LCD IPC X Ray Baggage Machine 1.0mm Horizontal Vertical
19 Inch Color LCD IPC X Ray Baggage Machine 1.0mm Horizontal Vertical
19 Inch Color LCD IPC X Ray Baggage Machine 1.0mm Horizontal Vertical
19 Inch Color LCD IPC X Ray Baggage Machine 1.0mm Horizontal Vertical
19 Inch Color LCD IPC X Ray Baggage Machine 1.0mm Horizontal Vertical
19 Inch Color LCD IPC X Ray Baggage Machine 1.0mm Horizontal Vertical
Specifications
Brand Name :
uniqscan
Model Number :
SF5030C
Certification :
ce iso
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Delivery Time :
15-20 working days after full payment
Packaging Details :
wooden box package
Single gross weight :
425kg
Display :
19 inch Color LCD IPC
penetration :
43mm
Spatial Resolution :
1.0mm Horizontal and Vertical
Generator cooling :
Sealed oil bath with forced air/100%
Relative Humidity :
20 to 95% non-condensing
Description

19 Inch Color LCD IPC X Ray Baggage Machine 1.0mm Horizontal Vertical

X-RAY Sensor: L-shaped array detector, 24bit

Image Performance System:
1. Display: High-resolution 19 inch color LCD display
2. Color quality: 24-Bit real colors based on materials
3. Edge enhancement: Object contour edge is more distinct
4. Super image enhancement: Image detail is more distinct
5. High penetration display: Increase the contrast of bright area in image to make the area appear more clearly
6. Low penetration display: Increase the contrast of dark area in image to make the area appear more clearly.
7. Magnifier: Partial magnifying function
8. Brightening/dimming: Increase/Decrease brightness of image
9. Image recurrence: Display the previous twenty images and process any one of them
10. Image restoration: Restore image to initial status
11. Image storage: Real-time store any image and process it in operation status

Multi-energy: High/low energy: Switch from high energy to low energy
Color material identification: Organic objects in orange, inorganic objects in blue, mixture in green
Assist to detect drug and explosive powder

Special features:
1. Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
2. Safety ray: Ray is transmitted under automatic control, avoiding the error
3. One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
4. Eagle eye: Capable of expediently observing the magnifying area
5. Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
6. TIP and training software , free programmable keys , real time diagnostic
7. Display date/time , baggage counter , User ID number
8. Review feature , recall previously image , zoom overview , step less zoom
19 Inch Color LCD IPC X Ray Baggage Machine 1.0mm Horizontal Vertical
Specification
Specification
Tunnel Size :
500 (W) ×300 (H) mm
Conveyor Speed:
0.22m/s
Conveyor Max Load:
150 kg
Single inspection dosage:
<1.32μG
Film Safety:
Guarantee ISO1600 Film
Leakage radiation:
<0.06µGy/h
Steel Penetration:
38mm
Wire Resolution:
40AWG
Spatial Resolution:
1.0mm Horizontal and Vertical
Power Requirement:
220V AC (±10%) 50±3Hz
Tube Current:
0.4-1.2mA(adjustable)
Anode Voltage:
140-160KV(adjustable)
Angle:
80°
Generator cooling:
Sealed oil bath with forced air/100%
Storage Temperature:
-20℃ to 60℃
Operating Temperature:
0℃ to 45℃
Relative Humidity:
20 to 95% non-condensing
System Power:
220 VAC (±10%) 50±3HZ
Power wastage:
1.0 KW (Max)
Noise:
<55DB

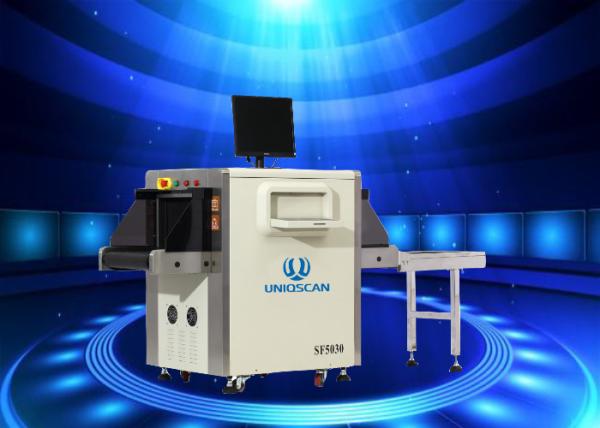

Product photo
