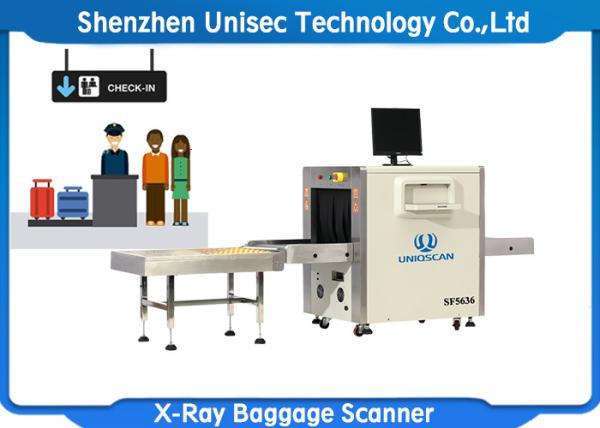

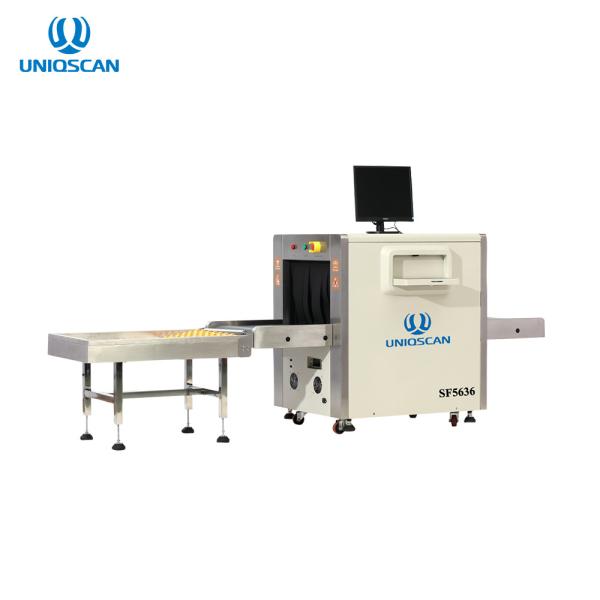

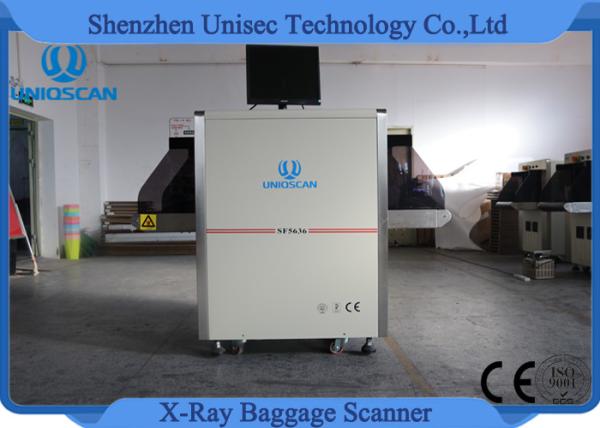

0.22m/S Security Baggage Scanner For Hotel Metro Lobby Security Checking
0.22m/S Security Baggage Scanner For Hotel Metro Lobby Security Checking
0.22m/S Security Baggage Scanner For Hotel Metro Lobby Security Checking
0.22m/S Security Baggage Scanner For Hotel Metro Lobby Security Checking
0.22m/S Security Baggage Scanner For Hotel Metro Lobby Security Checking
0.22m/S Security Baggage Scanner For Hotel Metro Lobby Security Checking
0.22m/S Security Baggage Scanner For Hotel Metro Lobby Security Checking
0.22m/S Security Baggage Scanner For Hotel Metro Lobby Security Checking
0.22m/S Security Baggage Scanner For Hotel Metro Lobby Security Checking
0.22m/S Security Baggage Scanner For Hotel Metro Lobby Security Checking
Specifications
Brand Name :
UNIQSCAN
Model Number :
SF5636
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Delivery Time :
15-20 working days after full payment
Packaging Details :
wooden box package
Alarm Form :
Display Alarm
Steel Penetration :
40mm
Film Safety :
for ISO 1600
Anode Voltage :
140~160kv(Adjustable)
Orientation :
Upward
Conveyor Speed :
0.22m/S
Description
0.22m/S Security Baggage Scanner For Hotel Metro Lobby Security Checking
General Specifications
Tunnel Size : 560 (W) ×360 (H) mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 150 kg
Leakage radiation: < 0.06μGy/h
Single inspection dosage: < 1.01μGy
Wire Resolution: 40AWG (0.0787mm metal line)
Steel Penetration: 40 mm
Film Safety: For ISO 1600

X-ray Generator
Orientation: Upward
Tube Current: 0.4~1.25MA(adjustable)
Anode Voltage: 140-160 KV(adjustable)
Angle: 80°

Generator cooling/working periods:Sealed oil bath with forced air/100%
Operating Environment
Storage Temperature: -20 ℃ to 60 ℃
Operating Temperature: 0 ℃ to 45 ℃
Relative Humidity: 20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ

X-RAY Sensor: L-shaped array detector, 24bit, Dual energy
Computer Specification:
Processor:I3-4340(Dual core four thread) 3.6 GHZ 22nm 54W
Memory:4GDDR3 Loptop Memory
Hard Disk : 1T
Image Performance System:
Display : High-resolution 19 inch color LCD screen , 1280*1024 color display resolution; 24 bit/pixel color display resolution
Zoom:64 Times Enlarge,Whole screen continuous observation
Color quality: 24-Bit real colors based on materials , 24 Visible Levels , 4096 Gray Level
Image Storage: 200,000 pictures in real time (can be customized)
Edge enhancement: Object contour edge is more distinct
Super image enhancement: Image detail is more distinct
High penetration display: Increase the contrast of bright area in image to make the area that is easy to
penetrate appear more clearly
Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to
penetrate appear more clearly
Magnifier:Partial magnifying function
Brightening/diming: Increase/Decrease brightness of image
Image recurrence: Display the previous twenty images and process any one of them
Image restoration :Restore image to initial status
Multi-energy:High/Low energy: Switch from high energy to low energy
Color material identification:Organic objects in orange,inorganic objects in blue,mixture in green.Assist to detect drug and explosive powder
0.22m/S Security Baggage Scanner For Hotel Metro Lobby Security Checking
Special features:
Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
Safety ray: Ray is transmitted under automatic control, avoiding the error
One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
Eagle eye: Capable of expediently observing the magnifying area
Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
TIP and training software , free programmable keys , real time diagnostic
Display date/time , baggage counter , User ID number
Review feature , recall previously image , zoom overview , step less zoom
0.22m/S Security Baggage Scanner For Hotel Metro Lobby Security Checking
