Tamper Proof Archway Metal Detector , 18 Zone Remote Control Metal Walk Through Gate
Tamper Proof Archway Metal Detector , 18 Zone Remote Control Metal Walk Through Gate
Tamper Proof Archway Metal Detector , 18 Zone Remote Control Metal Walk Through Gate
Tamper Proof Archway Metal Detector , 18 Zone Remote Control Metal Walk Through Gate
Specifications
Brand Name :
PEACE GUARDER
Model Number :
SD-600D
Certification :
CE,ROHS
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500UNITS PER MONTH
Delivery Time :
Within 5-10 Working days after received the payment
Packaging Details :
Carton box or Standard export wooden box
Sensitivity Level :
0-255
Counter :
Directional
Warranty :
2years
Screen :
5.7" LCD screen
Power Supply :
100-240V
Optional :
Battery Backup , Camera
Description

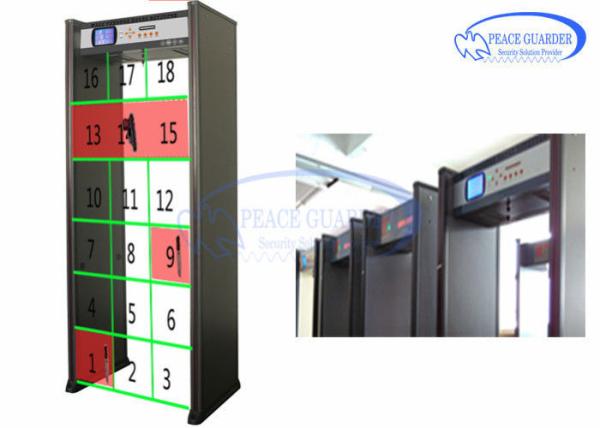

18 Detection Zone Walk Through Metal Detector Gate With Directional Counter and Remote Control PG600M

The PG600M is a metal detector gate with 18detection zone .

We can use a Remote control to set up the gate . in this way, it's easier to operate .

And we can see all the parameter on the big LCD screen.

Features

1) ​Multidimensional coil design (18 pinpoint zones) provides superior detection and location of guns, knives and other flat and rod-shaped weapons regardless of orientation.

2) Circuitry with advanced Digital Signal Processor (DSP) technology locates even small, hard-to-find, floor level weapons.

3) Individual zone boost adjustments allow for customization of detection characteristics and/or compensation for metallic environmental challenges.

4) Can be connected to the PC for the communication .

5) With REMOTE Control

6) Optional interface for the CCTV, Monitor

Specifications

♦ Operating Temperatures : -4°F (-20°C) to + 158°F (70°C); Humidity: To 95% non-condensing
♦ Power : Fully automatic 100 to 240 VAC, 50 Hertz, 15 watts; no rewiring, switching or adjustments required. Power supply meets UL, CE,FCC standards.
♦ Weatherproofing / Foreign Object Protection Standards
♦ Tamper-Proof : All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics.
♦ Construction : Attractive scratch and mar-resistant laminate. Detection Heads and Support: Heavy duty aluminum.
♦ Control Outputs : Solid state switches (low voltage AC or DC) for operating external alarms and control devices.
♦ Traffic Counter : Counter tracks the number of patrons that have passed through the detector, the number of alarms and calculates alarm percentage.
♦ Synchronization : Dual channels and DSP circuitry allow several PG600M's to operate simultaneously in close proximity to one another.
♦ Interference Suppression : Special DSP built-in circuitry eliminates effects from x-ray monitors and other potential electrical interference sources.
♦ Alarms : Audible tone and volume adjustable. Bright LED visual alarm.
♦ Target Pinpointing Lights : 18 distinct zones are displayed with 2 independent columns of LED's located on exit side of PG600M.
♦ Pacing Lights : International symbols
♦ Warranty : Limited 24 months

Technical Parameters

Power Supply : 220V/AC

Power : <15W

External Dimension : 2200mm(H)*820mm(W)*550mm(D)

Passageway Dimension : 2000mm(H)*700mm(W)*550mm(D)

Work environment : -20°C- +70°C

Standard : GB15210-2003<WALK THROUGH METAL DETECTOR>

Standard configuration
Main Case ONE
Left Probe ONE
Right Probe ONE
Power Line ONE
Screws Eight
Instruction ONE (Including one Certificate of Quality & Guarantee Repair List)

Packing
Main Case 0.755m*0.485m*0.255m (Carton)
Probe 2.37m*0.68m*0.22m(Carton)
Total Volume 0.38CBM
G.W. 70kg (Approx.)


Examining Standard

Electrical Equipments standardized by EN60950.

Radiation standardized by EN50081-1.

Anti-inference standardized by EB50082.

Execute the standard of National Standard of Metal Detector
