Sharp Helical Cbt60 Galvanized Concertina Wire Hot Rich Galvanized Steel
Sharp Helical Cbt60 Galvanized Concertina Wire Hot Rich Galvanized Steel
Sharp Helical Cbt60 Galvanized Concertina Wire Hot Rich Galvanized Steel
Sharp Helical Cbt60 Galvanized Concertina Wire Hot Rich Galvanized Steel
Sharp Helical Cbt60 Galvanized Concertina Wire Hot Rich Galvanized Steel
Sharp Helical Cbt60 Galvanized Concertina Wire Hot Rich Galvanized Steel
Specifications
Brand Name :
ORIENTLAND
Model Number :
ORCRW033
Certification :
ISO, SGS
Place of Origin :
Hebei, China
MOQ :
2 tons
Price :
1039-1599USD per ton
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 tons per day
Delivery Time :
7-20days
Packaging Details :
Plastic woven bag, carton packing
Product Name :
sharp helical barbed wire type concertina CBT60 hot rich galvanized steel
Type :
Concertina Razor Wire
Core Wire :
Hot dipped galvanized steel wire
Blade :
Hot dipped Galvanized cold-rolled steel strip
Hot galvanized zinc rate :
275g/㎡
Barbed type :
CBT-60
Coil diameter :
70cm
Staples per spiral :
5
Length :
14-16m
Number of Loops :
54-56loops
Application :
Militaty use, airport, court, garden protection, fence
Sample :
Free
Description

Sharp Helical Barbed Wire Type Concertina CBT60 Hot Rich Galvanized Steel

Products Introduction:

The Sharp Helical Barbed Wire Type Concertina CBT60 is recommended and specified around the world as a premier physical perimeter barrier that offers unequaled physical protection and psychological deterrence.

The CBT-60 has bright and beautiful blade types, offers good corrosion resistance. Razor wire CBT-60 can be supplied in straight line razor wire, single coils razor wire or crossed concertina razor coils.

But mostly the CBT-60 is made to single coil razor wire. Single coil razor Wire is one kind of unclipped razor wire, sometimes referred to as “Helical” Razor wire is simply one single strand of Razor wire formed into a spiral. The problem with this is when extended a gap is created (as in the below picture) and intruders can spread the Razor wire apart to step through it.

Sharp Helical Cbt60 Galvanized Concertina Wire Hot Rich Galvanized Steel

Selecting clipped or unclipped Razor wire?

The simple answer is Clipped Razor wire offers a denser profile that has no gaps of a sufficient size for someone to be able to squeeze through.

Each loop is clipped to the next in either 3 or 5 places along the whole length of the concertina coil and therefore cant be over stretched.

Sharp Helical Cbt60 Galvanized Concertina Wire Hot Rich Galvanized Steel

Specification of Single Coil Razor Wire

Coil diameter No. of Loops Stretched Length Blade Type Notes
450mm 33 8m CBT-60, CBT-65 Single coil
500mm 41 10m CBT-60, CBT-65 Single coil
700mm 41 10m CBT-60, CBT-65 Single coil
900mm 53 13m CBT-60, CBT-65 Single coil

Sharp Helical Cbt60 Galvanized Concertina Wire Hot Rich Galvanized Steel

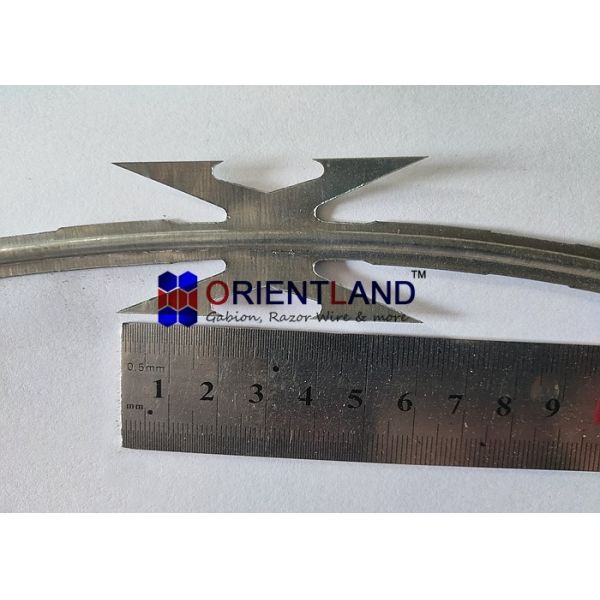

Thickness Wire Dia Barb Length Barb Width Barb Spacing
0.6mm±0.05mm 2.5mm±0.1mm 60mm±2mm 32mm±1mm 96mm±2mm

Sharp Helical Cbt60 Galvanized Concertina Wire Hot Rich Galvanized Steel

Packing of the Single Coil Raozr Wire

  • Waterproof paper
  • Carton

Sharp Helical Cbt60 Galvanized Concertina Wire Hot Rich Galvanized Steel

Application: Widely used in military field, prisons, detention houses, government buildings and other national security facilities. Also fencing of residences, villa wall and windows, express way, railway, national border lines, etc.

Sharp Helical Cbt60 Galvanized Concertina Wire Hot Rich Galvanized Steel
