4.0mm Spiral Wire Connection Welded Gabion Baskets Galfan Coated

Products Description:

Welded mesh gabions are manufactured from a square mesh, normally of opening size 50mm×50mm, 75.0mm × 75.0mm where the longitudinal wires are welded to the cross wires at their intersection points. Also manufactured from a rectangular mesh, normally of opening size 50mm×100mm, 50mm×200mm.

This durable, weather-resistant welded gabion basket made of hot dipped galvanised wire captivates with its filigree design as well as its wide range of applications. Filled with stones or similar materials and combined with other gabion baskets these wire constructs are ideal to be used as garden walls, noise barriers or for counteracting erosion as riverbank protection. These wire mesh cages can be further used as decorative garden elements, such as raised beds or seatings.

Surface treatment of the Welded Gabion basket:

• PVC powder paint after welded (color can be custmoized)
• PVC powder coated after welded(color can be custmoized)
• Hot dipped galvanized after welded

Aperture of the Welded Gabion

Spiral Wire

Steps of Welded Gabion Installation:

Step 1, Let two adjacent gabion panels be perpendicular to the ground, and the two sides should be at a 90 degrees angle as below picture. Prepare the spiral wire to align with the panels joint, and adjust the angle to make the helical wire falls by itself.

Step 2, Move the connected panels to the bottom panel, align to the joints, insert the right helical wire. Or install the surrounding mesh panels first, then assemble the bottom. Could turn over the connected panels direction, so the spiral wire will be falls by it's own weight.

Step 3, Continue to install the side panel, because the weight of mesh panels is increased at this time, it is not suitable for one person to move, so flip the cage 90 degrees and manually thread the spiral wire.

Step 4, Install the diaphragm, prepare the right helical wire according to the diaphragm edge length. Could turned 90 degrees of the bottom, then insert the helical wire by hand. The vertical part directly thread the spiral wire.

Step 5, Installed the last side panels.

Step 6, Put the gabion stiffener / bracing wire to the right point(the example case is too small and don't need the stiffener).

Step 7, Put kinds of stones or other decorative material in to the basket. To ensure the basket flat and beautiful, it is required to installed parallel reinforcement bars outside of the cage. Then installed the lid at last.

Step 8, The installation is complete.

Features of Welded Gabions:

• Easy for installation. No special technology needed.
• Economic. Just fill the stone into the gabions and seal it.
• Weather proof under natural destroy, corrosion resistant.
• No collapse even under big scope of deforming.
• Sludges in the stones is good for plant growing.
• Mixed to form a integrity with the natural environment.
• Less transport freight. It can be folded together for transport and further installation.

Welded Gabion Basket Application:

• Gabion retaining wall
• Culvert headwall.
• Bridge abutments.
• Flood control.
• Gabion fireplace.
• Bridge wing wall.
• Gabion es.
• Gabion Noise Barrier
• Channel lining.
• Soil erosion control.
• Bank protection.
• Weirs.
• Drop prevention structure.
• Gabion cladding.

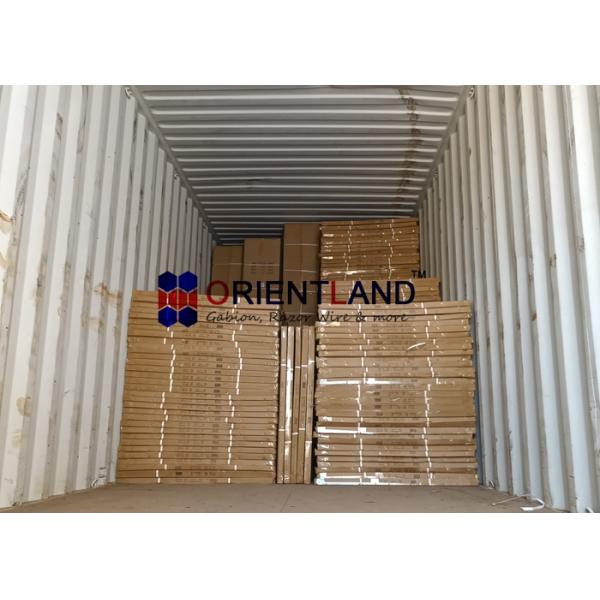

Packing and container loading: Each unit put into a poly bag then packed with corrugated carton
