Indoor Dot Matrix Led Display 8X8 Stable Performance Energy Saving
Indoor Dot Matrix Led Display 8X8 Stable Performance Energy Saving
Indoor Dot Matrix Led Display 8X8 Stable Performance Energy Saving
Indoor Dot Matrix Led Display 8X8 Stable Performance Energy Saving
Indoor Dot Matrix Led Display 8X8 Stable Performance Energy Saving
Indoor Dot Matrix Led Display 8X8 Stable Performance Energy Saving
Indoor Dot Matrix Led Display 8X8 Stable Performance Energy Saving
Indoor Dot Matrix Led Display 8X8 Stable Performance Energy Saving
Specifications
Brand Name :
LIGHTBO
Model Number :
LB02881BWH1B
Certification :
RoHS&SGS&ISO
Place of Origin :
Shenzhen,China
MOQ :
1000PCS
Price :
negotiable
Payment Terms :
TT in advance& Western Union
Delivery Time :
10-15Days
Packaging Details :
EPE+CARTON
Supply Ability :
50000PCS/Day
Character height :
0.8" ( 20.2mm)
Package dimension :
20.2 x 20.2x5.9 mm
Emitting colour :
Ultra white
Description

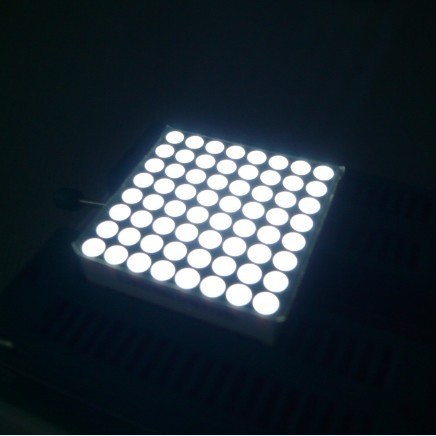

Indoor Dot Matrix Led Display 8 X 8 Stable Performance Energy saving

Key Specifications/Special Features:

Character height:0.8" ( 20.2mm)

Package dimension:20.2 x 20.2x5.9 mm

High-efficiency

Low-power consumption

Extremely low current

Low-development cost

Big viewing angle vertically and horizontally

Stable performance

Continuous Uniform Segments

Easy mounting on PC Boards and socket

Long lifetime

Emitting colors: red, blue, green, amber, orange, yellow and white

Indoor Dot Matrix Led Display 8X8 Stable Performance Energy SavingIndoor Dot Matrix Led Display 8X8 Stable Performance Energy Saving

Indoor Dot Matrix Led Display 8X8 Stable Performance Energy SavingIndoor Dot Matrix Led Display 8X8 Stable Performance Energy Saving

Product Feature:

High dot intensity

Wide viewing angle

Bi- colors

Gray face White dot

RoHS compliant

Available option

Alternative face and dot color

Cropped terminal pins

Available emitting color

Low current version

Code:W-Ultra Bright White

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 2.8 3.5 V
Reverse Voltage(Per dice) Vr Ir=40uA 5 V
Luminous Intensty(Per dice) Iv If=20mA 100 120 mcd
Chromaticity Coordinates X If=20mA 0.29 0.33 nm
Chromaticity Coordinates Y If=20mA 0.29 0.33 nm
Peak Forward Current(Per dice)1/10 Duty Cycle,0.1ms Pulse Ifp 100 mA
Operating Temperature Range Torp -35℃～+85℃
Storage Temperature Range Tstg -35℃～+85℃
SolderTemperature 1.5mm below seating plane for 3 Seconds at 260℃
Absolute Maximum Rating at Ta=25℃

Indoor Dot Matrix Led Display 8X8 Stable Performance Energy Saving

Applications:

Suitable for digital displays and display screens, moving signs, message boards, lift position indicators and so on .

Why choose us?

1. Your inquiry related to our products will be replied in 24 hours.

2. Experienced staffs to answer your inquiries in fluent English.

3. Providing OEM and ODM service for more than 10 years.

4. Protection of your sales area, ideas of design and all your private information.

5. No matter big order or small order, we will serve you with best quality and best service.

6. Advanced equipment and good materials: ASM machine, excellent chips and epoxy resin.

7. If you become our VIP,you will enjoy more preferential policy.
