5mm 5x7 Dot Matrix Led Display Ultra Bright Yellow Widely for Moving Signs
5mm 5x7 Dot Matrix Led Display Ultra Bright Yellow Widely for Moving Signs
5mm 5x7 Dot Matrix Led Display Ultra Bright Yellow Widely for Moving Signs
5mm 5x7 Dot Matrix Led Display Ultra Bright Yellow Widely for Moving Signs
5mm 5x7 Dot Matrix Led Display Ultra Bright Yellow Widely for Moving Signs
5mm 5x7 Dot Matrix Led Display Ultra Bright Yellow Widely for Moving Signs
5mm 5x7 Dot Matrix Led Display Ultra Bright Yellow Widely for Moving Signs
5mm 5x7 Dot Matrix Led Display Ultra Bright Yellow Widely for Moving Signs
Specifications
Brand Name :
LIGHTBO
Model Number :
LB05771BY1B
Certification :
RoHS&SGS&ISO
Place of Origin :
Shenzhen,China
MOQ :
1000PCS
Price :
negotiable
Payment Terms :
TT in advance& Western Union
Supply Ability :
50000PCS/Day
Delivery Time :
10-15Days
Packaging Details :
EPE+CARTON
Package dimensions :
38.1 x 53.35x8.4mm
Character height :
2.1 inch (53.35mm)
Dot diameter :
5.0mm
Colour :
Ultra bright yellow
Description

5mm 5x7 Dot Matrix Led Display Ultra Bright Yellow Widely Used In Moving Signs

Product Description:

Outer dimensions:38.1 x 53.35x8.4mm

Digit height: 2.1 inch (53.35mm)

Polarity: Common anode/common cathode

Colour: Ultra Bright Yellow

Emitting colors:Available in red, yellow green, pure green, blue and white, amber, orange

Application:

Audio equipments or instrument panels

Home electronic appliances

Numeric displays

Multimedia products

General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on .

Why choose us?

1. Key raw materials are sourced from the US, Japan and Taiwan area

2. Full-automation ASM,such as automatic dice bonding and wire soldering machines

3. Specializing in the production of full range,full color LED digital tube,especially blue green and white

4. The OEM and ODM experiences has more than 10 years

5. It can be customized that according to customer requirement of varous size and color

6. Before sale and after sale services are good

7. Stable performance,prices is reasonable,delivery time is quickly

Product Feature:

1. High luminous intensity and reliability

2. High efficiency

3. Low power consumption

4. Extremely low current

5. Luminous evenly distributed on each segment

6. Big viewing angle

7. Stable performance

8. Long lifespan

9. Easy assembly

10. IC Compatible and Meet RoHS Compliamt

Code:Y-Ultra Bright Yellow

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 1.8 2.5 V
Reverse Voltage(Per dice) Vr Ir=10uA 5 V
Luminous Intensty(Per dice) Iv If=20mA 70 80 mcd
Spectrum With Of Half Value △λ If=20mA 30 nm
Wavelength Dλ If=20mA 585 595 nm
LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25℃

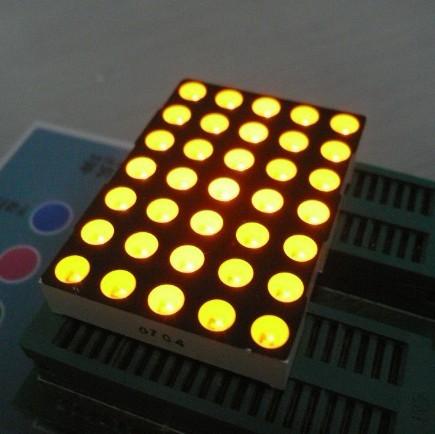

Product Pictures:

5mm 5x7 Dot Matrix Led Display Ultra Bright Yellow Widely for Moving Signs5mm 5x7 Dot Matrix Led Display Ultra Bright Yellow Widely for Moving Signs

5mm 5x7 Dot Matrix Led Display Ultra Bright Yellow Widely for Moving Signs5mm 5x7 Dot Matrix Led Display Ultra Bright Yellow Widely for Moving Signs
