Specifications
Brand Name :
LIGHTBO
Model Number :
datYxRfVjncU
Certification :
ISO9001&ROHS
Place of Origin :
SHENZHEN，CHINA
MOQ :
1000
Price :
Negotiate
Payment Terms :
TT , Western Union
Supply Ability :
50000pcs/days
Delivery Time :
15-20days
Packaging Details :
EPE+Carton
Polarity :
Common Cathode
Specification :
39.5*18mm
LED Color :
Ultra Bright White
Description

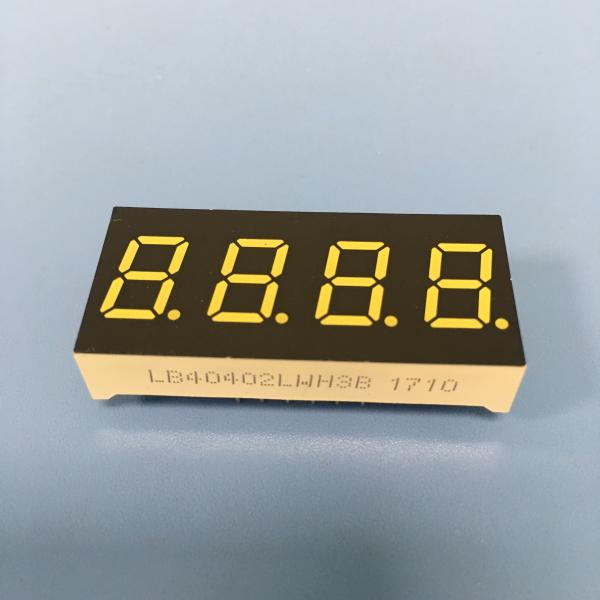

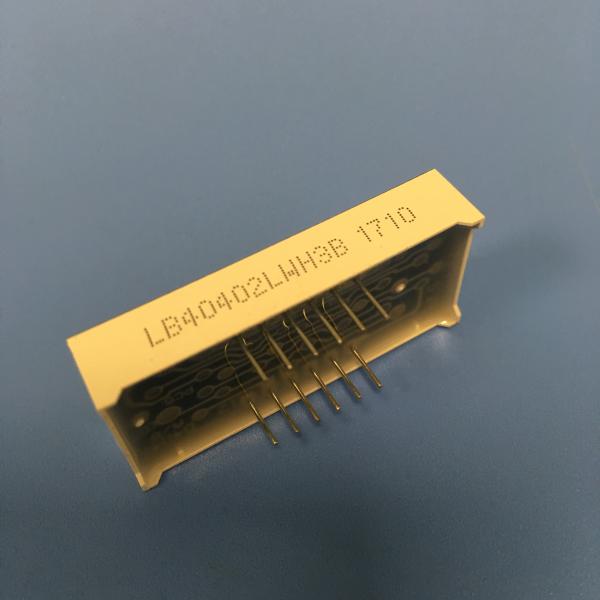

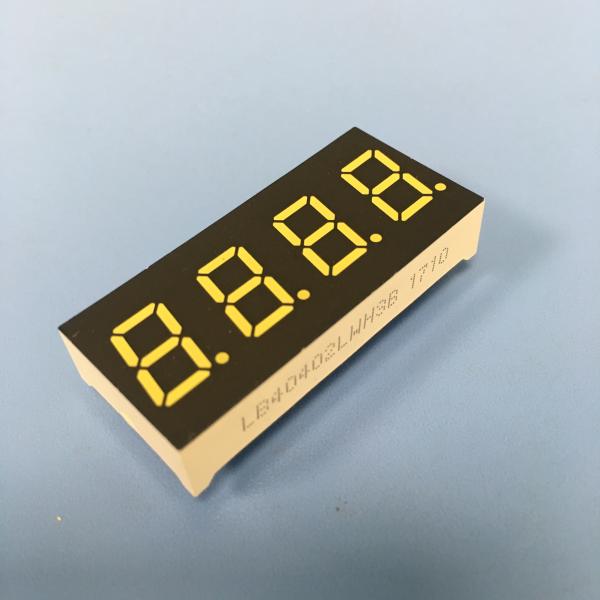

  • 0.4-inch 4-digit 7 segment led display

  • Character height: 0.4-inch (10.16mm)

  • Outer dimensions: 39.5*18 x 7 mm

  • Polarity:Common cathode

  • Made with yellow segments black surface

  • LED color : Ultra bright white

  • Color temprature: 6000-6800K

  • IV: 80-100mcd

  • VF:2.8-3.2V

  • Forward current:5-10mA/led

  • Emitting color : Available in red,blue,green,amber, orange, white

  • Absolute Maximum Ratings(Ta=25ºC)

    Parameter Symbol Ratings Unit
    Forward Current(per dice) Ipm 20 mA
    Reverse Voltage(per dice) Vr 5 V
    Power Dissipation(per dice) Pm 80 mW
    Operating Temperature Range Topr -40~+85 ºC
    Storage Temperature Range Tstg -40~+85 ºC
    Solder Temperature(≤3 seconds) Th 260 ºC
    Ultra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument PanelUltra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument PanelUltra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument PanelUltra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument Panel

    Code:Yellow Green- J

    Parameter Symbol Condition Min Typ Max Unit
    Forward Voltage Vf If=10mA 1.8   2.4 V
    Reverse Voltage Vr Ir=10uA 5     V
    Luminous Intensty Iv If=10mA 30   40 mcd
    Spectrum With Of Half Value △λ If=10mA   20   nm
    Wavelength Dλ If=10mA 569   574 nm
    Ultra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument PanelUltra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument PanelUltra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument PanelUltra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument Panel

    Code:Amber/Yellow -Y

    Parameter Symbol Condition Min Typ Max Unit
    Forward Voltage Vf If=10mA 1.8   2.5 V
    Reverse Voltage Vr Ir=10uA 5     V
    Luminous Intensty Iv If=10mA 60   80 mcd
    Spectrum With Of Half Value △λ If=10mA   20   nm
    Wavelength Dλ If=10mA 585   595 nm

    Ultra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument PanelUltra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument PanelUltra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument PanelUltra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument Panel

    Code:Orange -F

    Parameter Symbol Condition Min Typ Max Unit
    Forward Voltage Vf If=10mA 1.8   2.4 V
    Reverse Voltage Vr Ir=10uA 5     V
    Luminous Intensty Iv If=10mA 60   80 mcd
    Spectrum With Of Half Value △λ If=10mA   20   nm
    Wavelength Dλ If=10mA 600   605 nm
    Ultra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument PanelUltra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument PanelUltra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument PanelUltra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument Panel

    Code:Super Bright Red -R

    Parameter Symbol Condition Min Typ Max Unit
    Forward Voltage Vf If=10mA 1.8   2.2 V
    Reverse Voltage Vr Ir=10uA 5     V
    Luminous Intensty Iv If=10mA 50   60 mcd
    Spectrum With Of Half Value △λ If=10mA   20   nm
    Wavelength Dλ If=10mA 630   635 nm
    Ultra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument PanelUltra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument PanelUltra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument PanelUltra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument Panel

    Code:Ultra Bright Red -UR

    Parameter Symbol Condition Min Typ Max Unit
    Forward Voltage Vf If=10mA 1.8   2.2 V
    Reverse Voltage Vr Ir=10uA 5     V
    Luminous Intensty Iv If=10mA 80   100 mcd
    Spectrum With Of Half Value △λ If=10mA   20   nm
    Wavelength Dλ If=10mA 625   635 nm
    Ultra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument PanelUltra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument PanelUltra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument PanelUltra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument Panel

    Code:Pure Green -G

    Parameter Symbol Condition Min Typ Max Unit
    Forward Voltage Vf If=10mA 2.6   3.2 V
    Reverse Voltage Vr Ir=10uA 5     V
    Luminous Intensty Iv If=10mA 120   180 mcd
    Spectrum With Of Half Value △λ If=10mA   20   nm
    Wavelength Dλ If=10mA 515   525 nm
    Ultra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument PanelUltra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument PanelUltra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument PanelUltra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument Panel

    Code:Ultra Bright Blue -BH

    Parameter Symbol Condition Min Typ Max Unit
    Forward Voltage Vf If=10mA 2.8   3.2 V
    Reverse Voltage Vr Ir=10uA 5     V
    Luminous Intensty Iv If=10mA 120   140 mcd
    Spectrum With Of Half Value △λ If=10mA   20   nm
    Wavelength Dλ If=10mA 460   465 nm
    Ultra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument PanelUltra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument PanelUltra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument PanelUltra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument Panel

  • Code:Ultra Bright White -WH

  • Parameter Symbol Condition Min Typ Max Unit
    Forward Voltage Vf If=10mA 2.8   3.2 V
    Reverse Voltage Vr Ir=10uA 5     V
    Luminous Intensty Iv If=10mA 120   140 mcd
    LED color Temperature K If=10mA 5500 20 6800 K
    Chromaticity Coordinates X/Y If=10mA 0.29,0.32   0.30,0.33 nm
    Ultra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument PanelUltra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument PanelUltra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument PanelUltra Bright White 4 Digit 0.4inch 7 Common Cathode Segment LED Display for Instrument Panel

  • High luminous intensity and reliability

  • High efficiency

  • Low power consumption

  • Extremely low current

  • Luminous evenly distributed on each segment

  • Stable performance

  • Long lifespan

  • Easy assembly

  • IC Compatible

  • Meet RoHS Compliant

  • APPLICATION:

  • Widely used in set-top boxes, home appliances and instrument panels, digital indicators,temperature humidity process controller, and so on .
