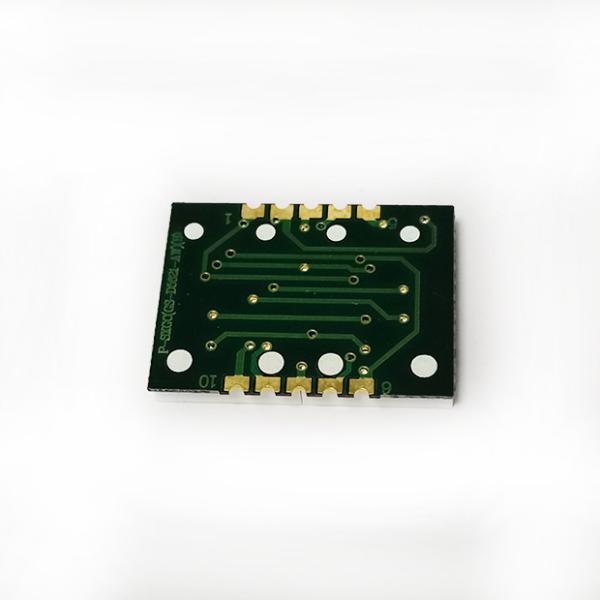

0.56 Inch SMD White 7 Segment Display 2 Digit Common Anode low power
0.56 Inch SMD White 7 Segment Display 2 Digit Common Anode low power
0.56 Inch SMD White 7 Segment Display 2 Digit Common Anode low power
0.56 Inch SMD White 7 Segment Display 2 Digit Common Anode low power
0.56 Inch SMD White 7 Segment Display 2 Digit Common Anode low power
0.56 Inch SMD White 7 Segment Display 2 Digit Common Anode low power
0.56 Inch SMD White 7 Segment Display 2 Digit Common Anode low power
0.56 Inch SMD White 7 Segment Display 2 Digit Common Anode low power
Specifications
Brand Name :
KERUN
Model Number :
KRS-SS5261AW
Certification :
RoHS/REACH/MSDS
Place of Origin :
Guangdong China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30000pcs/day
Delivery Time :
20~22 work days
Packaging Details :
Paper box，size：46*34*40（mm）
Luminous Color :
pure White
Surface :
Gray surface and white digit
Module Size :
25.0*19.0*3.85（mm）
Electricity :
Common anode
Name :
white 7 segment display
size :
0.56 inch 2 digit
Description

0.56 Inch SMD White 7 Segment Display 2 Digit Common Anode Low Power

Popular size 0.56 inch 2 digit SMD 7 segment LED display module

Product features:

1. High intensity and reliability

2. High quality, low power requirement

3. IC compatible, easy assembly

Electrical/Optical Characteristics at Ta=25℃

Parameter

Symbol

Min

Typ

Max

Unit

Condition

Luminous intensity

Iv

18

19

20

mcd

If=20 mA

Peak Wavelength

λP

-　

-

-　

nm

If=20 mA

Dominant Wavelength

X

-　

0.3

-　

nm

If=20 mA

Y

-

0.3

-　

nm

If=20 mA

Forward Voltage

VF

2.8

2.9

3.2

V

If=20 mA

Reverse Current

IR

-　

-　

100

μV

VR=6 V

Absolute Maximum Ratings at Ta= 25℃

Parameter

symbol

Maximum rating

unit

Power Dissipation

Pd

65

mW

Forward Current

IF

20

mA

Peak Forward Current

IF(Peak)

120

mA

Reverse Voltage

VR

6

V

Operating Temperature

Topr

-40℃ +80℃

　

Storage Temperature

Tstg

-40℃ +80℃,RH:25%~65%, within 3 months

　

Lead Solder Temperature

Tsol

260℃ for 5 seconds

　

FAQ
Q1: Can I get a sample order?

A1: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.

Q2: How long to get a sample and the lead time for mass production?

A2: Normall samples lead time is 3~5 days; mass production lead time is 15~30 working days.
