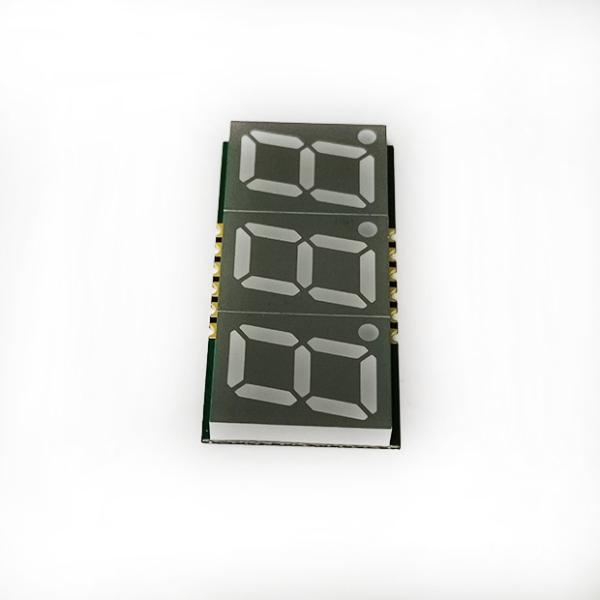

0.56 Inch 3 Digit SMD Blue 7 Segment Display Common Anode LED Digital Display
0.56 Inch 3 Digit SMD Blue 7 Segment Display Common Anode LED Digital Display
0.56 Inch 3 Digit SMD Blue 7 Segment Display Common Anode LED Digital Display
0.56 Inch 3 Digit SMD Blue 7 Segment Display Common Anode LED Digital Display
0.56 Inch 3 Digit SMD Blue 7 Segment Display Common Anode LED Digital Display
0.56 Inch 3 Digit SMD Blue 7 Segment Display Common Anode LED Digital Display
Specifications
Brand Name :
KERUN
Model Number :
KRS-SS5360AB
Certification :
RoHS/REACH/MSDS
Place of Origin :
Guangdong China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30000pcs/day
Delivery Time :
20~22 work days
Packaging Details :
Paper box，size：46*34*40（mm）
Luminous Color :
pure blue
Surface :
Gray surface and white digit
Module Size :
37.8*19.0*3.85（mm）
Electricity :
Common anode
Name :
Blue 7 Segment Display
size :
0.56 Inch
Description

0.56 Inch 3 Digit SMD Blue 7 Segment Display Common Anode LED Digital Display

Common usage 0.56 inch 3 digit SMD 7 segment blue color LED display module

Application:

1. Consumer “White Goods”:Displays for washing machine digital panels, cookers, freezers and dishwashers

2. Medical Equipment,Hospital monitoring systems

3. Transportation

4. Displays, radar detectors, avionics displays

Optical Characteristics

Absolute Maximum Ratings at Ta= 25℃

Parameter

symbol

Maximum rating

unit

Power Dissipation

Pd

50

mW

Forward Current

IF

20

mA

Peak Forward Current

IF(Peak)

100

mA

Reverse Voltage

VR

5

V

Operating Temperature

Topr

-40℃ +80℃

　

Storage Temperature

Tstg

-40℃ +80℃,RH:25%~65%, within 3 months

　

Lead Solder Temperature

Tsol

260℃ for 5 seconds

　

Electrical/Optical Characteristics at Ta=25℃

Parameter

Symbol

Min

Typ

Max

Unit

Condition

Luminous lntensity

Iv

--

25

--

mcd

If=20 mA

Peak Wavelength

λP

-　

-

-　

nm

If=20 mA

Dominant Wavelength

λd

470

476

480　

nm

If=20 mA

Spectral Line Half-Width

△λ

--　

30

--　

nm

If=20 mA

Forward Voltage

VF

--

3.2

3.8

V

If=20 mA

Reverse Current

IR

-　

-　

50

μV

VR=6 V

FAQ
Q1: Can I get a sample order?

A1: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.

Q2: How long to get a sample and the lead time for mass production?

A2: Normall samples lead time is 3~5 days; mass production lead time is 15~30 working days.

Q3: How to proceed the order if I have logo to print?

A3: First, Artwork for visual confirmation, and next is Sample picture or sending sample to you for confirmation, finally we will go to mass production.

Q4: Do you offer guarantee for the products?

A4: Yes, we offer one year guarantee for the products.
