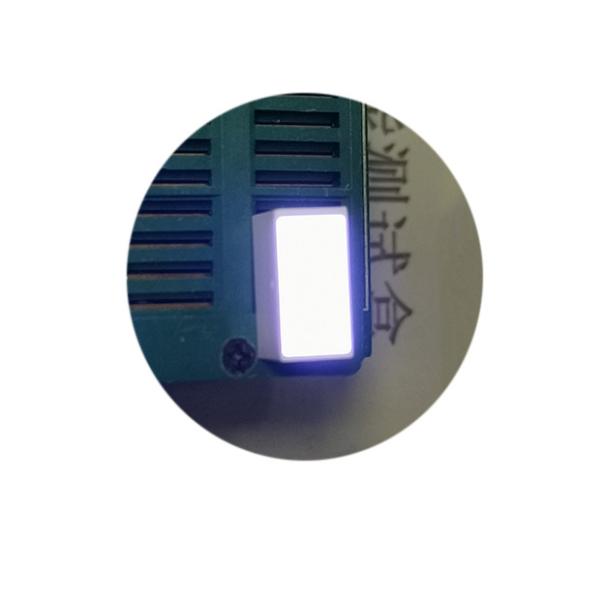

Micro Size 12x6mm 1 Segment LED Bar Graph Display Module Single Color
Micro Size 12x6mm 1 Segment LED Bar Graph Display Module Single Color
Micro Size 12x6mm 1 Segment LED Bar Graph Display Module Single Color
Micro Size 12x6mm 1 Segment LED Bar Graph Display Module Single Color
Micro Size 12x6mm 1 Segment LED Bar Graph Display Module Single Color
Micro Size 12x6mm 1 Segment LED Bar Graph Display Module Single Color
Micro Size 12x6mm 1 Segment LED Bar Graph Display Module Single Color
Micro Size 12x6mm 1 Segment LED Bar Graph Display Module Single Color
Specifications
Brand Name :
KERUN
Model Number :
KRP-1206W
Certification :
RoHS/REACH/MSDS
Place of Origin :
Guangdong China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000pcs per day
Delivery Time :
20~25 work days
Packaging Details :
Paper box，size：46*34*40（mm）
Luminous Color :
White
Size :
12.0*6.0*7.0(mm)
Display function :
button
Electricity :
Common Cathode
PIN quantity :
2 PIN
Name :
LED Bar Graph Display
Description

Micro size 12mmx6mm one segment single color LED bar graph display module specification details

(1)Package Dimension and internal circuit.

Micro Size 12x6mm 1 Segment LED Bar Graph Display Module Single Color

(2)Electricity Parameter

Electrical/Optical Characteristics at Ta=25℃

Parameter

Symbol

Min

Typ

Max

Unit

Condition

Luminous intensity

Iv

18

19

20

mcd

If=20 mA

Peak Wavelength

λP

-　

-

-　

nm

If=20 mA

Chroma Coordinate

X

0.24

0.28

0.34

nm

If=20 mA

Y

0.22

0.26

0.33

nm

If=20 mA

Forward Voltage

VF

2.8

2.9

3.2

V

If=20 mA

Reverse Current

IR

-　

-　

10

μA

VR=6 V

Absolute Maximum Ratings at Ta= 25℃

Parameter

symbol

Maximum rating

unit

Power Dissipation

Pd

60

mW

Forward Current

IF

20

mA

Peak Forward Current

IF(Peak)

80

mA

Reverse Voltage

VR

5

V

Operating Temperature

Topr

-40℃ +80℃

　

Storage Temperature

Tstg

-40℃ +80℃,RH:25%~65%, within 3 months

　

Lead Solder Temperature

Tsol

260℃ for 5 seconds

　

(3)Product characteristic

Lower working voltage and current
Lighting answering Time <0.1μs, better high frequency, chromaticity uniformity, high brightness.
Smaller volume, lighter weight, better impact resistance, solid sealing, good steady.
Long life for 50,000 hours.
Keep scaning and drivering every segment continuously.
Better showeffect and wider visual angle.
Recommend constant current driver.
Protective coating, and rip off when using.
Solder temperature: 260℃,and stay time less than 5 seconds.

(4)Application

All kinds off household appliances, Such As Aircondition,Refrigerator,Washing Machine.
