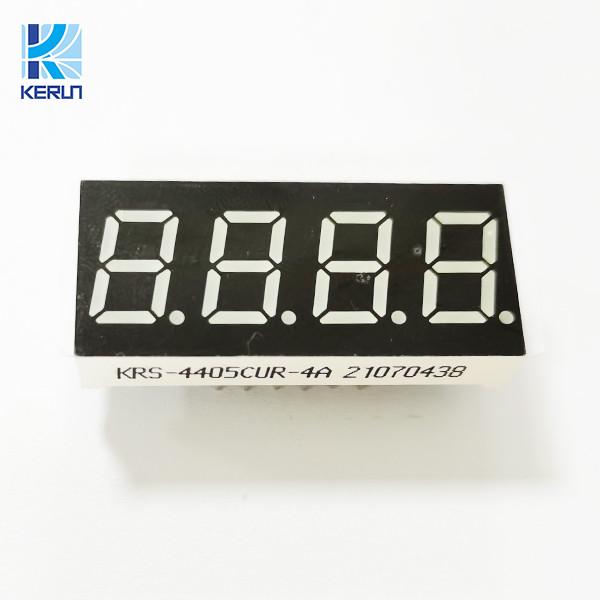

0.4 Inch 4 Digit 7 Segment LED Digital Displays For Weighing Machine
0.4 Inch 4 Digit 7 Segment LED Digital Displays For Weighing Machine
0.4 Inch 4 Digit 7 Segment LED Digital Displays For Weighing Machine
0.4 Inch 4 Digit 7 Segment LED Digital Displays For Weighing Machine
0.4 Inch 4 Digit 7 Segment LED Digital Displays For Weighing Machine
0.4 Inch 4 Digit 7 Segment LED Digital Displays For Weighing Machine
Specifications
Brand Name :
KeRun
Model Number :
KRS-4405CUR-4A
Certification :
ROHS,SGS,REACH
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
10000pcs/day
Delivery Time :
20-25 working days, can negotiate based on order quantity
Packaging Details :
Inner package: Thin plastic film surround the products to protect it from scratching and water. Outer package: Internationally standard K3 K5 layers corrugated cartons. Packaging materials: EPE
Name :
0.4 Inch 4 Digit 7 Segment LED Digtal Displays For Weighing Machine
Segment color :
white or same as emitting color
Digit number :
Four digit
Surface Color :
Black or Grey color
Emitting color :
Red
Polarity :
Common anode or cathode
Application :
For Weighing Machine
Led chip :
AlGanlp
Usage :
Indoor
Display function :
Graphics
Description

0.4 Inch 4 Digit 7 Segment LED Digtal Displays For Weighing Machine

Product Features:

1) Low consumption ,working under low voltage and current .
2) High brightness ,short response time, high frequency.
3) Small size, lightweight, easy soldered ,great Impact resistance.
4) Solid state encapsulation, good stability .
5) Long life ,more than 50,000 hours .
6) Great display effect ,big viewing angle.

0.4 Inch 4 Digit 7 Segment LED Digital Displays For Weighing Machine0.4 Inch 4 Digit 7 Segment LED Digital Displays For Weighing Machine

GENERAL INFORMATION
Part NO. Chip Material Emmting Color Lens Type Description
KRS-4405CUR-4A InGaN Red diffuse common Cathode
Electical/Optical Characteristics atTa=25℃
Parameter Symbol Blue Unit Conditions
MN. Typ M
Luminous Intensity lv 30 50 mcd F-20mA
Peak Wavelength Ap 一 nm IF-20mA
Dominant Wavelength AD 630 635 nm IF-20mA
Spectral Line Half Width AA 30 一 nm F-20mA
Forward Voltage VF 1.6 一 2.5 V F-20mA
Reverse Current IR 30 uA Ve-eV
Absolute Maximum Ratings atTa=25C
Parameter Symbol Maximum Rating Unit
Power Dssipation Pd 70 mW
Forward Current IF 20 mA
Peak Forward Current IF(Peak) 80 mA
Reverse Voltage VR 6 V
Operating Temperature To pr -20*c-80°c
Storage Temperature Tstg -20℃-80℃RH:25%-65%
LeadS older Temperature Tsol 260c for 5 seconds

1. We can supply you all kinds of 7 segment LED display:

--- Digit size: from 0.25" to 30"

--- Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14, 16 segment are all available

3. Available Emitting color: Super green,Super red, Yellow green, Pure green, Yellow, Blue, White, RGB and bi-color

4. Available surface color: black,grey


5. Lens color: white or same as emitting color

0.4 Inch 4 Digit 7 Segment LED Digital Displays For Weighing Machine

Application for Standard LED Digital Displays

Industrial Equipment

· Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems

Networking

· Telecommunication equipment, answering machines, telephones, base stations, PBX modems, network cards

Outdoor Signs

· Petrol pump meters

Consumer

· Audio/video equipment, audio mixers, set top boxes, amplifiers, musical instruments, gaming machines, currency/coin counters, security systems

Consumer “White Goods”

· Displays for washing machine digital panels, cookers, freezers and dishwashers

Medical Equipment

· Hospital monitoring systems

Transportation

· Displays, radar detectors, avionics displays

Computers and Peripherals

· CPU speed indicator, printer front panels, fax machines, copy machines, power supply equipment, cash registers
