Specifications
Brand Name :
EGL
Model Number :
Geophone 28Hz Horizontal​
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 sets
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
10000sets/month
Delivery Time :
5-8 work days
Packaging Details :
Carton
Natural Frequency :
28Hz±5%
Geophone Case :
Horizontal​ Waterproof Land Case
Spike :
75mm
Lead-in Cable :
1 M
Cable O.D :
4.6mm
Connector Type :
Split Spring connector
Price :
Negotiable
Description

Seismic Geophone 28Hz Horizontal​ terminated with Split Spring connector

Type Single Geophone 28Hz
Geophone Direction Vertical Direction / Horizontal Direction
Geophone Type 28Hz
Geophone Case Waterproof Land Case
Spike Steel Spike length75mm
Lead-in

Standard:1mlead-in with O.D.4.6mm

Custom Outer Diameter / Lead Distance available
Connector Type

*Mueller Clips

*Split Spring Clip

*KCK Connector( Male or Female / Push Fit or Lock Ring Type)

*Kooter Connector( Male or Female /KCL male or KCL female or KC2L-4 Dual )

*Other Connector Type available

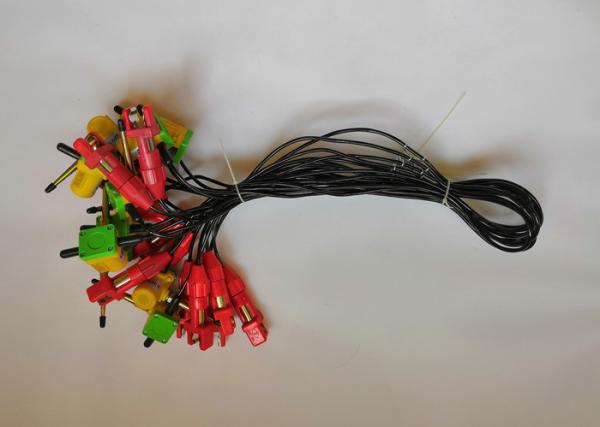

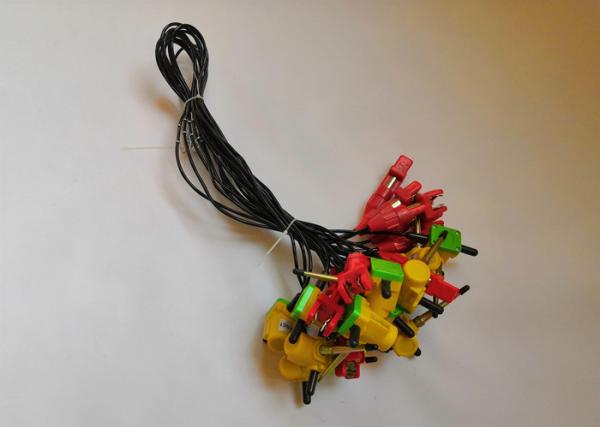

Single geophone 28Hz Horizontal​ in land case with spike 75mm, with 1m leader cable,terminated with Split Spring connector.

High Technology Geophone 28Hz Stable Performance ISO9001 Certification

Type EG-28-II
Natural Frequency ( Hz ) 28Hz ± 5%
Coil resistance(Ω) 385 ± 5%
Open Circuit Damping 0.6± 5%
Damping With Shunt Resistor 0.634 ± 5%
Open Circuit Intrinsic Voltage Sensitivity ( v/m/s ) 31.0 v/m/s ± 5%
Sensitivity With Shunt Resistor ( v/m/s ) 29.5 v/m/s ± 5%
Damping Calibration-Shunt Resistance(Ω) 7500Ω
Harmonic distortion ( % ) ＜0.2%
Typical Spurious Frequency (Hz ) ≧300Hz
Moving Mass ( g ) 10.2g
Typical case to coil motion p-p ( mm ) 1.6mm
Allowable Tilt ≦20º
Operating Temperature Range ( ℃ ) -40℃ TO +100℃
Height ( mm ) 32mm
Diameter ( mm ) 26mm
Weight ( g ) 80g
Warranty Period 3 years
