Accurate SM6 Geophone Seismic Sensor Wide Frequency Response Range
Accurate SM6 Geophone Seismic Sensor Wide Frequency Response Range
Accurate SM6 Geophone Seismic Sensor Wide Frequency Response Range
Accurate SM6 Geophone Seismic Sensor Wide Frequency Response Range
Specifications
Brand Name :
EGL
Model Number :
EG-4.5-II (SM 6)
Place of Origin :
China
MOQ :
1 PCS
Payment Terms :
T/T, Western Union, L/C,Paypal
Supply Ability :
10000pcs/month
Packaging Details :
Carton
Delivery Time :
5-8 work days
Price :
Negotiable
Natural Frequency :
4.5Hz±10%
Coil resistance :
375Ω±5%
Open circuit intrinsic voltage sensitivity :
28.8 v/m/s ±5%
Moving Mass :
11.3g
Operating Temperature Range :
-40℃ TO +100℃
Warranty Period :
3years
Description

Geophone Element 4.5Hz Vertical / Horizontal

Features:

The geophone 4.5hz (EG-4.5-II) is a conventional type of moving coil geophone with small error in working parameters and stable and reliable performance. The structure is reasonable in design, small in size and light in weight, and is suitable for seismic exploration of strata and geological environments of different depths.

Data sheets of geophone 4.5Hz:

Type EG-4.5-II
Natural Frequency ( Hz ) 4.5±10%
Coil resistance(Ω) 375±5%
Damping 0.6±5%
Open circuit intrinsic voltage sensitivity ( v/m/s ) 28.8 v/m/s ±5%
Harmonic distortion ( % ) ≦0.2%
Typical Spurious Frequency (Hz ) ≧150Hz
Moving Mass ( g ) 11.3g
Typical case to coil motion p-p ( mm ) 4mm
Allowable Tilt ≦20º
Operating Temperature Range ( ℃ ) -40℃ TO +100℃
Height ( mm ) 36mm
Diameter ( mm ) 25.4mm
Weight ( g ) 86g
Warranty Period 3years

All parameters specified here in are rated at a temperature 20℃±2℃ .

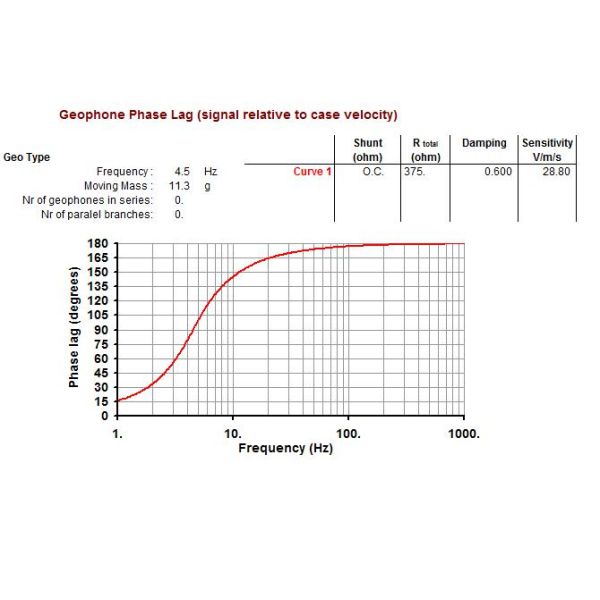

Response Curves for EG-4.5-II Geophone Element:

Accurate SM6 Geophone Seismic Sensor Wide Frequency Response Range

Accurate SM6 Geophone Seismic Sensor Wide Frequency Response Range

Accurate SM6 Geophone Seismic Sensor Wide Frequency Response Range

Accurate SM6 Geophone Seismic Sensor Wide Frequency Response Range

Accurate SM6 Geophone Seismic Sensor Wide Frequency Response Range

Shipment DHL ,UPS , FedEx , By Air , By Sea
By Express By Air By Sea
Suitable for under 50kgs
Fast 5 - 7 work days
High cost
Door to door service
Easy to pick up the goods		 Suitable for more than 50kgs Fast 5 - 7 work days
High cost
Airport to Airport
Professional broker needed		 Suitable for more than 500kgs Slow 20 - 35 days
Low cost
Port to Port
Professional broker needed
MOQ 1 set
Advantage Fast shipping
Package Packed by carton
Payment Bank Transfer, Paypal, Western Union, Alibaba Pay
WhatsApp +86 13991313681
Wechat +86 13991313681
