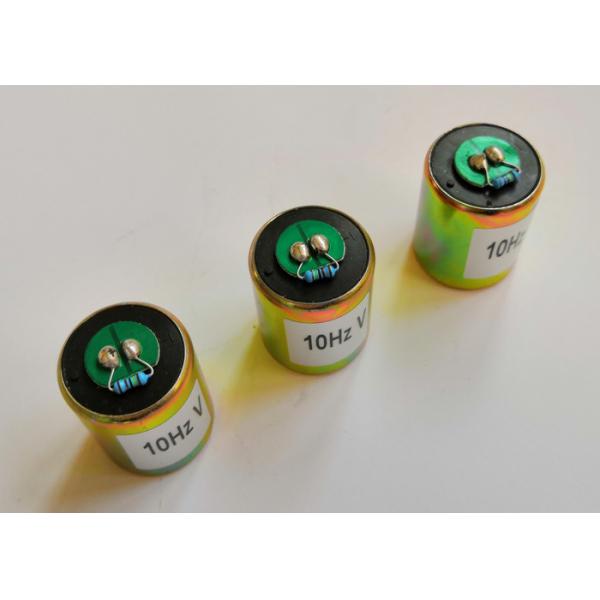

Vertical 10Hz Geophone Seismic Sensor Anti Interference Seismic Exploration
Vertical 10Hz Geophone Seismic Sensor Anti Interference Seismic Exploration
Specifications
Brand Name :
EGL
Model Number :
GS-32CT Geophone 10Hz
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
Western Union, T/T,PayPal
Supply Ability :
10000pcs/month
Delivery Time :
5-8 work days
Packaging Details :
Carton
Name :
Geophone Seismic Sensor
Natural Frequency ( Hz ) :
10Hz ± 2.5%
Coil resistance（Ω） :
395Ω ± 2.5%
Open Circuit Damping :
0.316 ± 2.5%
Damping With Shunt Resistor :
0.7 ± 2.5%
Open Circuit Intrinsic Voltage Sensitivity( v/m/s ) :
27.5 v/m/s ± 2.5%
Sensitivity With Shunt Resistor ( v/m/s ) :
19.7 v/m/s ± 2.5%
Damping Calibration-Shunt Resistance （Ω） :
1000Ω
Harmonic distortion( % ) :
＜0.1%
Typical Spurious Frequency (Hz ) :
＞250Hz
Moving Mass ( g ) :
11.2g
Typical case to coil motion p-p ( mm ) :
1.5mm
Allowable Tilt :
10º
Operating Temperature Range ( ℃ ) :
-40℃ TO +100℃
Usage :
Seismic Exploration
Description

Vertical 10Hz Geophone Seismic Sensor Anti Interference Seismic Exploration

Geophone Seismic Sensor has high false frequency and excellent anti-interference. The tolerance of each parameter is controlled within ±2.5%, the distortion is less than ≤0.1%, the performance is stable, the accuracy is high, and the signal is high. The collection is rich and accurate, and is suitable for all kinds of accurate seismic exploration. All parts are processed by precision machining, and the production process is mature and stable.

Geophone Seismic Sensor Parameters

Type EG-10-III (GS-32CT Geophone)
Natural Frequency ( Hz ) 10Hz ± 2.5%
Coil resistance(Ω) 395Ω ± 2.5%
Open Circuit Damping 0.316 ± 2.5%
Damping With Shunt Resistor 0.7 ± 2.5%
Open Circuit Intrinsic Voltage Sensitivity( v/m/s ) 27.5 v/m/s ± 2.5%
Sensitivity With Shunt Resistor ( v/m/s ) 19.7 v/m/s ± 2.5%
Damping Calibration-Shunt Resistance (Ω) 1000Ω
Harmonic distortion( % ) ＜0.1%
Typical Spurious Frequency (Hz ) ＞250Hz
Moving Mass ( g ) 11.2g
Typical case to coil motion p-p ( mm ) 1.5mm
Allowable Tilt 10º
Operating Temperature Range ( ℃ ) -40℃ TO +100℃
Height ( mm ) 33.5mm
Diameter ( mm ) 25.4mm
Weight ( g ) 86g
Warranty Period 3 years

Vertical 10Hz Geophone Seismic Sensor Anti Interference Seismic Exploration

Vertical 10Hz Geophone Seismic Sensor Anti Interference Seismic ExplorationVertical 10Hz Geophone Seismic Sensor Anti Interference Seismic ExplorationVertical 10Hz Geophone Seismic Sensor Anti Interference Seismic Exploration
